[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:

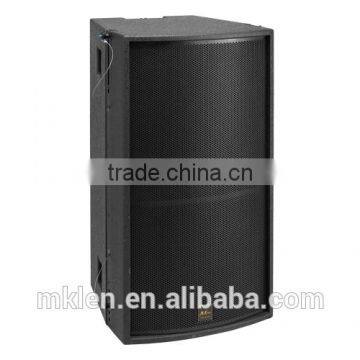

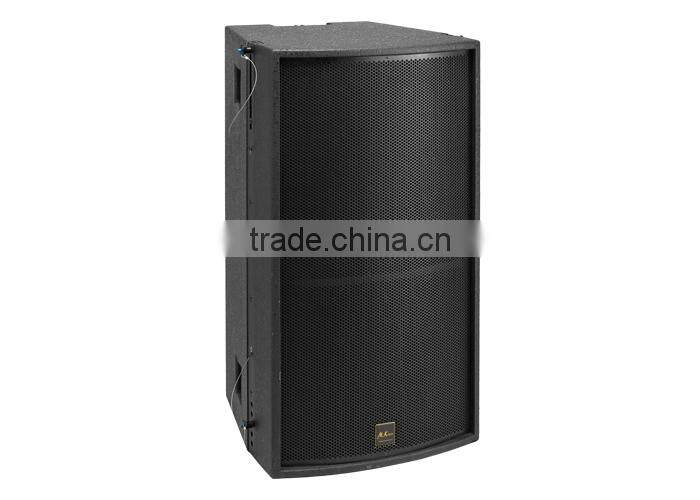

H3 loudspeaker descriptions:
1.Extermely versatile, the Wavefront W3+ is a unique, innovative full-range system.
2. It delilvers the clarity required for speech and music applications as well as the power, warmth and depth to generate an exciting living sound or playback experience in nightclubs.
H3 loudspeaker features:
1.High performance, passive 3-way full range system, 1 x 15''LF + 1 x 8''MF + 1 x 1.7''HF, 650W - 1300W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, easy to install and safely.
3. Best chioce for nightclubs, bars, Disco, theaters,church, concert halls, Band, stage performance, wedding, touring performance, etc.
H3 loudspeaker specifications:
| TYPE | Compact bi-amplified two-way trapezoid |
| FREQUENCY RESPONSE | 55Hz-18kHz±3dB |
| DRIVERS | LF: 1 x 15″(380mm)/3″(75mm) voice coil, Ferrite HF: Voice coil HF driver size 1.7″(44mm), Neodymium |
| SENSITIVITY | LF:98dB, MF+HF:104dB |
| MAXIMUM SPL | 124dB continuous,130dB peak |
| NOMINAL IMPEDANCE | LF:8 ohms, MF+HF:8ohms |
| RATED POWER | LF:400W RMS,800W peak MF+HF:250W RMS,500W peak |
| DISPERSION(-6 dB) | 80°horizntal,50°vertical |
| CONNECTORS | 2×Neutrik NL4 |
| DIMENSIONS (HxWxD) | 930x530x520mm |
| WEIGHT | 60kg |

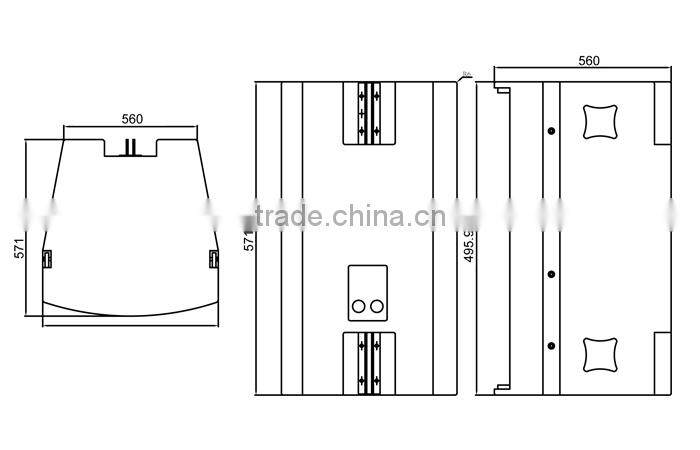

H3 loudspeaker box design:
H3 loudspeaker driver configuration:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
