[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:

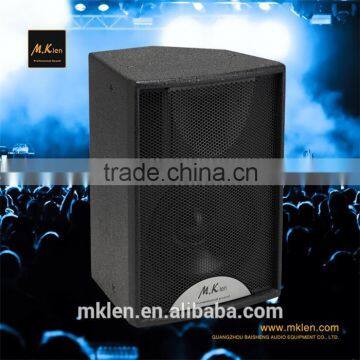

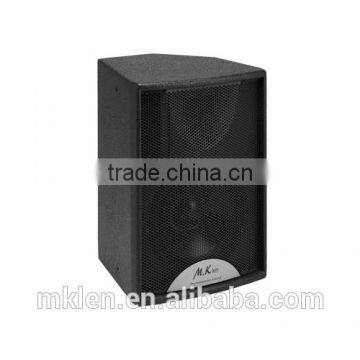

WF-10 loudspeaker descriptions:
1. The Blackline WF-10 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 10''(250mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 90° x 50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
WF-10 loudspeaker features:
1.Versatile, passive 2-way full range system, 1x10''LF + 1x1.4''HF, 250W - 500W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install and safely.
3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.
WF-10 loudspeaker specifications:
| TYPE | Compact, two-way passive |
| FREQUENCY | 65Hz-20kHz±3dB |
| DRIVERS | LF: 1x10″(250mm) 2"(50mm)voice coil LF driver, Ferrite HF: Voice coil HF driver size 1.4″(34mm), Ferrite |
| RATED POWER | 250W RMS, 500W peak |
| SENSITIVITY | 96dB |
| MAXIMUM SPL | 116dB contiuous, 123dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION (-6dB) | 90°horizontal, 50°vertical |
| CONNECTORS | 2×Neutrik NL4 |
| FITTINGS | 10×M8,4xM8 threaded inserts 1×mounting pole socket |
| Install Dim(HxWxD) | 500x350x317mm |
| WEIHT | 17kg |

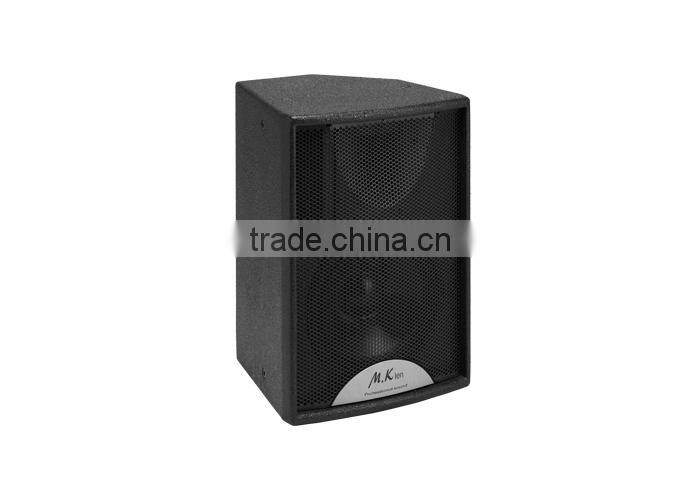

WF-10 loudspeaker box design:
WF-10 loudspeaker driver configuration:

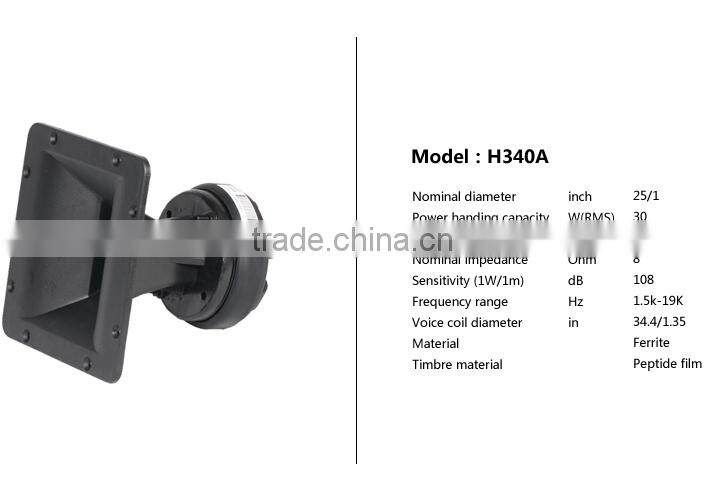

HF:

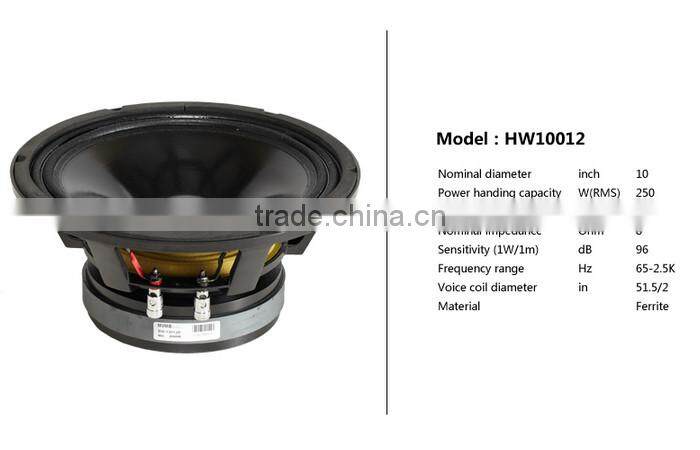

LF:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
