[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:
WF-12 loudspeaker descriptions:

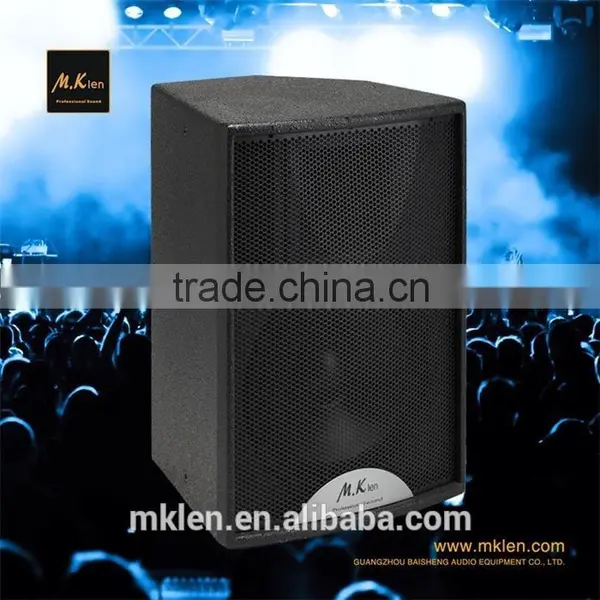

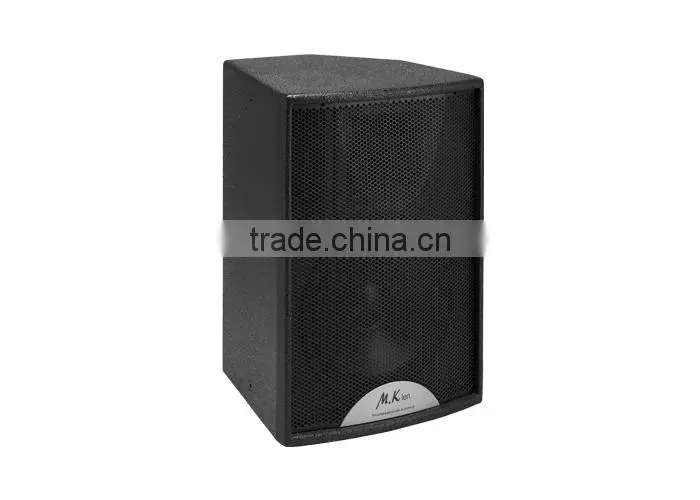

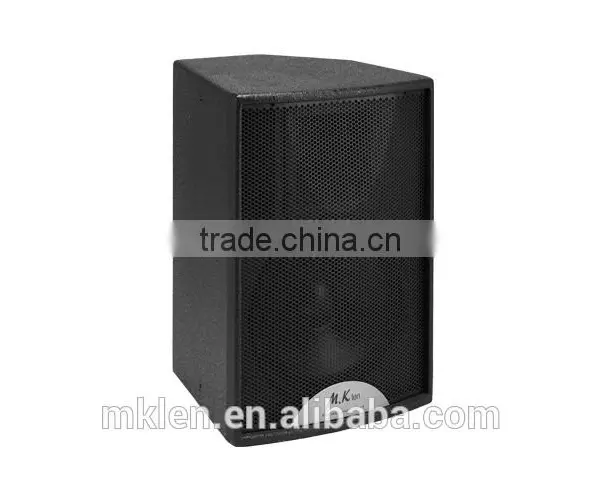

1. The Blackline WF-12 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 12''(300mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a rotatable 80° x 50° constant directivity HF horn.
3. It is the ideal chioce for full-range applications calling for an efficient, reliable workhorse that is equally suitable for fixed installations and quick mobile operations.
WF-12 loudspeaker features:
1.Versatile, passive 2-way full range system, 1x12''LF + 1x1.7''HF, 300W - 600W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install and safely.
3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.
WF-12 loudspeaker specifications:
| TYPE | Compact, two-way passive |
| FREQUENCY | 60Hz-18kHz±3dB |
| DRIVERS |
LF: 1x12″(300mm) 2.5"(65mm)voice coil bass driver, Ferrite HF: Voice coil HF driver size 1.7″(44mm), Ferrite |
| RATED POWER | 300W RMS,600W peak |
| SENSITIVITY | 97dB/w/m |
| MAXIMUM SPL | 120dB contiuous, 126dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION (-6dB) | 80°horizontal, 50°vertical |
| CONNECTORS | 2×Neutrik NL4 |
| FITTINGS |
12×M8 threaded inserts 1×mounting pole socket |
| Install Dim(HxWxD) | 572x396x363 mm |
| WEIHT | 22kg |
WF-12 loudspeaker box design:

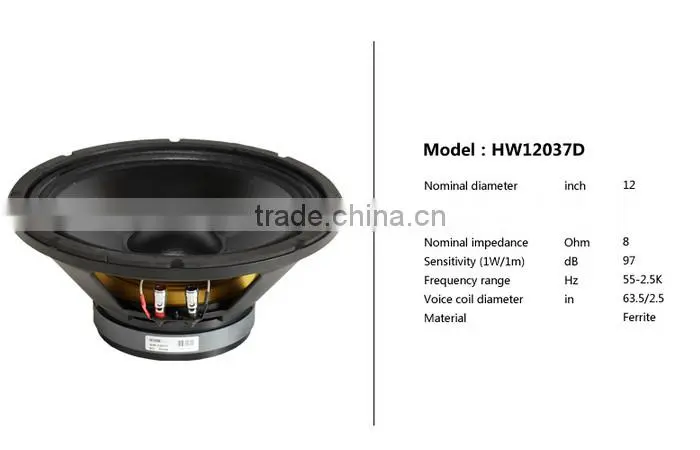

WF-12 louspeaker driver configuration:

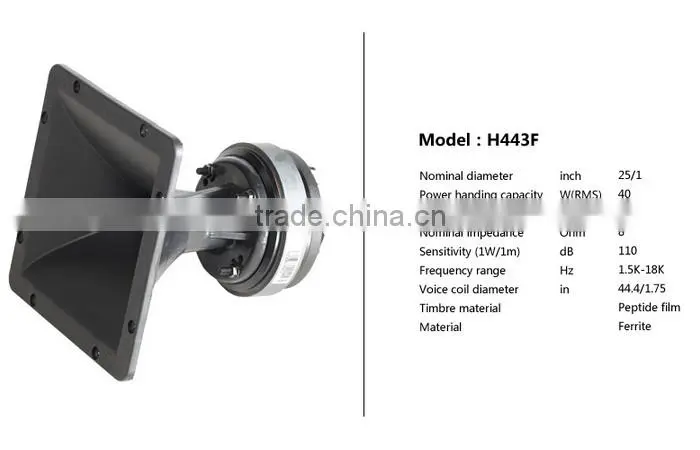

HF:
HF:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
