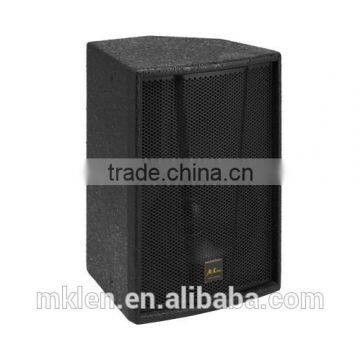

F8+, martin audio, 8 inch passive 2-way full range loudspeaker, pro audio

FOB Price

USD $139 - $169 / Piece

10 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Guangzhou
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	M.Klen
Model Number	F8+

Product Description

[ Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:

F8+ loudspeaker descriptions:

1. F8+ is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.

2. It features a powerful 8''(200mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 90° x 50° horn.

3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

F8+ loudspeaker features:

1.Versatile, passive 2-way full range system, 1x8''LF + 1x1.4''HF, 200W - 400W.

2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install and safely.

3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.

F8+ loudspeaker specifications:

TYPE	Compact, two-way passive
FREQUENCY RESPONSE	70Hz-20kHz±3dB
FREQUENCY RESPONSE	56Hz-20kHz±10dB
DRIVERS	LF: 1x8″(200mm) / 2."(50mm)voice coil bass driver, Ferrite HF: Voice coil HF driver size 1.4″(34mm), Ferrite
RATED POWER	200W RMS, 400W peak
SENSITIVITY	96dB/w/m
MAXIMUM SPL	116dB contiuous, 122dB peak
NOMINAL IMPEDANCE	8 ohms
CONNECTORS	2×Neutrik NL4
FITTINGS	8×M8 threaded inserts 1×mounting pole socket
Install Dim(HxWxD)	440x300x270mm
WEIGHT	13kg

F8+ loudspeaker box design:

F8+ loudspeaker driver configuration:

HF:

LF:

Our Services

♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.

♥ All the goods are inspected before shipment, so we can ensure the best quality of products .

♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.

♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
