Insulation Materials Expandable Braided Sleeving for Power Line
ABOUT PRODUCT

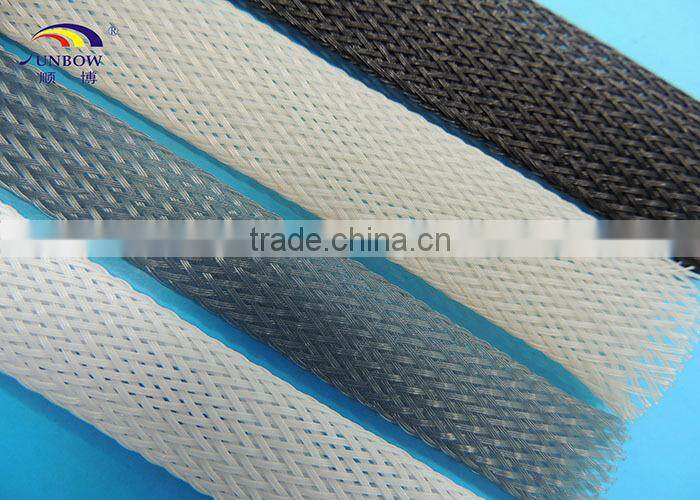

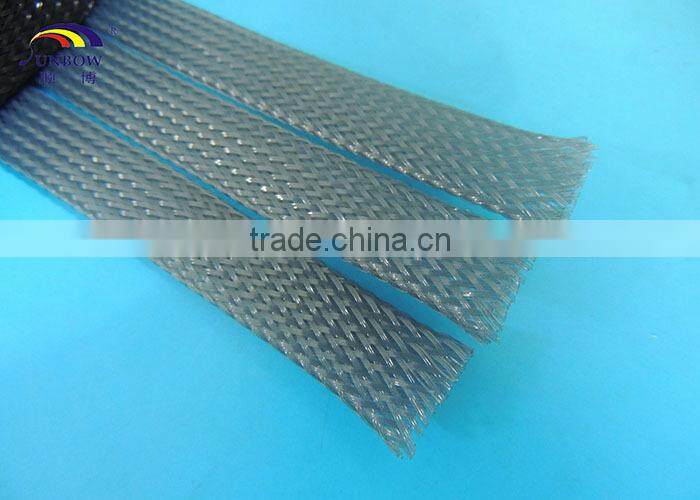

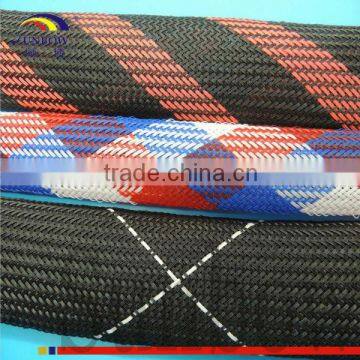

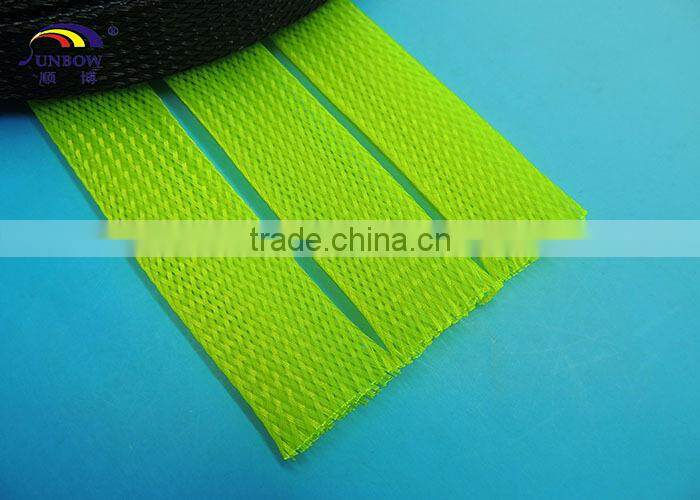

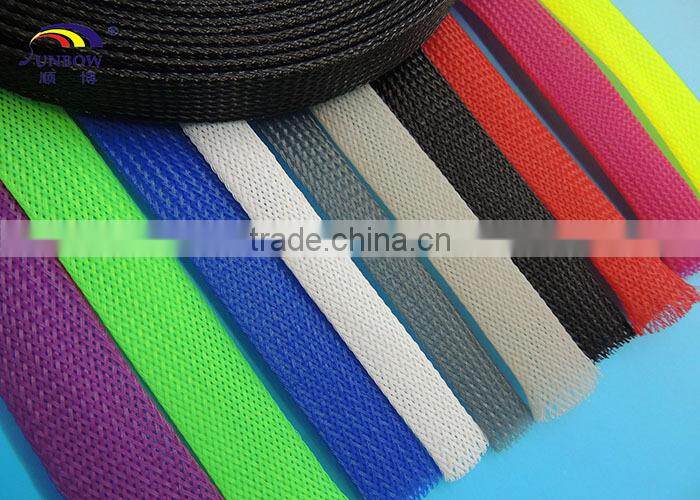

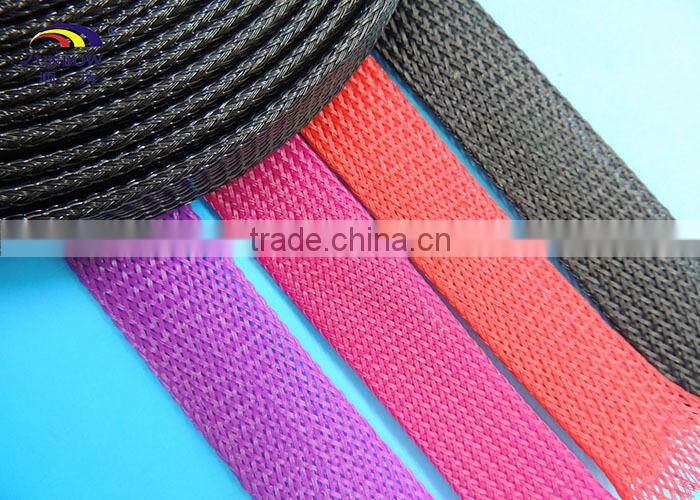

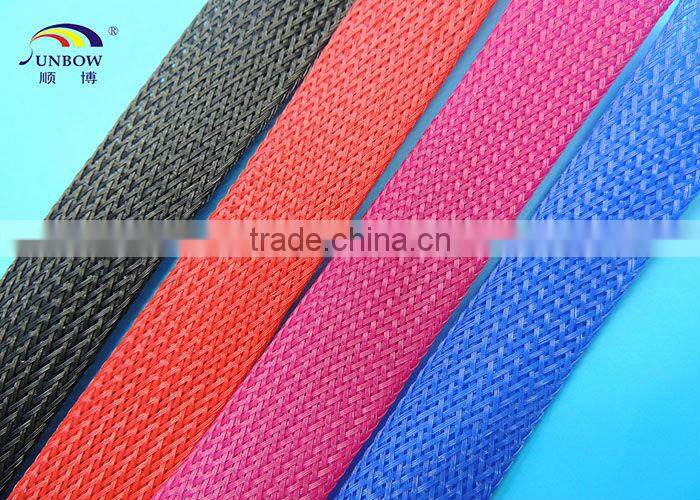

Insulation Materials Expandable Braided Sleeving for Power Line is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.
CHARACTERISTICS
1. high temperature resistant (working temperature: -50°c ~ 150°c)2. high melting point (250°c)3. high fire resistant performance4. flexible, abrasive resistance, thermal insulation
WORKING TEMPERATURE
-50°c ~ 150°c
SPECIFICATION
Part No. | Model No. | Min Width (mm) | Max Width(mm) | Part No. | Model No. | Min Width(mm) | Max Width (mm) |
24# | 120024 | 3 | 6 | 56# | 120056 | 8 | 16 |
125024 | 3 | 6 | 125056 | 8 | 16 | ||
320024 | 4 | 8 | 320056 | 10 | 20 | ||
325024 | 4 | 8 | 325056 | 10 | 20 | ||
32# | 120032 | 4 | 8 | 64# | 120064 | 9 | 18 |
125032 | 4 | 8 | 125064 | 9 | 18 | ||
320032 | 5 | 10 | 320064 | 12 | 24 | ||
325032 | 5 | 10 | 325064 | 12 | 24 | ||
36# | 120036 | 5 | 10 | 72# | 120072 | 10 | 12 |
125036 | 5 | 10 | 125072 | 10 | 12 | ||
320036 | 6 | 12 | 320072 | 15 | 30 | ||
325036 | 6 | 12 | 325072 | 15 | 30 | ||
40# | 120040 | 6 | 12 | 96# | 120096 | 12 | 24 |
125040 | 6 | 12 | 125096 | 12 | 24 | ||
320040 | 7 | 14 | 320096 | 20 | 40 | ||
325040 | 7 | 14 | 325096 | 25 | 50 | ||
48# | 120048 | 7 | 14 | 120# | 120120 | 15 | 30 |
125048 | 7 | 14 | 125120 | 15 | 30 | ||
320048 | 8 | 16 | 320120 | 30 | 70 | ||
325048 | 8 | 16 | 325120 | 35 | 100 |
WHERE IT IS USED
Insulation Materials Expandable Braided Sleeving for Power Line is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.
The selection of this product refers to following four parameters.
A- yarn number (one or three);
B- Diameter of single yarn (0.25mm or 0.20mm)
C- Strand number (48 spindles braiding machine or 72 spindles braiding machine) D- flat width(6mm or 18mm)
YOU CAN SEND YOUR DETAILED INQUIRY FOR FREE SAMPLES AND PLEASE CLICK "SEND" NOW!
