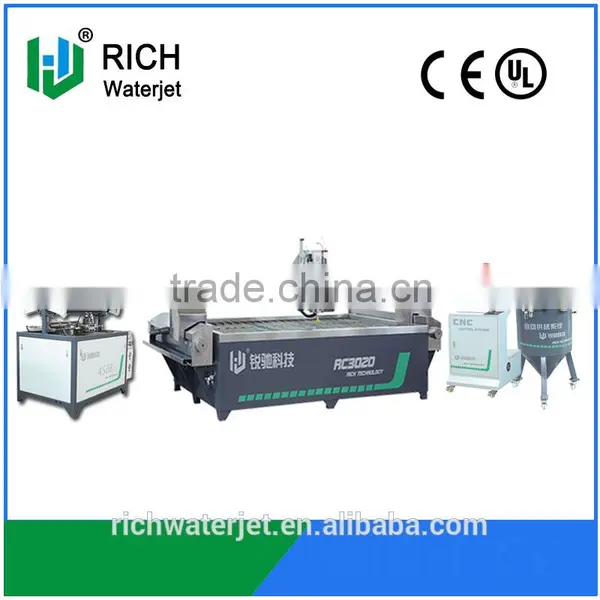

Stone waterjet cutting machine
Specification: complete set waterjet including 4 parts
1.(Bridge)Water jet cutting table
2.Intensifier pump
3.CNC controller
4.Automatic abrasive supply
Turbocharger parameters | |
Item |
Stone waterjet cutting machine |
Model |
450B |
Maximum pressure |
450Mpa |
Normal operating pressure |
350-380Mpa |
Main motor power |
37KW |
Oil pump |
Variable |
Cooling |
Water/Oil/Wind |
High-pressure cylinder |
Imported |
Inlet valve |
Imported |
Ceramic rod |
Imported |
Accumulator |
Single taper |
Power supply |
415/380/220V AC 3P |
Bridge feature:
1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.
2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.
3.A full range of cutting capacity, any plane curve cutting.
4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, the machine runs smoothly, cutting speed, high precision machining.
5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.
6.Cutting head is equipped with reliable pneumatic high-pressure water switch control device, improve production efficiency.
7.Unique sand valve design, simple structure,the flow of sand smooth, easy to repair.
8.All stainless steel protective cover, dustproof, waterproof, anti-rust, anti-corrosion, easy to use water to clean, maintain the cutting platform perennial burnished as new.
| Material | Stainless Steel | Plastic foam | Aluminum | Glass | Ceramic | Marble |
| Thickness(mm) | 60mm | 200mm | 120mm | 80mm | 80mm | 80mm |
1.Cutting table
2.Supercharger cabinet

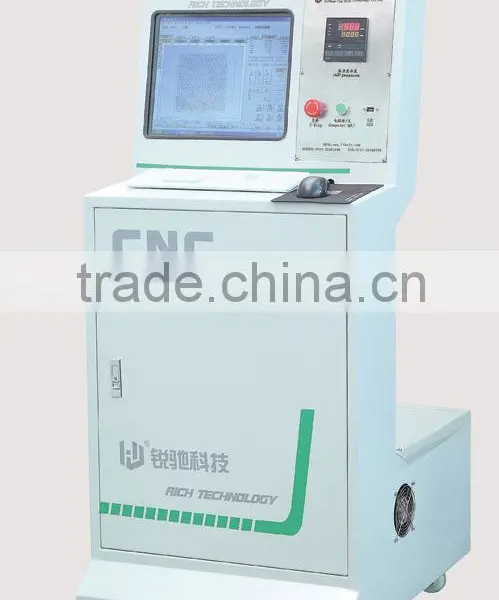

3.CNC controller

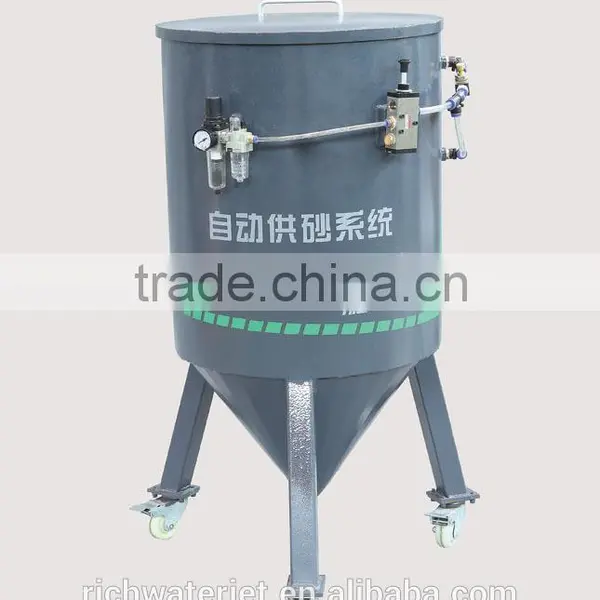

4.Automatic abrasive supply

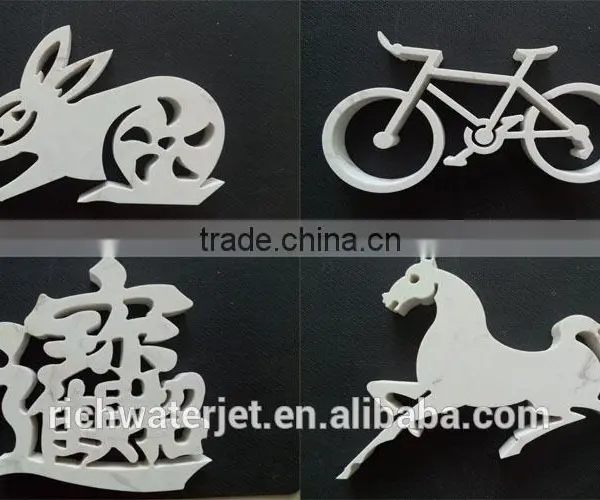

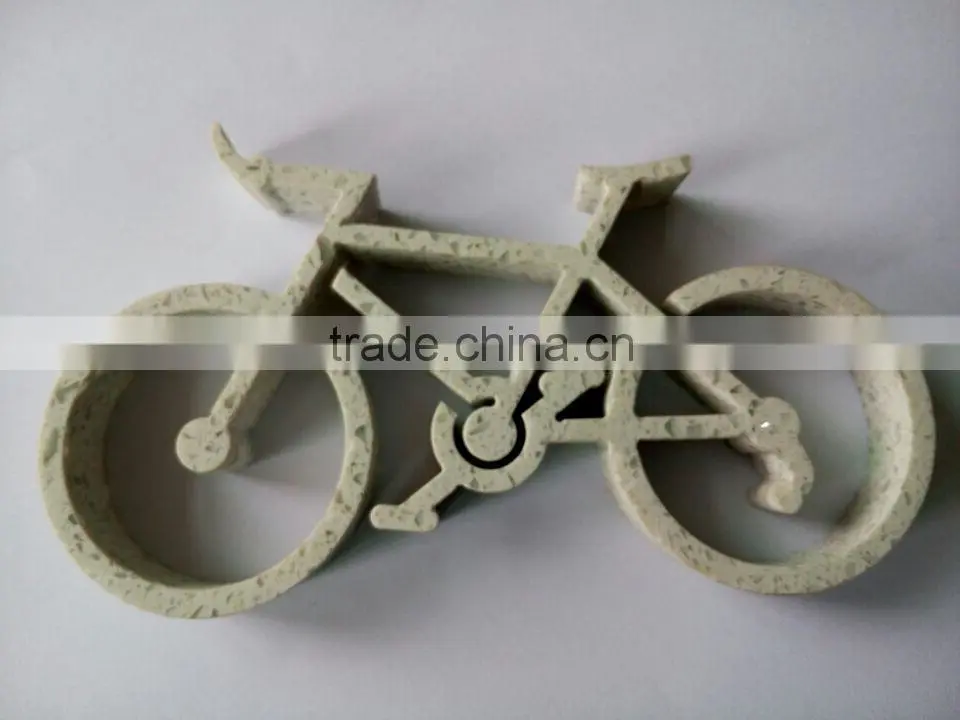

5.cutting sample
6.package and shipping
Foshan Rich Waterjet Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
1.Skype:kittywu12201
2.Phone:+86 13827785699
