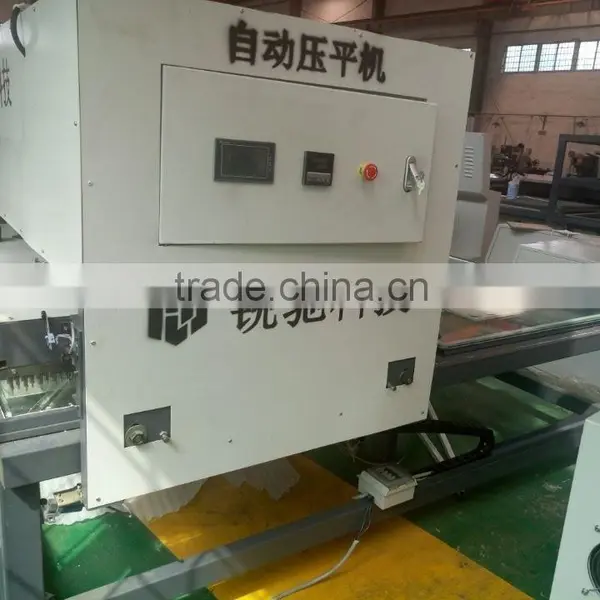

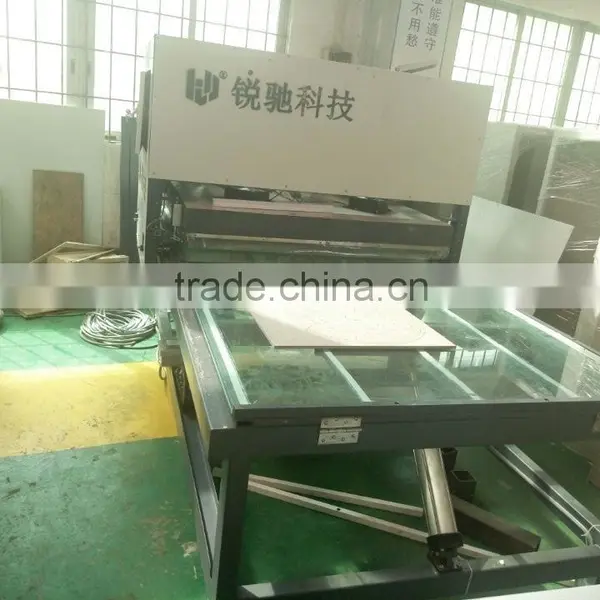

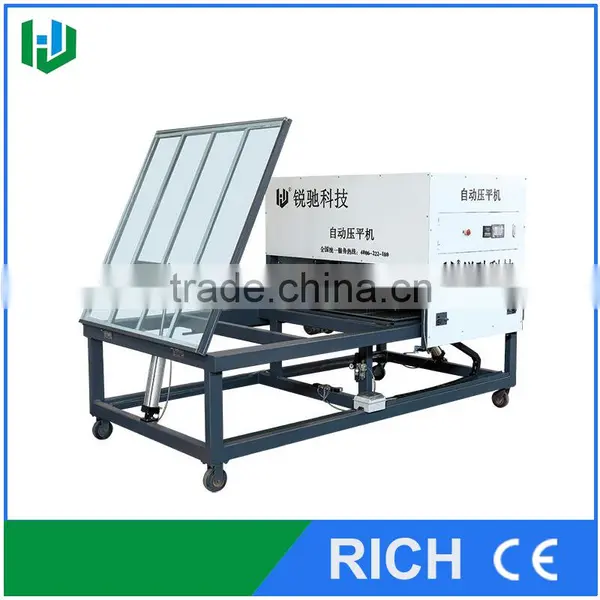

RICH automatic thimble flattening machine for ceramic / marble
Flattening machine is a special equipment, mainly used in stone and ceramic planishing after being inset.
Its principle is the use of tempered glass as a pressing plane, under the action of the hydraulic system,thousands of thimble pressed the back of material ,
so that the front of material reaches smothlye as flat glass.
| 1. Max working table size | 1000mm*1000mm (1000#) |
| 2. Max load capacity | 5 T |
| 3. Pressure plane moving speed | 2500mm/s |
| 4. Guide rod diameter and stroke | φ20×180mm |
| 5. Motor power | 0.37KW/380V |
| 6. Power speed | 1470r/min |
| 7. External dimension | 1200*2700*1700(1000#) |
| 1600mm*2700mm* 1700mm(1200#) | |
| 8. Net weight | 1000#:340KGS |
Advantage:
1.there is no need professional mosaic master, produced the product flatness, thus reducing labor costs, increase productivity, reduce labor intensity
2.Thimble and spring stroke can change automatically, the material level can vary 20MM, no dead angle pressing.
3.Simple operation, without having to learn.
4..Four lift guide rods parallel steady and operating platforms,When pressed up and down
5.Both left and right platform can lift, finished product easily take place.
6.Fine workmanship, long life, no wearing parts.
7.Comes with heating function, shorten the pressing time.
8.Pressing the left while the right do paste, thereby saving space.
Feature:
1. Adopting tempered glass as platform and thousands of screws as thimble, pressing process is accurate.
2. Using the hydraulic control system, combined with the limit switch,precise control of the intensity, stable performance
3. Use of gear transmission, flexible and smooth operation, low noise.
Overseas service is avaiable. Our engineers will help you about the installation.
The client can send two workers to our factory for 10 days free training every year.
Foshan RICH Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts.
We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine.
As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
Why choose RICH waterjet cutting machine?
1.we only specialized in waterjet cutting machine and waterjet spare parts, so that we can supply the spare parts with low price and good quality.
More than 70% water jet cutting machine factory in Guangdong purchase the spare parts from us.
2.We have focus on this line more than 9 years.
3.RICH is the first one manufacturer who develop the man-machine touch screen dialogue controller in China.
4.RICH waterjet is easy to operate and maintain.
5.Our professional after-sales team will help you solve the problem at first time.
