High speed waterjet metal cutting

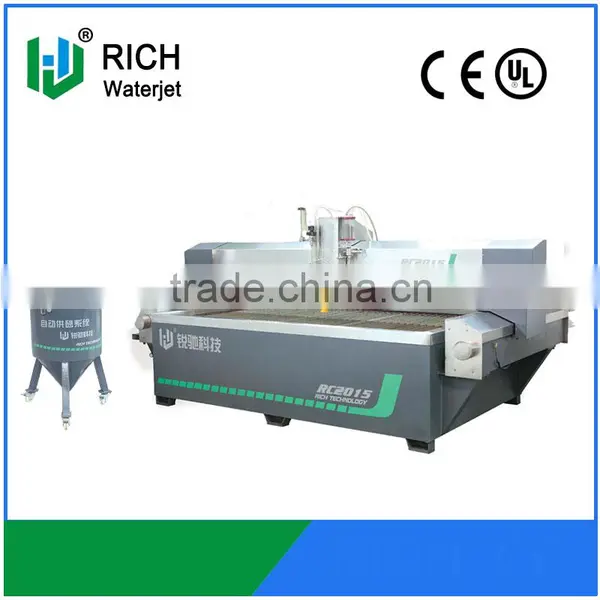

1.(Bridge)Water jet cutting table

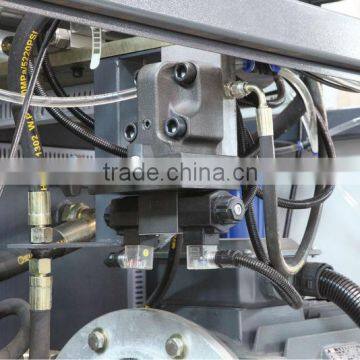

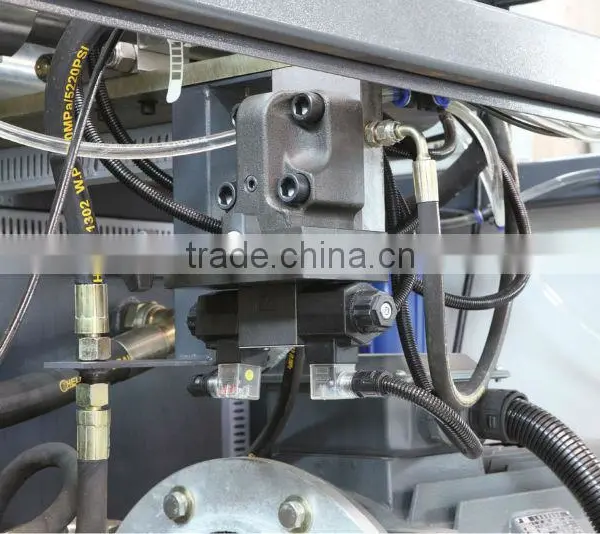

2.Intensifier pump

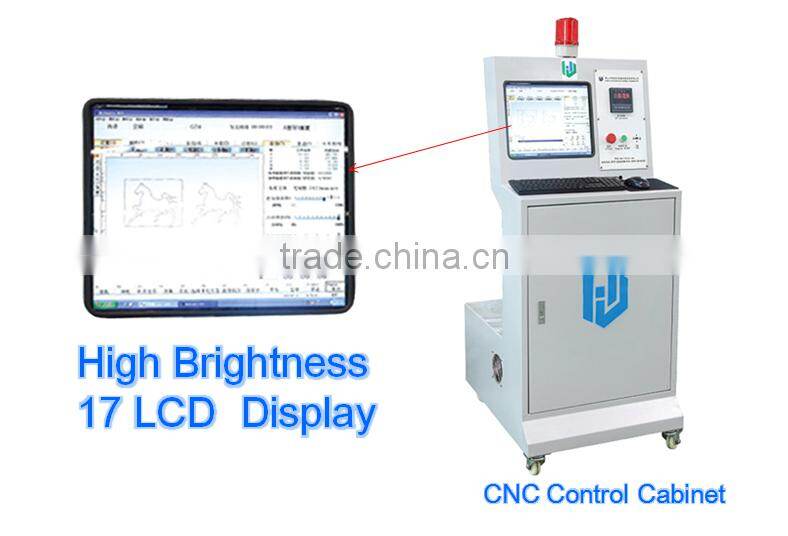

3.CNC controller
4.Automatic abrasive supply
Item | High speed waterjet metal cutting | |
Model | RC2015 | |
Structure | Bridge | |
Cutting table size | 2100*1600mm | |
Stroke | X-axis | 2000mm |
| Y-axis | 1500mm |
| Z-axis | 60-80mm |
CNC Controller | Step System / AC Servo System | |
Accuracy | ±0.1mm | |
Cutting | Repeatability | ±0.05mm |
| Traverse speed | 6500/15000 mm/min |
Power supply | 220V/380VAC,50Hz | |
Turbocharger parameters | |
Item | High speed waterjet metal cutting |
Model | 450B |
Maximum pressure | 450Mpa |
Normal operating pressure | 350-380Mpa |
Main motor power | 37KW |
Oil pump | Variable |
Cooling | Water/Wind/Oil |
High-pressure cylinder | Imported |
Inlet valve | Imported |
Ceramic rod | Imported |
Accumulator | Single taper |
Power supply | 415/380/220V AC 3P |
Bridge feature:
1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.
2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.
3.A full range of cutting capacity, any plane curve cutting.
4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, the machine runs smoothly, cutting speed, high precision machining.
5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.
6.Cutting head is equipped with reliable pneumatic high-pressure water switch control device, improve production efficiency.
7.Unique sand valve design, simple structure,the flow of sand smooth, easy to repair.
8.All stainless steel protective cover, dustproof, waterproof, anti-rust, anti-corrosion, easy to use water to clean, maintain the cutting platform perennial burnished as new.
| Material | Stainless Steel | Plastic foam | Aluminum | Glass | Ceramic | Marble |
| Thickness(mm) | 80mm | 300mm | 120mm | 120mm | 80mm | 80mm |
Foshan Rich Waterjet Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
A. Customize Design: Our cutting table size could be design as customers requirement.
B. Good Service: We provide the pre-training, best after sell service.
C. High Quality: Most of equipments are good material which ensures a long service life and we have a strict quality control system.
D. Profession on Export: Authorized import & export license, A professional oversea sell team to service our vip clients.
E. Fast & Cheap Delivery: We have long-term cooperation forwarder, who can deliver our equipment to every corner of the world with competitive freight.
F. Customer first, satisfying customers forever.
“RICH Quality, serve the world”, we are full of confidence, because in your support and cooperation, we will make our career be on the upgrade. Warmly welcome you to visit our company, service information, technical support, guidance and business negotiation.
1.Skype:kittywu12201
2.Phone:+86 13827785699
