Best selling water jet cutting machines prices
- 200 Set / Sets per Month
- Foshan
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RICH | Model Number: | RC2015 Bridge |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

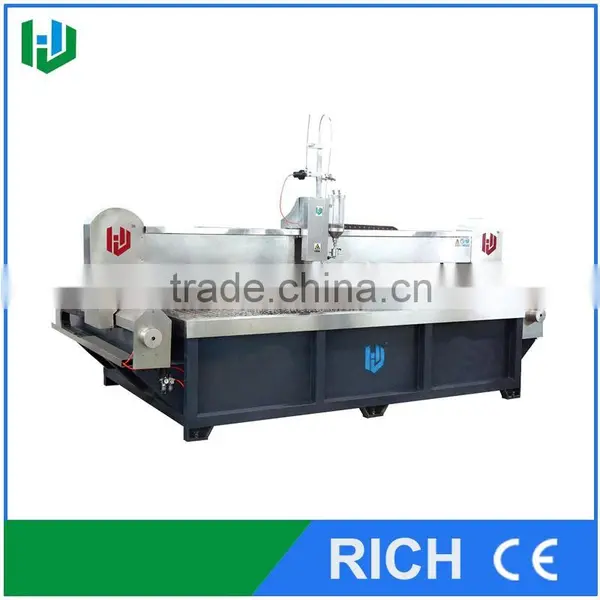

Best selling water jet cutting machines prices
Specification:
1.(Bridge)Water jet cutting working table
2.Intensifier made in usa
3.Yaskawa servo control
4.Waterjet cutting head

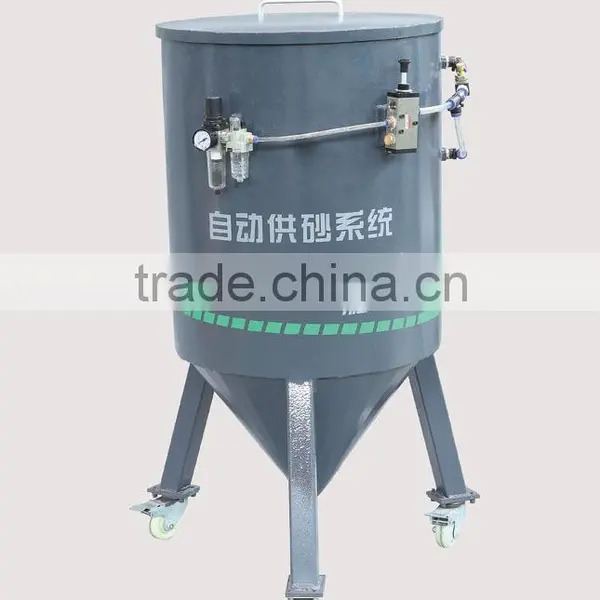

5.Automatic abrasive delivery system
Item | Best selling water jet cutting machines prices | |
Model | RC2015 | |
Structure | Bridge | |
Cutting table size | 2100*1600mm | |
Stroke | X-axis | 2000mm |
| Y-axis | 1500mm |
| Z-axis | 130mm |

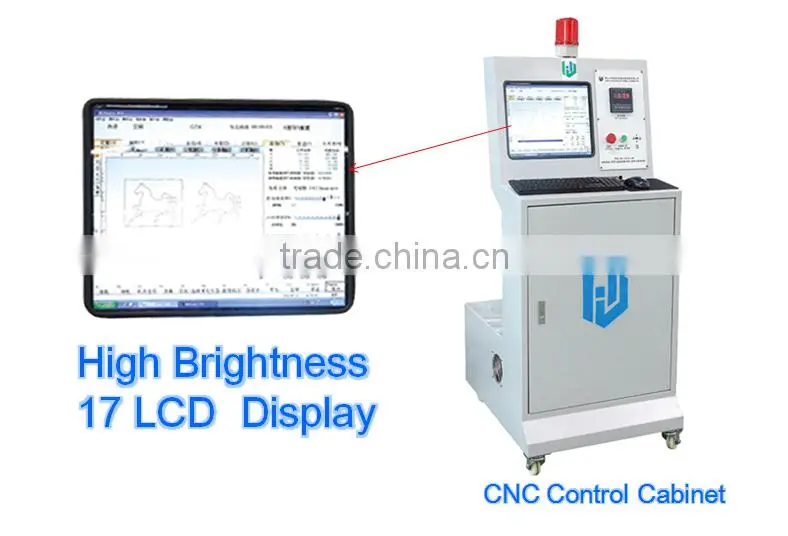

CNC Controller | Step System / AC Servo System | |
Accuracy | ±0.1mm | |
Cutting | Repeatability | ±0.05mm |
| Traverse speed | 6500/15000 mm/min |
Power supply | 220V/380VAC,50Hz |

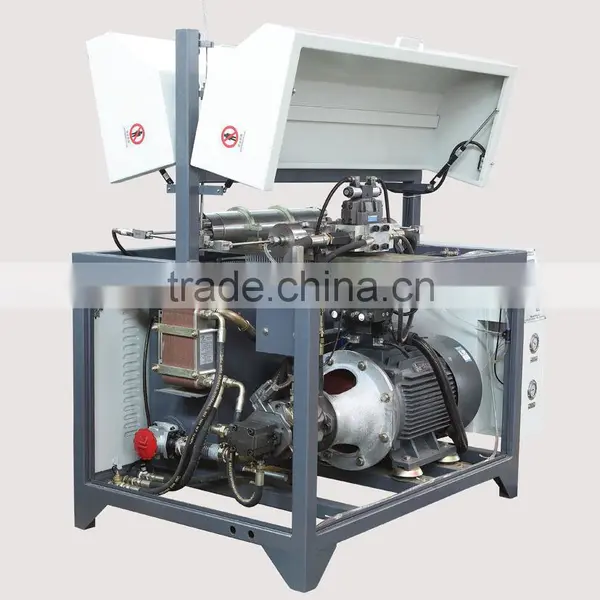

Turbocharger parameters | |
Item | Best selling water jet cutting machines prices |

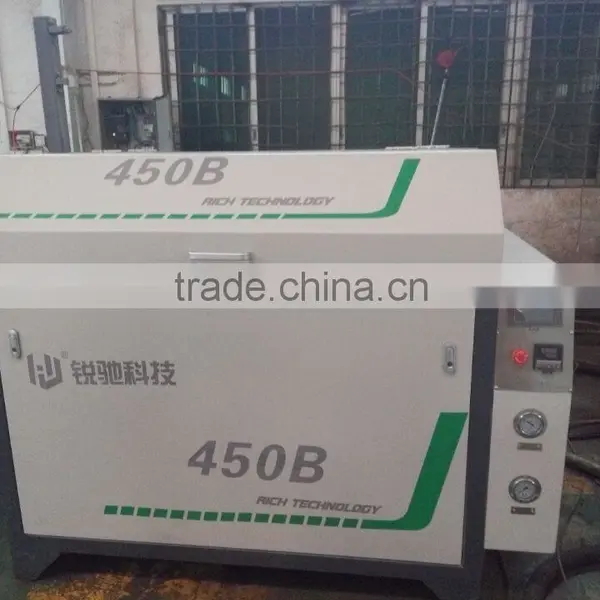

Model | 450B |
Maximum pressure | 450Mpa |
Normal operating pressure | 350-380Mpa |
Main motor power | 37KW |
Oil pump | Variable |
Cooling | Water/Oil/Wind |
High-pressure cylinder | Imported |
Inlet valve | Imported |
Ceramic rod | Imported |
Accumulator | Single taper |
Power supply | 415/380/220V AC 3P |
Bridge feature:
1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.
2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.
3.A full range of cutting capacity, any plane curve cutting.
4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, so that the machine runs smoothly.
5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.
6.Cutting head is equipped with reliable pneumatic high-pressure water switch control device, improve production efficiency.
7.Unique sand valve design, simple structure,the flow of sand smooth, easy to repair.
8.All stainless steel protective cover, dustproof, waterproof, anti-rust, anti-corrosion, easy to use water to clean, maintain the cutting platform perennial burnished as new.
9.4-axis and 5-axis system tilt cutting heading for optional choice with extra charge.

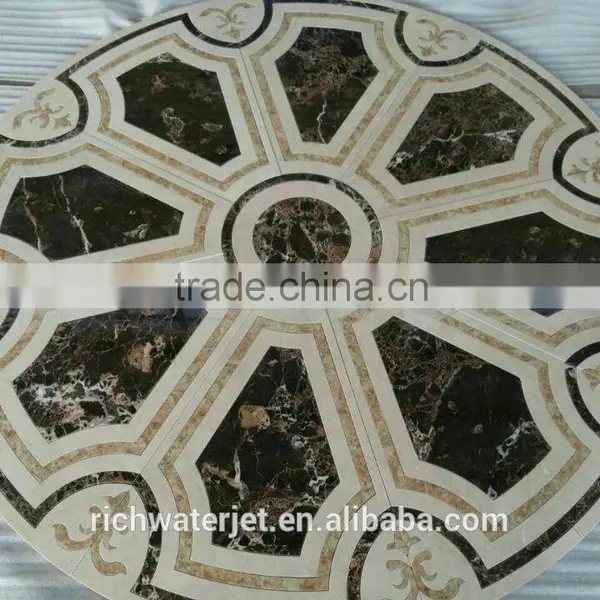

10.Varities kinds of applications:Ceramic, Stone, Glass, Marble, Stainless Steel, Plastic foam, Aluminum
11.any size of cutting machine is availble for our customers requirement.
Foshan Rich Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
After-sale service commitment
A. We are assure that the equipment is completely brand-new and will conform to the technical specifications.
B. The machanical guarantee on machinery and equipment shall be 12 months after the acceptance data(Vulnerable parts excluded).
C. The damages are due to faults in design or workmanship, We will replace or repair it base on the follow situation.(Vulnerable parts excluded)
The following guarantee is for the vulnerable parts:
a. The part is broken before less than 50% of its guarantee time, the seller will replace or repair it at the seller’s own cost.
b. The part is broken up to or more than 50% of its guarantee time, the seller and buyer should bear its cost base on the percentage of the using time.
c. The part is broken after its guarantee time, the buyer should replace or repair it at the buyer’s own cost.
Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.
Quantity Terms | MOQ: 1 set |
Payment Terms | 30% paid for deposit by T/T, 70% before delivery. |
Quality Terms | One year warranty expect the easy-damaged parts. |
Delivery Time Terms | Time of delivery is 30 days after receipt of deposit. |
Brand’s Terms | Use factory’s own brand and can do OEM . |
Package | Soft packing, use 20’ container to deliver |
A. High Quality: The accessories we use are imported from famous and high lever suppliers, that ensure a long lifetime of our machine. The no troubleshorting working time can be over 1500 hours.
B. Customize Design: Our cutting machine could be designed as customers requirement, such as the cutting head and the cutting table size.
C. Good Service: Professional waterjet cutting machine maintance manual for our clients to slove the regual maintenance. Professional service team and 24 hours online to solve your problem.
D. Rich experience and professional in waterjet cutting machine: We are the manufactory, which only specialized in producing waterjet cutting machine and spare parts for 8 years. With the rich and professional experience, we the best expert of you and your waterjet cutting machine.
E. Profession on Export: Authorized import & export license, A professional oversea sell team to service our vip clients.
F. Fast & Cheap Delivery: We have long-term cooperation forwarder, who can deliver our equipment to every corner of the world with competitive freight.
“RICH Quality, serve the world”, we are full of confidence, because in your support and cooperation, we will make our career be on the upgrade. Warmly welcome you to visit our company, service information, technical support, guidance and business negotiation.
1.Skype:kittywu12201
2.Phone:+86 13827785699
