Help CenterPortable Fiber Laser Marking/engraver Machine With Aluminum,copper,stainless Steel,golden,rings,jewllery Metal and Nonmetal
Related Products
-
10W 20W Metal Ipg Fiber Laser Engraver Machine for Ring, Plastis, PVC, Metal and Non-MetalUS$ 6,000 - 9,500MOQ: 1 Set -
10W 20W Metal Ipg Fiber Laser Marking Machine for Ring, Plastis, PVC, Metal and Non-MetalUS$ 6,000 - 9,500MOQ: 1 Set
-
30W Gold Jewelry Portable Fiber Laser Engraving Machine With CEUS$ 6000.00 - 6000.00MOQ: 1 Box
-
20W Gold Jewelry Portable Fiber Laser Engraving and Marking MachineUS$ 6000.00 - 6000.00MOQ: 1 Box
-
For Metal 20W Portable Fiber Laser Marking MachineUS$ 6000.00 - 6000.00MOQ: 1 Box
Applicable materials
All kinds of metals and alloys (special for aluminum alloy), metal-coated materials, electroplates, industrial
plastic (PVC/PC/PU), ABS materials, epoxy resin, etc.

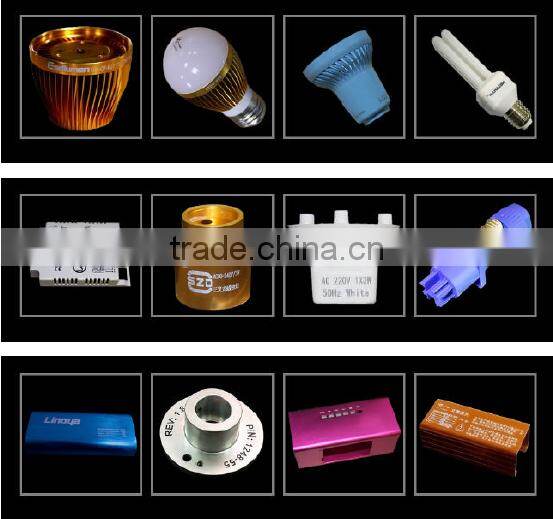

Applicable in subdivision lighting products
Traditional lighting lamps and lanterns, LED energy-saving lamps, LED driver power supply, canister light cover
and any lamps and lanterns, etc.
Features
1. Fiber Laser Marking Machine adopts imported fiber laser generator to enable stable output and high quality
laser mode. Furthermore, low running cost(power consumption 400W-700W), long-term working and free for
maintenance.
2. Laser beam quality is much better than the traditional laser marking machine. Fiber laser beam mode is TEM00;
focus diameter is less than 20um; expanding angle is only 1/4 of the DP. Therefore it is especially good at delicate
marking.
3. Fast marking speed, 2-3 times faster than the traditional marking machine.
4. The marking software supports files such as Coreldraw, AutoCAD, Photoshop and PLT,PCX,DXF, BMP; SHX
or TTF can be directly adopted; the functions such as auto coding for sequence No., batch number, date, barcode
and so on.

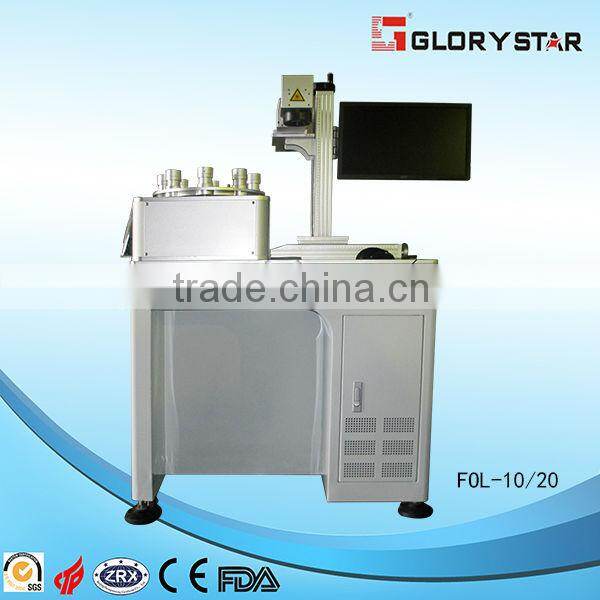

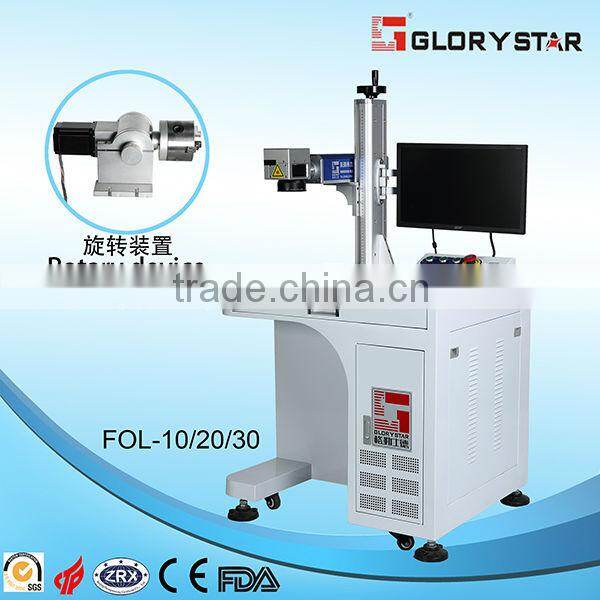

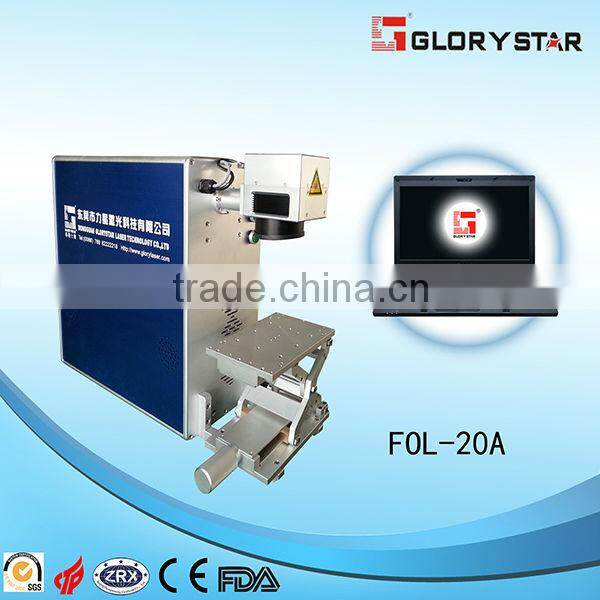

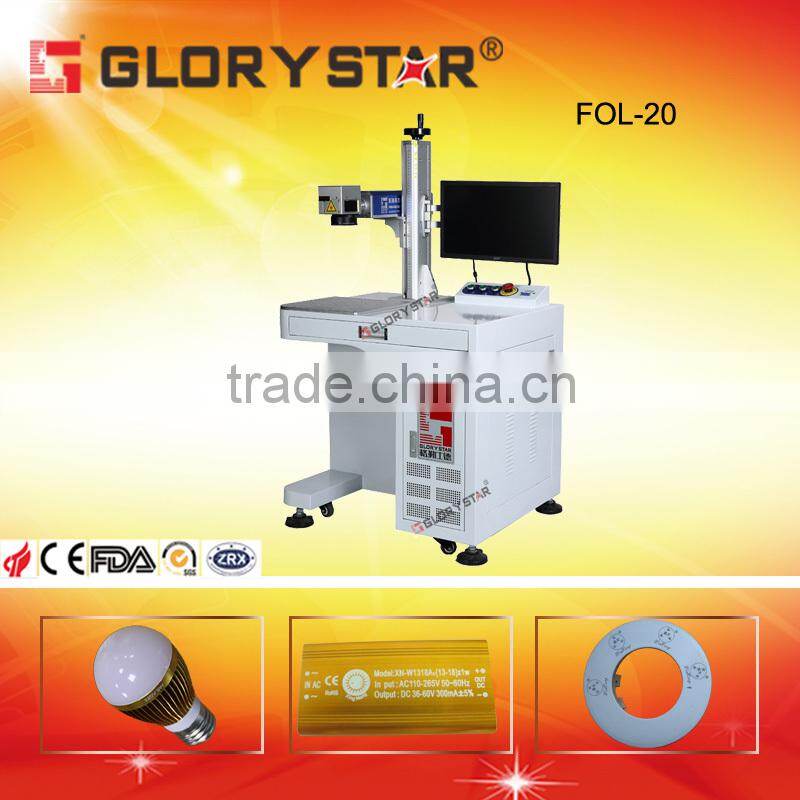

Machine display (two structure options)
Technical data
Model |
FOL-10/20/30/50 |
Power |
10W/20W/30W/50W |
Wavelength |
1064nm |
Pulse Frequency |
20~300KHz |
Carving size |
70X70mm/100×100mm/140x140mm/ 175X175mm/200X200mm |
Carving speed |
8000mm/s |
Minimum line width |
0.02mm |
Minimum character |
0.15mm |
Beam quality |
M2 <1.5 |
Repeated accuracy |
±0.002mm |
Power consumption |
≤0.5KW |
Supported Format |
Bmp,jpg,jpeg,gif,tga,png,tif,tiff,ai,plt,dxf,dst,jpc,svg,nc,g,bot,dst |
Operation Humidity |
5%-90% No Condensation |
Temperature of operation environment |
5℃~40℃ |
Working voltage |
220V±10%/50Hz/ 110V±10%/60Hz |
Cooling mode |
Air cooling |
Life-span of laser module |
100,000 Hrs |
Brief introduction:
FOL series fiber laser marking machine adopts high quality fiber laser and high speed galvanometer scanning system.
1. Stable laser output, excellent laser quality, fast marking speed and nice marking effect.
2. Attractive design, compact design, easy operation, no consumptive parts, and low running cost.
Equipment feature:
1. The marking speed is 2 or 3 times faster compare to traditional marker.
2. Beam quality is much better than the traditional marker. It’s particularly suitable for precise marking.
3. Electro-optical conversion is more efficient, power consumption is very low, only about 500W.
4. The laser source has longer lifetime.
5. The software supports PLT, AI, DXF, BMP and other files.
Applicable Materials:
any metal, engineering plastics, plating, coating materials, spray material
Applicable Industry
the phone keypad keys translucent plastic, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches, jewellery, automobile accessories, bags decorated clasps, cookers, stainless steel products and other industries
