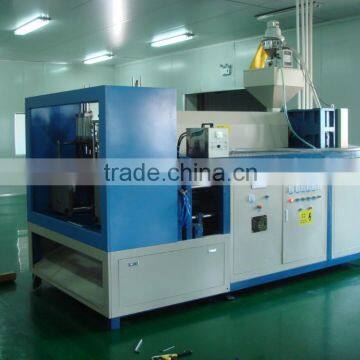

Soft Play Balls Blow Molding Machine

Name: Soft Play Balls Blow Molding Machine
Brand: zhongyi
Availability: InStock

FOB Price

US$ 10,000 - 12,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, plastic ball
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Hebei, China
Brand Name	zhongyi	Model Number	wsj-6
Voltage	380V	Power(W)	20KW
Dimension(LWH)	3300mm1650mm1700mm	Weight	1500KG
Certification	patent	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

soft play balls blow molding machine:

Type	WSJ-6
The volume of the product L	≤5
The quantity of the mouth of the mould	1
The quantity of the moulds(set)	2 3 cavity each one mould
Production capacity pcs /hour	about 1800
Screw diameter mm	65
Long radius rate L/D	1:25
The max plasticizing capacity of LDPE kg/h	55
Clamping method	Hydraulic
The diameter of clamping cylinder mm	125
The mothed of cutting the pipe of material	Hot cutting knife
Journey of opening and closing of mould mm	250
Max dimension of the mould(D×W×H)mm	230×270×350
Blowing pressure Mpa	0.5-0.7
Gas consumption m3/min	0.6
The pressure of cooling water Mpa	0.2-0.3
The diameter of water circulation pipe mm	14
The electric machinery power of extruder machine kw	11
The heating power of extruder machine kw	10.5
Total power KW	21.5
Appearance dimension of machine mm(L X W X H )	3400×1750×1700
Weight kg	1200
Method of control	PLC computer control
The suitable raw material	PE/PP/PS
