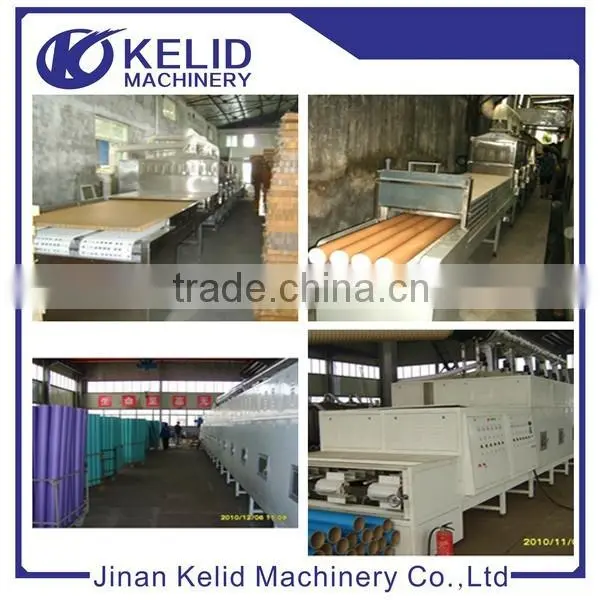

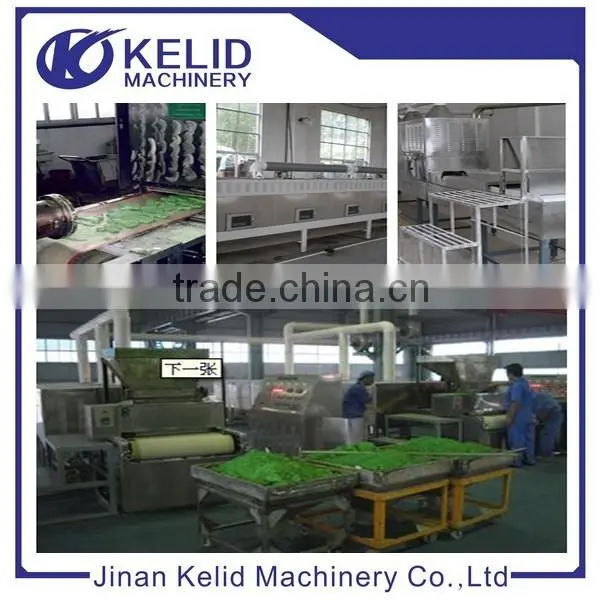

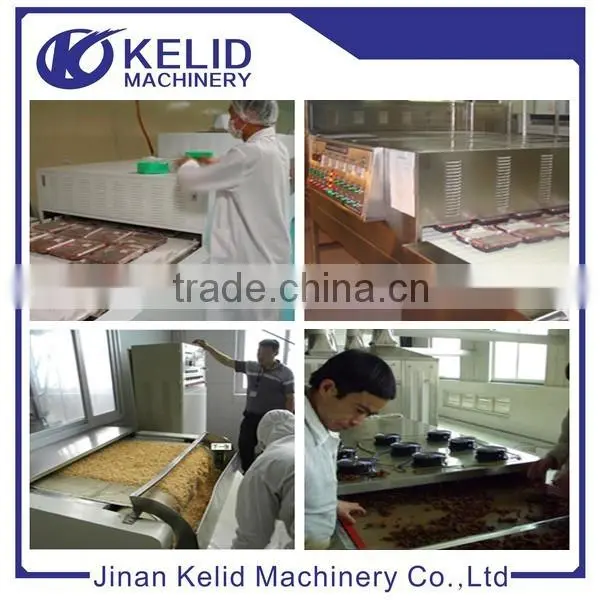

High efficient automatic micro wave dryer
1,The principle of micro wave dryer
Microwave is a sort of electromagnetic wave which frequency is 300MHz to 300GHz .The water molecule in medium materials is polar molecule,under the effect of the rapid change of electromagnetic field,its polarity orientation will alter with the changes of the external electric field with the high-speed,causing the movement and friction of that the microwave field energy can be converted to heat energy in medium to rise the temperature of materials.accomplishing heating ,puffing and a series of physical and chemical processes ,and so ,microwave heating is achieved.
2, micro wave dryer Main used area

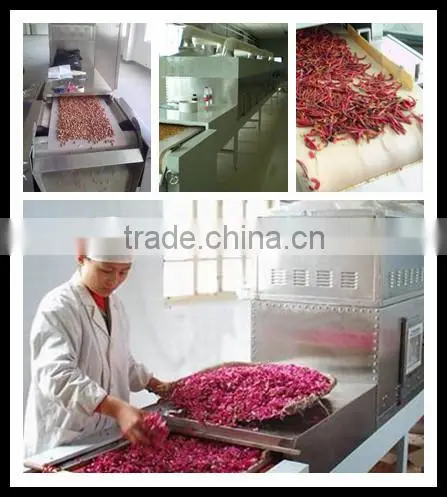

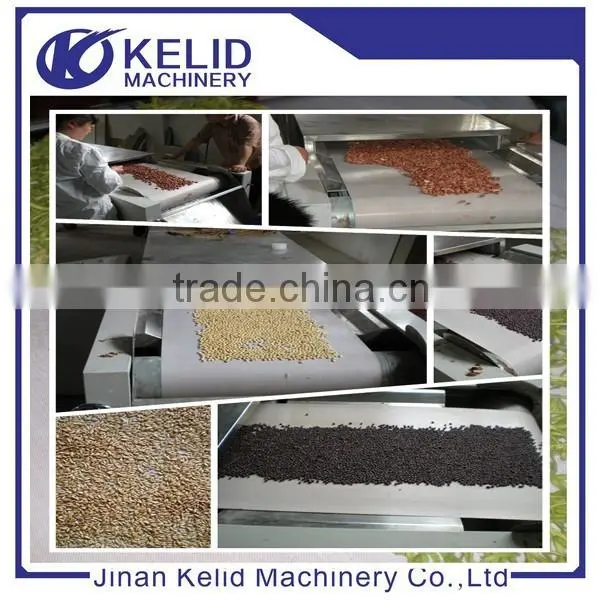

This machine fits for drying and sterilizing powders, granular, sheet-like or gel-like food, and additive, spices, flavoring, medicine, raw material of herbal medicine, nutritional health products, agricultural & sideline products, non-fired(or oil saving)instant noodles, noodles, rice powder needles, soy products, beef jerky, preserved meat, dried fish, tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food, pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for thawing the frozen fish, poultry; and for drying beans; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, wood , cork, alveolate, cardboard,corrugated cardboard, and so on.
2. micro wave dryer technical parameters
Power supply | 380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency | 2450±50MHz |
Microwave input apparent power | ≤42KVA |
Microwave output power | ≥30KW |
Microwave power adjustment range | 0-30KW(adjustable) |
Ambient temperature | -5-40°C |
Relative humidity | ≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) | about10680*840*1750 mm |
Transmission speed | 0-10m/min(adjustable) |
Height of the inlet and outlet | 60 mm |
Microwave leak | accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety | accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery |

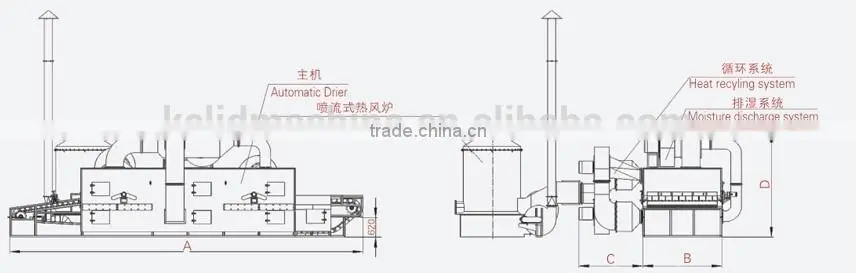

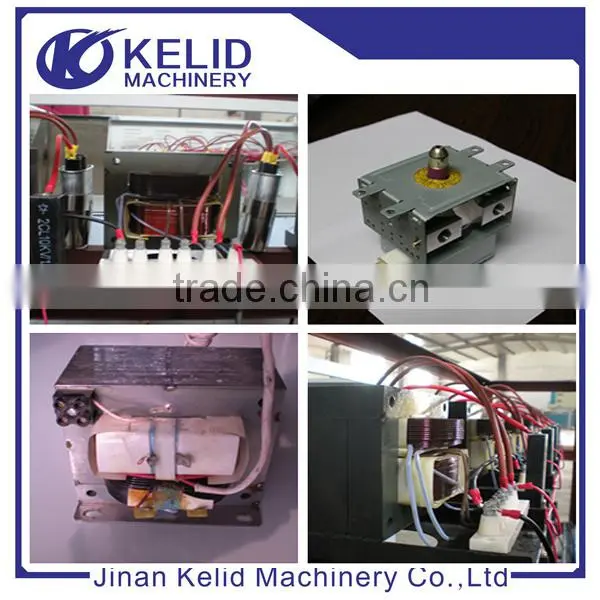

4. micro wave dryer details
Before sale services for micro wave dryer
1.Provide the free consultation of the equipment
2.Provide the standard device and the flow chart
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales for micro wave dryer
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
After sale services for micro wave dryer
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa and a nominal $40 daily subsidy per person.

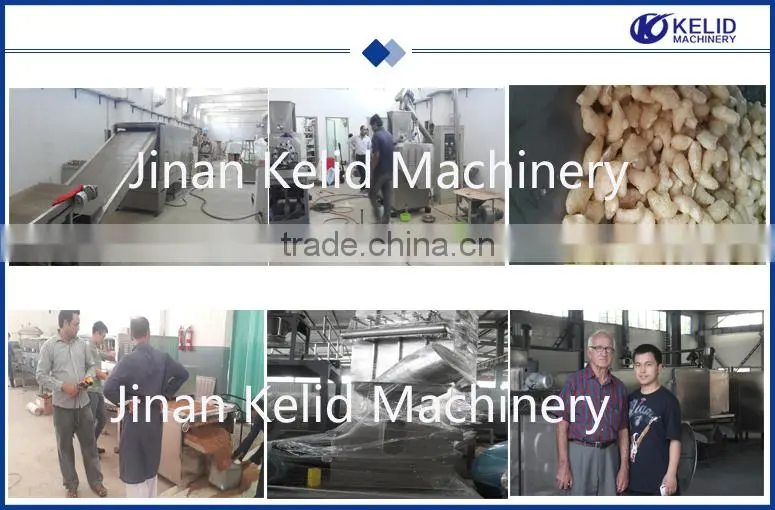

Jinan Kelid Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development. All Inquiries are welcome.
We are located in Jinan, the Capital of Shandong Province. Jinan Kelid Machinery Co; Ltd is vested with many staffs with many years of experience in supplying the food processing machines.
Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc... Most importantly, we also provide formulas, technology supports, machine inspection service, etc^..
Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the clients specific requirement, we also design and produce the machines to order. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever food processing machine you need from China, contact: Jinan Kelid Machinery Co; Ltd. A one stop shop in the middle of China.
1. What's the materils?
Answer: Stainless steel
2. How long is your gurantee time?
Answer: One year after comissioning.
3.How is the installation?
Answer: When the machine arrives at the your workshop, we send 1-2 engineers to install the machine and teach the workers how to use. There be a operate mannual and Equipment maintenance manual.
4.I want to do more tastes. It is ok?
Answer: We will supply a basic formula. You can adjust and find the best formula to meet your target market's taste.
5.How is the payment?
Answer: 40% TT as downpayment, 60% TT or L/C before shippment. Before shippment,welcome to inspect the machine.
