Home > Products > K.S.F.R series gearbox > F series parallel shaft speed reducer gearbox with diesel engines for conveyor
F series parallel shaft speed reducer gearbox with diesel engines for conveyor
- 100000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | MINGDI | Model Number: | F37-F157 series |
Gearing Arrangement: | Cycloidal | Output Torque: | 200-18000NM | Rated Power: | 0.18-200kw |
Input Speed: | 1500 rpm | Output Speed: | 0-373rpm |
Product Description

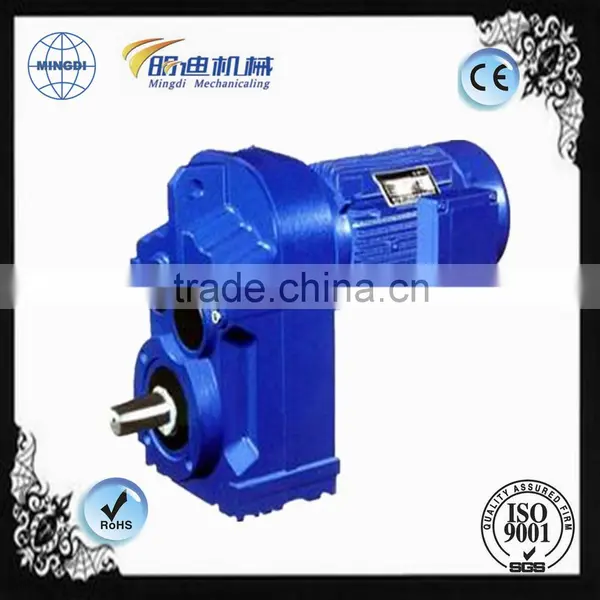

F Series Parallel Shaft Helical Gearbox / Gear Motor / Reducer
1. Gearbox / Gear Motor / Reducer output speed: up to 373 r/min
2. Gearbox / Gear Motor / Reducer output torque: up to 18000 N.m
3. Gearbox / Gear Motor / Reducer driving motor output: 0.18-200 kW
4. Gearbox / Gear Motor / Reducer frame range: F37~F157
5. Gearbox / Gear Motor / Reducer various mounting design: F, FA, FF, FAF, FAZ
1. Helical gearbox / gear gotor / reducer is based on the building block design, so it’s convenient for them to fit all types of motors or to connect with other power input. The same type of gearbox can fit motors with different power, so that it is possible for different types of machines to combine or connect.
2. High transmission efficiency. A single machine can reach a transmission efficiency as much as 96%
3. Precise division of transmission ratio with a wide range. The combination of machines can produce a larger transmission ratio at a low output rotational speed.
4. High performance, high safety factor, Low consumed energy, small vibration, low noise, high precision, big torque and long working life.
1. Working temperature: -40~50°C. the lubrication should be heated until about 0°C if the machine works below 0°C.
2. The working place should be lower than 1,000 meters above sea level.
3. The input rotational speed should not exceed 1800 r/min. The circumferential speed of the gear should not exceed 20 m/s.
4. Suitable for normal-reverse rotation.
5. Without industry limitation.
6. Please consult our technical supporting department for other circumstances.
other products
Changzhou Mingdi machinery Co.,Ltd. is local at the most prosperous area ---JIANGSU Changzhou city. We near to Shanghai just 1 hour train from Shanghai to our city. Here is the focus of Gearbox and Gears production. We produce cylindrial gearbox and the gears. We have complete processing equipment, strong technical team to ensure our products with stability, low noise characteristic. Our products supply to electrical machinery, plastic extrusion machinery, railway engineering machinery and metalurgical machinery which are OEM manufacturers. Also,we welcome your customized requirment.
1. We provide kinds series of bevel gears, series of Gearboxes, series of Reducers.
2. We provide OEM products, and we also like to produce products according to your drawings, or your parameter.
3. The peroid of our warranty is 1 year.
4. FOB, CIF, EX-WORKS delivery term based on your choice.
5. Advantage processing equipments and test equipments ensure our quality.
Q: What's your business type?
A: We are a manufacturer, and also have import & export trading right.
Q: What's your main products?
A: Power transmission gearboxes and gears.
Such as: industrial HB gearbox, worm/helical/bevel/planetary gearbox, heavy duty gearbox, gearbox for crane/extruder/excavator/rolling mill/cement mill, etc.
Q: What about your warranty?
A:12 to 18 months warranty according to different products and lifetime service.
Q: What's your MOQ?
A: 1 set for different kinds of gearboxes, and 5 pcs for gears.
Q: Can you supply customized gearboxes or gears?
A: Yes, we can customize any kinds of gear and gearbox as per your requirement or drawings.
Q: What information should be given, if I want to buy gearbox?
A: Gearbox ratio, gear type, speed ratio, input / output speed, rated power, mounting position, More details will be welcomed
