professional lab scale extruder
lab scale extruder is our company research for universities, research institutes and large and medium-sized enterprises engaged in various extrusion, extruded maturation, extruded variability study omnipotent models. It has gone through four generations of improvements to adapt to cereals, potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simplely of parameters adjustment, test data accurate, easy maintenance.
1. lab scale extruder application
Lab scale extruder are particular requirement is one machine have more function .in the laboratory ,hope one piece of equipment can complete all the experiments, however, different research institutions have different areas of research, the same research institution have different research topics, the requirements is different, adaptability and adjustable is particularly important for laboratory equipment. SYSLG30-IV experimental twin-screw extruder is researched after Germany, France, Italy, the United States, Switzerland and other developed country, and after four improved, in particular the Fourth improvement, It functions in almost perfect.
2. lab scale extruder parameter

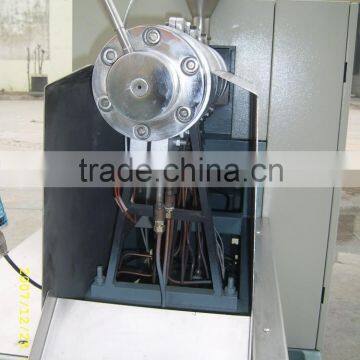

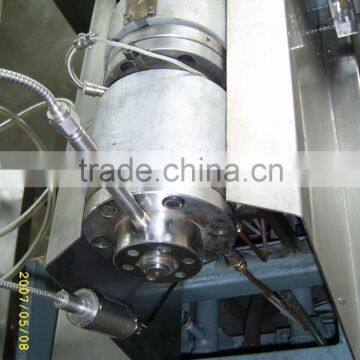

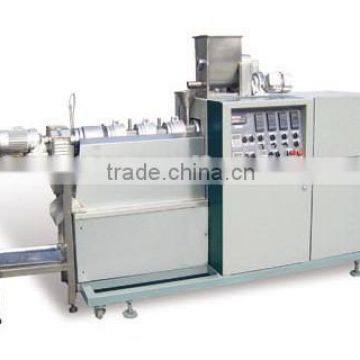

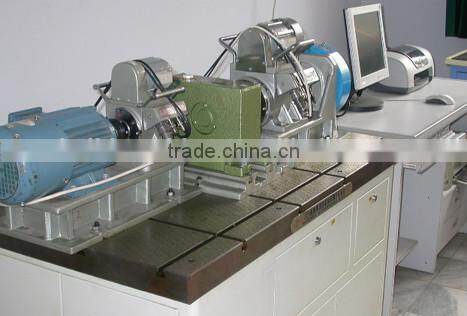

3. lab scale extruder picture

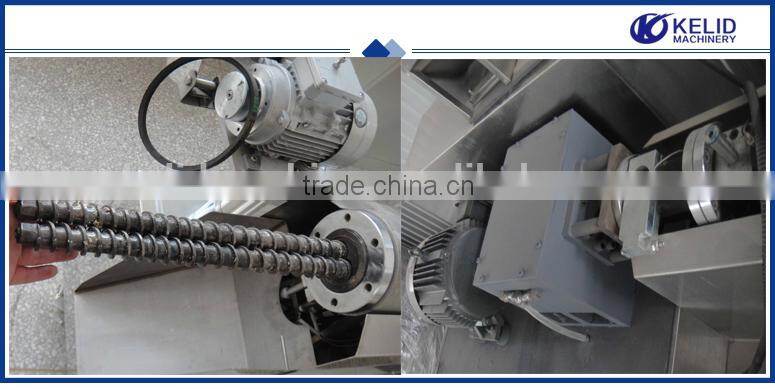

1, lab scale extruder The modular screw :
The machines are equipped with a variety of screw modules, the first transmission with a single-unit, duplex transmission modules, small pitch transmission unit, the transportation unit pitch, anti-helix, shear block, the resistance Central, inserts, Metrology Group, according to different needs arbitrarily design screw portfolio, as long as you think of it, there may portfolio.

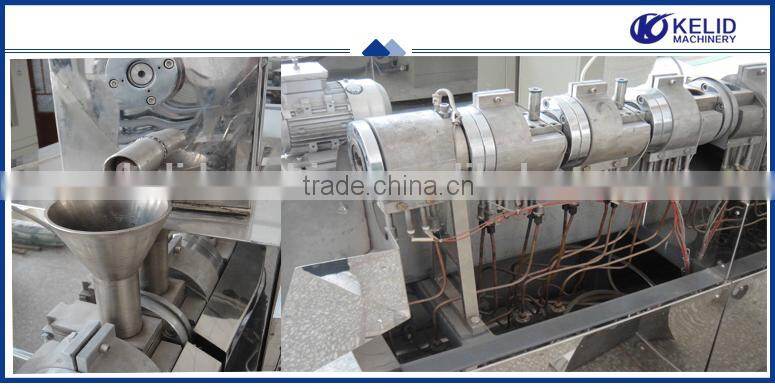

2, lab scale extruder Assembled Barrel :
The aircraft extinguishers assembled cones contain four sections of the aircraft assembled, which drew about big around can be arbitrarily changing positions. Transformation through the feed tube of mouth can be very convenient location in a screw on the transformation from a number of aspect ratio. Experimental aspect ratio is an important parameter equipment, and general equipment to change the aspect ratio is very difficult, Even though many changes have replacement parts, and this machine has three feed mouth, simply change feed location can conjure up a : 11.6,1:12.7,1:23 aspect ratio of the three, adjust barrel, to change the composition of barrel can be very convenient one : 9.3,1:15,1 : 20.6 aspect ratio of the three.
3, lab screw extruder three feed:
For a special experiment in addition to the ingredients of various components will be added to the list, there are some to be added to the list sooner or later. At this time you can from the first, second, third mouth to feed and in order to control raw materials stay time in the tube. also Can use metering pump press liquid raw materials from the second and third Feed into it.
4, lab scale extruder Two-way temperature control:
Laboratory equipment should meet the requirements of different temperatures, Extrusion is a process generated heat, the heat sometimes less than the required calories, Sometimes the heat is greater than the necessary calories, and some segments need high temperature, some segments need low temperature, The drum machine is divided into four sections, the whole course with heating and cooling bidirectional control ,and ensure that achieved the requirements temperature.
In the mold also used two-way heating and cooling control, to control the Expanded in the export of raw materials , or just a maturation without puffing.
5, lab scale extruder The three pressure points :
The pressure is also important experimental parameters, and most equipment only located a point of pressure close outlet , can not understand the pressure og every stage, especially for a new combination of the screw hard to imagine all of the pressure distribution. The machines in three different locations can be measured pressure.
6. lab scale extruder Moisture wide range of raw materials :
Most equipment to the r raw materials are subject to certain restrictions, had little water iscan’t extruder out, too much water can’t enter, and raw materials can not contain high oil, because the machine have three Addison, Moisture content can range from 6% -- 70% ,oil content can reach more than 25%
Before sale services: for lab scale extruder
1.Provide the free consultation of the equipment
2.Provide the standard device and the flow chart
3. According to the clients'special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales lab scale extruder
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
After sale services for lab scale extruder
1. Oversea install and debug the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa and a nominal $40 daily subsidy per person.
1. What's the materils for lab scale extruder ?
Answer: Stainless steel
2. Hong long is your gurantee time for lab scale extruder ?
Answer: One year after comissioning.
3.How is the installation for lab scale extruder ?
Answer: When the machine arrives at the your workshop, we send 1-2 engineers to install the machine and teach the workers how to use. There be a operate mannual and Equipment maintenance manual.
4.I want to do more tastes. It is ok?
Answer: We will supply a basic formula. You can adjust and find the best formula to meet your target market's taste.
5.How is the payment for lab scale extruder ?
Answer: 40% TT as downpayment, 60% TT or L/C before shippment. Before shippment,welcome to inspect the machine.
