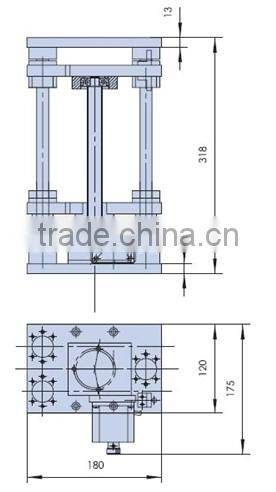

PT-GD403 Motorized Lab Jack
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
PDV
Model Number:
PT-GD403
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Beijing, China
Brand Name
PDV
Model Number
PT-GD403
Structure Specifications
1 Item Number: PT-GD403
2 Travel Range: 100mm
3 Dimension of Platform: 180mm x 120mm
4 Drive Mechanism: Gear Motor with Grinding Screw
5 Travel Guide: Slide Rail
6 Stepper Motor (1.8°): SST57D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material – Finish: Aluminum Alloy - Black-Anodized
8 Load Capacity: 50kgs
9 Weight: 10.5kgs
Accuracy Specifications
1 Minimum Adjust Distance: 0.75μm
2 Max Velocity: 8mm/sec
3 Repeatability: 5μm
4 Absolute Accuracy: 15μm
5 Backlash: 4μm
6 Lost Motion: 3μ
