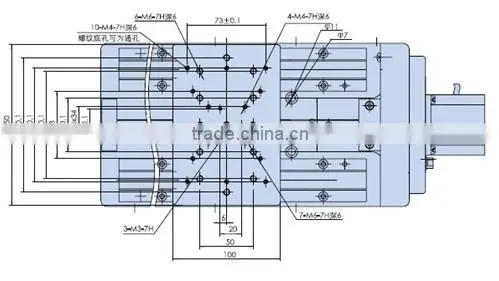

PT-GD130P 50/100/150/200/300/400/500 Miniature Motorized Linear Stages
- 600 Set / Sets per Month
- Beijing
- T/T L/C D/P D/A
Product Details
Place of Origin: | Beijing, China | Brand Name: | PDV | Model Number: | PT-GD130P 50/100/150/200/300/400/500 |
Product Description
1 High precise ball screw provides high-performance
2 Supported high precise linear ball bearing ensures accurate linear motion and high-loading.
3 The model PT-GD130P series is ideal for the long travel range by the material of aluminum alloy sections
4 Original position and limit switches at both ends which can supply the precision positioning and protection
5 The PT-GD130P positioning stages are ideally suited for applications that require long travel and high-load capacity such as measurement and inspection. Microswitches allow homing and overdriving protection in both forward and reverse directions.
Item Number | PT-GD130P 50 | PT-GD130P 100 | PT-GD103P 150 | PT-GD130P 200 | PT-GD103P 300 | PT-GD103P 400 | PT-GD103P 500 | |
Structure | Travel Range | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm |
Platform | 150mm × 100mm | 150mm × 100mm | 150mm × 100mm | 150mm × 100mm | 150mm × 100mm | 150mm × 100mm | 160mm × 130mm | |
Bearing Construction | High Precise Recirculating Ball Screw (4mm of leading) | High Precise Recirculating Ball Screw (5mm of leading) | ||||||
Travel Guide | Supported High Precise Linear Ball Bearing | |||||||
Stepper Motor (1.8°) | STP-42D3016 (Stepping Motor with 2-Phases & 1.8° of Step Angle) | SST59D3300 (Stepping Motor with 2-Phases & 1.8° of Step Angle) | ||||||
Material | Aluminum Alloy - Black-Anodized |
| ||||||
Load Capacity | 30kgs | |||||||
Weight | 3.8kgs | 4kgs | 4.5kgs | 4.8kgs | 5.5kgs | 6.8Kgs | 7.2Kgs | |
Accuracy | Design Resolution | 20μm/Pulse, Non-MS Driver 1μm/Pulse, 20MS Driver | 20μm Pulse, Non-MS Driver 1.25μm Pulse, 20MS Driver | |||||
Max Velocity | 40mm/sec | 50mm/sec | ||||||
Repeatability | 5μm | |||||||
Absolute Accuracy | 8μm | |||||||
Straightness | 10μm | 30μm | 60μm | |||||
Parallelization | 10μm | 15μm | 20μm | |||||
Pitching | 80" | |||||||
Yawing | 60" | |||||||
Backlash | 3μm | 5μm | ||||||
Others | Optional Accessories | Brake Function (-Z), Grating Scales (-G), Servo Motor (-D) and Dust-proof Cover (-F) | ||||||
For other travel ranges of translation stages, please let us know. | ||||||||
Origin Sensor and Limit Switches are existing. |
