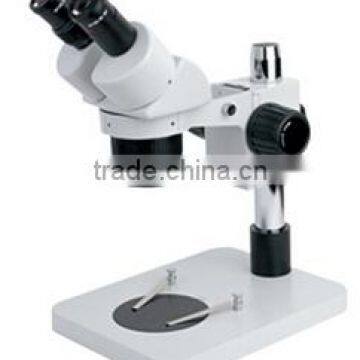

TS-70S Two times microscope fixed block times microscope

Magnification

Standard:20X/40X, using optional eyepiece and auxiliary lens, it can extend to 5X~160X

Objective

1X,2X,3X,4X

Eyepiece

Wide field and high eyepiont eyepiece WF10X/20mm

Wide field and high eyepiont eyepiece WF15X/15mm

Wide field and high eyepiont eyepiece WF20X/10mm

Viewing Head

Binocular head, 45°inclined,360°rotatable, inter-pupillary range 54~76mm, both two side diopter adjustment(±5)

Trinocular head, one side light path output  light splitting 100%:0 or 0:100%

Working Distance

Standard:100mm, using optional auxiliary lens can expand to 30mm-165mm

Auxiliary Lens

0.5X/165mm,1.5X/45mm,2X/30mm

Focus arm

tension adjustable, adjust range 50mm

Stand

Pillar type flat stand

Pillar stand with top & bottom illumination. Bottom illuminator: halogen bulb 12V15W( brightness adjustment ), Oblique lighting 12V/15W

Pillar stand with top & bottom illumination. Bottom illuminator:  fluorescent bulb 230V/8W , Oblique lighting 12V/15W

Other type stand, ring light and fluorescent light and fiber light for option.

Photo device

Photo tube(with PK mount),3.2X photo eyepiece

TV device

0.35X/0.5X/1.0X  C-mount adapter

Others

Precision measurement platform, dark field condenser, jewelry clip
