Home > Instruments & Meters > Optical Lens & Instrument > Microscope > SW-30 Inverted Biological Microscope

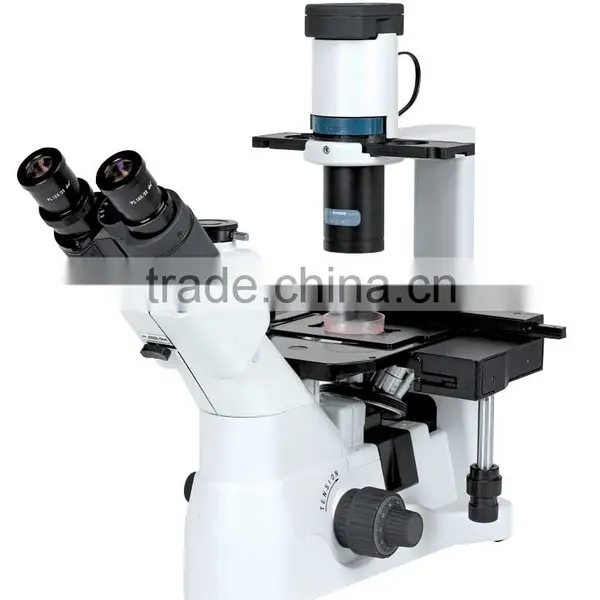

SW-30 Inverted Biological Microscope

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

PDV

Model Number:

SW-30

Contact Supplier Request Quote Chat Now

Beijing PDV Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name PDV

Model Number SW-30

Theory Biological Microscope

Drawtube Other, Biological Microscope

Model	SW-30
Optical System	Color corrected infinity optical system
Viewing Head	Gemel binocular head, 450 inclined, interpupillary distance adjustment range 54-75mm, one eyepiece tube with ±5 diopter adjustment Gemel trinocular head, 450 inclined, light splitting ratio: binocular 100%; binocular 80%/trinocular 20%
Eyepiece	PL10X22mm high eye-point plan eyepiece PL15X16mm high eye-point plan eyepiece
Objective	Infinity long working distance plan achromatic objective: LWDPL4X/0.1/WD22, LWDPL10X/0.25WD7.94, LWDPL20X/0.40WD7.66 LWDPL40X/0.60/WD3.71,LWDPL60X/0.70/WD2.50 Infinity long working distance plan phrase contrast objective: LWDPL10X/0.25WD7.94, LWDPL20X/0.40WD7.66, LWDPL40X/0.60/WD3.71
Nosepiece	Reversed quintuple nosepiece
Stage	160x250mm platform, glass stage/ metal stage, extension plate
Attachable mechanical stage	Low position coaxial mechanical stage, move range 120x78mm
Focusing	Coaxial focus system, working distance of every circle: 38mm/coarse focus, 0.2mm/ fine focus,, minimal read 0.002mm/
Specimen holder	Holder for specimen glass (also for φ54mm Tissue culture vessel). Terasaki holder (also for φ65mm Tissue culture vessel). Holder for φ35mm Tissue culture vessel
Illuminator	Critical illumination, 90-240V wide voltage, 6V/30W halogen bulb, center presetting, brightness adjustable. N.A.0.3 condenser, W.D.72mm, dismountable. Kohler illumination, 90-240V wide voltage, 6V/30W halogen bulb, center and focus adjustable, brightness adjustable. N.A.0.3 condenser, W.D.72mm, dismountable. N.A.0.5 condenser for option, dismountable
Phase contrast slider	Phase center adjustable slider for XDCD0.3 condenser, with adjusting tools Phase center presetting slider for XDCD0.3 condenser Phase center adjustable slider for XDACD0.3 condenser Phase center adjustable slider for XDACD0.5 condenser
Filter	45mm contrast green filter, color temperature change filter, infrared eliminate filter, rubidium glass filter
Photo attachment	Photo tube(with PK adaptor), 3.2X lens
Video adapter	0.5X/0.67X C mount adaptor
Other options	Professional fluorescence (use special fluorescence objective, illuminator and accessory)
