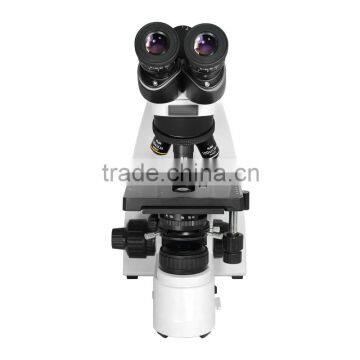

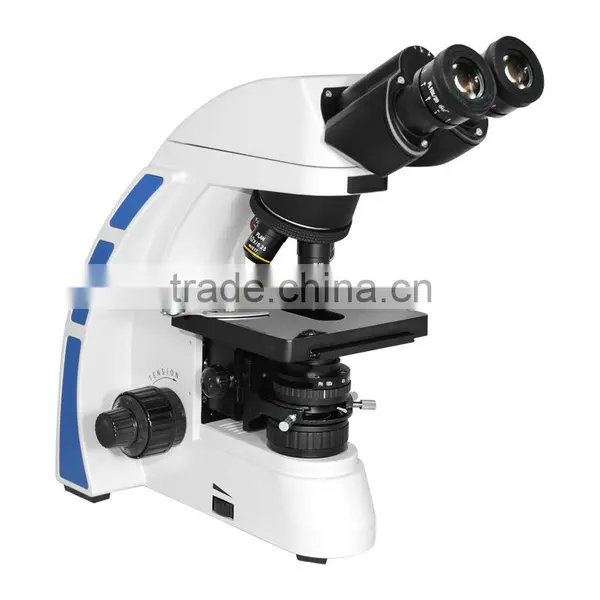

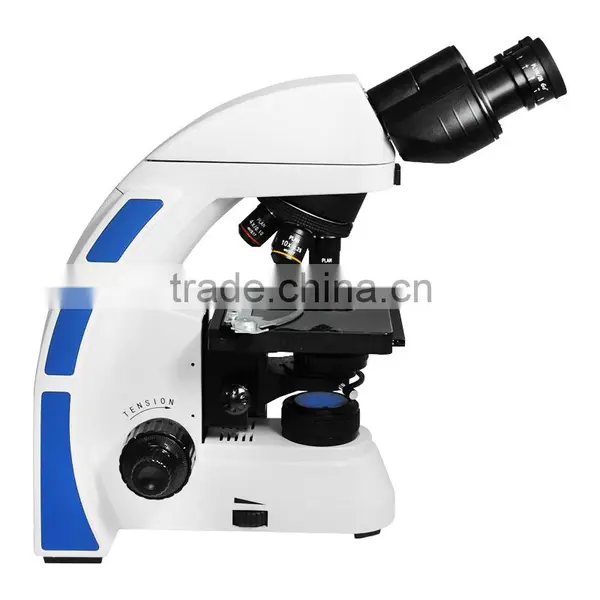

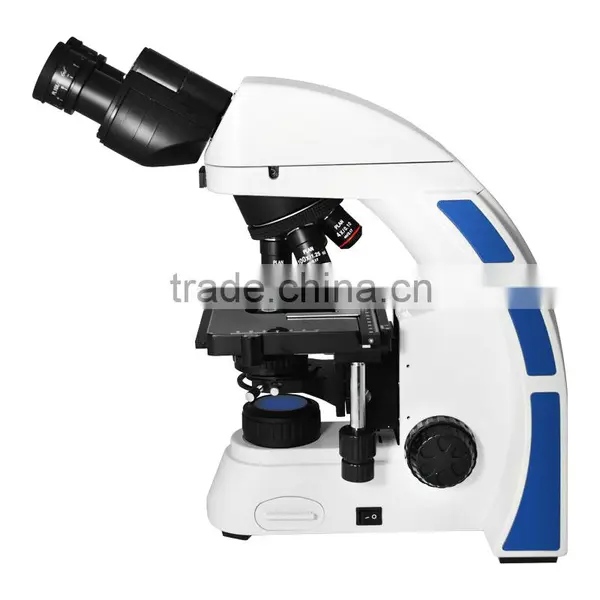

SW-20 Biological Microscope

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

PDV

Model Number:

SW-20

Beijing PDV Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name PDV

Model Number SW-20

Theory Biological Microscope

Drawtube Other, Biological Microscope

Model	SW-20
Optical System	Infinity achromatic optical system
Viewing Head	Binocular head , 30°inclined, 54~75mm interpupillary distance Trinocular head,30°inclined,(with 0/100 or 20/80 light splits)
Eyepiece	High eyepoint wide field plan eyepiece PL10X/18mm,with ±5 degrees diopter control High eyepoint wide field plan eyepiece PL10X/20mm,with ±5 degrees diopter control
Objective	Infinity plan achromatic objective 4X,10X,20X,40XS,100XSO
Nosepiece	Backward quadruple nosepiece Backward quintuple nosepiece
Stage	Coaxial mechanical stage in140X132mm size and 76×50mm travel range.
Condenser	Koehler N.A.1.25 condenser(with socket for phase contrast and dark field sliders)
Focusing	Coaxial coarse and fine focusing adjustment, with limited and tension adjustment. coarse adjustment range: 25mm,fine adjustment precision:0.002mm.
Illuminator	Main supply 100V-240V, 3 watt LED lamp with intensity control(fixed center) Main supply 100V-240V, Philips 6V/20W halogen lamp with intensity control(fixed center)
Photography adapter	3.2x photo eyepiece ,photo tube(with PK mount)
Video adapter	0.35X CTV, 0.5X CTV, 1.0X CTV
Other options	Phase contrast sliders for condenser(use with phase contrast objective) Dark field slider for condenser Simple polarization (with analyzer and polarizer)
