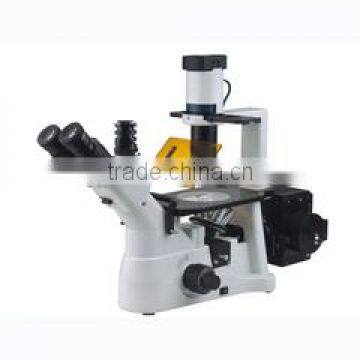

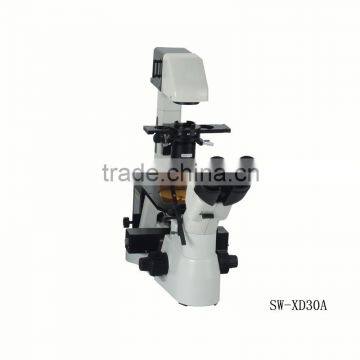

Help CenterYG-XD30/YG-XD30A Inverted Fluorescence Microscope
Related Products
Specifications
Model |
YG-XD30 |
YG-XD30A |
Optical system |
Color corrected infinity optical system |
|
Head |
Gemel trinocular head, 450 inclined, interpupillary distance adjustment range 54-75mm, one eyepiece tube with ±5 diopter adjustment light splitting ratio: binocular 100%; binocular 0%/trinocular 100% |
|
Eyepiece |
PL10X22mm high eye-point plan eyepiece |
|
Objective |
Long working distance infinity plan fluorescence objective LWDPLF4X/0.13/WD18.52 LWDPLF10X/0.30/WD7.11 LWDPLF20X/0.45/WD5.91 LWDPLF40X/0.65/WD1.61 LWDPLF60X/0.75 /WD1.04 |
|
|
Long working distance infinity plan fluorescence phase contrast objective LWDPLFPH20X/0.45WD5.91 LWDPLFPH40X/0.65WD1.61 | ||
Nosepiece |
Quintuple nosepiece |
|
Stage and accessories |
160x250mm platform; Mechanical stage, move range 120x78mm; Extension plate; Glass stage; Metal stage with slot; Terasaki holder; Holder for φ35mm Tissue culture vessel. |
|
Microscope body |
Coaxial focus system, coarse focus distance 25mm, fine focus precision 0.002mm, with degree of tightness adjustment, built-in 90-240V wide voltage transformer. |
|
Reflected fluorescence illumination system |
XDRFA Kohler reflected illuminator, with iris field diaphragm, center adjustable |
|
U-LH100HG mercury lamp house, center and focus adjustable. With mirror, center and focus adjustable. | ||
U1-RFLT100 digital mercury power supply, 90-245VAC wide voltage | ||
OSRAM 100W DC mercury lamp | ||
Centring objective for mercury lamp | ||
optical band pass filter cubes:UV1/B1/G1 | ||
30ND25 attenuation pad | ||
Transmitted illumination system |
Critical illumination, 6V/30W halogen bulb, center presetting, brightness adjustable. Iris aperture diaphragm. |
Kohler illumination, 6V/30W halogen bulb, center and brightness adjustable. Iris aperture diaphragm and field diaphragm |
N.A.0.3 long working distance condenser, W.D.72mm, |
N.A.0.3 long working distance condenser, W.D.72mm, condenser stand can be shifted out from the light path |
|
LBD color temperature change filter, IF550 contrast green filter | ||
Phase contrast accessories |
φ30mm centring telescope |
|
XDSL type 10X-40X phase contrast slider, center adjustable |
XDSL1 type 10X-40X phase contrast slider, center adjustable |
|
CCD adaptor |
0.67X C mount adaptor |
|
Fluorescence filter |
Fluorescence filters, standard UV,V,B,G four cubes, can custom-made. |
|
Camera |
1.4M pixels cold CCD, 2/3”, |
|
Software |
Smart Cool fluorescence analysis software |
|
