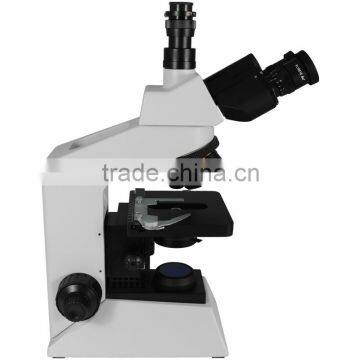

SW-200H Biological Microscope

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

PDV

Model Number:

SW-200H

Beijing PDV Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name PDV

Model Number SW-200H

Theory Biological Microscope

Drawtube Other, Biological Microscope

Model	SW-200H
Optical System	Finite optical system Infinite optical system
Viewing Head	Binocular head, inclined 30 degrees and rotating Trinocular head with light splits 80%:20% 54-75mm interpupillary distance,±5 degrees diopter control
Eyepiece	PL10X/18mm, High eyepoint ,wide field plan eyepiece PL10X/20mm, High eyepoint ,wide field plan eyepiece
Objective	Finite high contrast achromatic objective:4X,10X,40XS,100XSO Finite plan achromatic objective:4X,10X,20X,40XS,100XSO Infinity plan achromatic objective: 4X,10X,20X,40XS,100XSO
Nosepiece	Quadruple/quintuple with click stop
Stage	low position coaxial mechanical stage,size:140x132mm travelrange:76x50mm low position coaxial mechanical stage, size: 150x140mm travel range:76x50mm ,with two sets clips
Focusing	Coaxial coarse and fine focusing adjustment, with limited and tension adjustment, coarse adjustment range: 28mm,fine adjustment precision:0.002mm
Condenser	Critical illumination, rack & Pinion focusable 1.25NA Condenser, fixed center Koehler illumination, rack & Pinion focusable 1.25NA Condenser, adjustable center
Illuminator	Variable voltage 90V~240V,halogen 6V/20W with intensity control Variable voltage 90V~240V, 3W LED lamp with intensity control
Photography adapter	3.2x photo eyepiece ,photo tube(with PK mount)
Video adapter	0.35X CTV, 0.5X CTV, 1.0X CTV
Other options	Phase contrast sliders for condenser(use with phase contrast objective) Dark field slider for condenser Simple polarization (with analyzer and polarizer)
