Product Description
Best Quanlity Intelligent CPU Controlles 58.4 48V 3.5A 5A 7A 8.5A 11A 22A 25A LiFePO4 Battery Pack Charger
| Item Code | Rating Current (+/-0.2A) | Wattage | Voltage |
| LFP16S035A | 3.5A | 200W | 100~240V |
| LFP16S050A | 5A | 300W | 100~120V OR 200~240V |
| LFP16S070A | 7A | 400W | |
| LPF16S085A | 8.5A | 500W | |
| LPF16S110A | 11A | 670W | |
| LFP16S220A | 22A | 1320W | |
| LFP16S250A | 25A | 1470W |
Digital Meter Display
Features
1. 3 Stages Charging: 1st-25% of rating current; 2nd-50% of rating current;3rd-100% of rating current (equalizer).
2. Automatic Re-charging Battery: If the battery voltage <@3.1V/cell after full charged, the charger will automatic re-charging the battery.
3. Short-circuit Protection: Charger O/P cut-off automatically when short circuit
4. Overload Protection: Charger O/P current-limited automatically when overload.
5. Reverse Polarity Protection: Charger O/P cut-off automatically when battery reverse connection.
6. Unique Digitalt Meter Display: Indicating charging voltage, current, battery capacity (percent and AH) and charger status (timer, pre-charge,.....)
7. 3 LED Display: Red(power), gr.een(full charged) & orange(equalizer charge

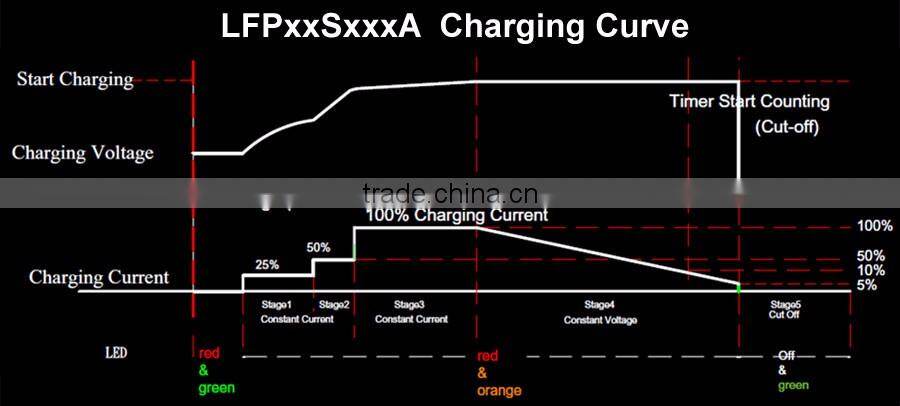

Charging Curve and LED indications
Specification
| Item Code | LFP16S035A | LFP16S050A | LFP16S070A | LFP16S085A |
| Output | ||||
| Equalizer Charge | 58.4V+/-0.1V | |||
| Rating Current (+/-0.2A) | 3.5A | 5A | 7A | 8.5A |
| Pre-charge1(@<2.5V/cell) Timer1 (30minutes) (+/-0.2A) | 0.875A | 1.25A | 1.75A | 2.125A |
| Pre-charge2(@<2.9V/cell) Timer2 (6minutes) (+/-0.2A) | 1.75A | 2.5A | 3.5A | 4.25A |
| < 30% of rating current Timer3 (2hours ) (+/-0.2A) | 1.05A | 1.5A | 2.1A | 2.55A |
| Cut-Off(10% of rating)(+/-0.2A) | 0.35A | 0.5A | 0.7A | 0.85A |
| Wattage | 200W | 300W | 400W | 500W |
| Efficiency | > 85% (at full load) | |||
| Input | ||||
| Voltage | 100~240V | 100~120V OR 200~240V | ||
| Frequency | 47~63Hz | |||
| Protection | ||||
| Battery Reverse | YES, Automatic Shutdown | |||
| Short Circuit | YES, Automatic Shutdown | |||
| Overload | YES, Current Limited | |||
| Cooling Fan | Speed Controlled by Charging Stage | |||
| Dimensions(mm) | 167*103*50 | 190*118*58 | 152*70*225 | 152*70*225 |
| Net Weight | 0.9KG | 1.2KG | 2.1KG | 2.4KG |
| Pcs/Carton | 20 | 8 | 6 | 6 |
| Gross Weight | 27kg | 15kg | 17g | 17kg |
| Item Code | LFP16S110A | LFP16S220A | LFP16S250A |
| Output | |||
| Equalizer Charge | 43.8V+/-0.1V | ||
| Rating Current (+/-0.2A) | 11A | 22A | 25A |
| Pre-charge1(@<2.5V/cell) Timer1 (30minutes) (+/-0.2A) | 2.75A | 5.5A | 6.25A |
| Pre-charge2(@<2.9V/cell) Timer2 (6minutes) (+/-0.2A) | 5.5A | 11A | 12.5A |
| < 30% of rating current Timer3 (2hours ) (+/-0.2A) | 3.3A | 6.6A | 7.5A |
| Cut-Off(10% of rating)(+/-0.2A) | 1.1A | 2.2A | 2.5A |
| Wattage | 670W | 1320W | 1470W |
| Efficiency | > 85% (at full load) | ||
| Input | |||
| Voltage | 100~240V | ||
| Frequency | 47~63Hz | ||
| Protection | |||
| Battery Reverse | YES, Automatic Shutdown | ||
| Short Circuit | YES, Automatic Shutdown | ||
| Overload | YES, Current Limited | ||
| Cooling Fan | Speed Controlled by Charging Stage | ||
| Dimensions | 323*231*106 | 480*335*87.5 | 350*230*210 |
| Net Weight | 4.2KG | 8.5KG | 8.5KG |
| Pcs/Carton | 2 | 1 | 1 |
| Gross Weight | 12kg | 11kg | 11kg |
3S,5S,6S,7S,9S,10S,11S, 20S,32S and other cells is available upon receiving customer's request.
| DC Output Connecting Wire Index | ||
| Connecting Wire (Black & Red) | Fit Item Code | Standard Accessory |
| 16AWG/1.2M | LFP04S100A LFP05S080A LFP08S070A LFP12S045A LFP16S035A LF24S020A | YES |
| 14AWG/1.2M | LFP05S150A LFP08S100A LFP08S140A LFP12S065A LFP12S090A LFP12S110A LFP16S050A LFP16S070A LPF16S085A LFP24S035A LFP24S045A LFP24S055A | YES |
| 12AWG/1.2M | LFP04S200A LFP04S250A LFP05S200A LFP05S250A LFP08S170A | YES |
| LFP12S150A LPF16S110A LFP24S075A | NO | |
| 10AWG/1.2M | LFP04S300A | YES |
| LFP08S230A LFP12S300A LFP16S220A LFP24S150A LFP16S250A LFP24S170A | NO | |
| 8AWG/1.2M | LFP05S350A LFP04S450A LFP08S440A LFP08S500A LFP12S330A | NO |
| 4AWG/1.2M | LFP04S900A LFP04S1000A | NO |
| Connecting Terminal Choices | |||||
| | | | | |
| 1 | 2 | 3 | 4 | 5 | 6 |
Remark: Connecting Wire and Terminal are available upon receiving customer's request.
Operations:
2. Connect the alligator clips to battery terminals (red clip--->positive terminal;
black clip--->negative terminal)
3. Turn on the power switch which is located on the front panel of charger, then
the red LED lits and bi-color LED will confirm the charger's stage. And also the
Digital meter will confirm the charger's O/P voltage, current and battery level.
Notices:
1. This charger was designed for charging LiFEPO4 and Lithium type batteries only.
2. Not to recharging non-rechargeable batteries.
3. The battery charger must only be plugged into an earthed socket-outlet.
4. Always place the charger in well ventiated and dry environments.
5. The battery charger was designed by aluminum housing as itself heat sink,
avoid touching the case for safety purpose because the temperature is about 50
degree C on the case when charging.
Packaging
1.Standard Packing: Standard Brown Paper Box
2.Standard Blister Packing: USD 0.20/set, with our standard color card
Remark: All moulding and tooling charges for customer special packaging will be on customer account.
Customer color card: All artwork, film and printing costs are to be absorbed by customer.
(Minimum printing order is 3K per model.)
Terms & Conditions
TRADE TERMS:
For order F.O.B. Hong Kong.
DELIVERY LEAD TIME:
2-4 weeks after order confirmation and after receipt of L/C or T/T payment.
PAYMENT TERMS:
For order, payment by T/T in advance.
DOCUMENT PROVIDED upon request:
Either "Certificate of Origin - Re-export" or "Certificate of Origin - The People's Republic of China" will be provided on request.
PRODUCT LABEL:
Factory Standard Label: Standard Label
Customer Private Label: All artwork, film and printing costs are to be paid by customer.
(minimum printing order is 2K per model)
WARRANTY:
1. We hereby warrant that our products have normal defect ratio 0-2%.
2. If a single item’s defect rate is beyond 2%. That will be seen as our quality anomaly; and all defective products will be returned for replacement with new ones,
2. If a single item’s defect rate is beyond 2%. That will be seen as our quality anomaly; and all defective products will be returned for replacement with new ones,
the return freight to be borne by clients,and the back freight done by us.
3.Defective batteries with defect ratio within 2%. * No need to return and replace. Just refund clients by means of subsidy. * Refund rate: 3% * Refund amount: monthly total order amount x 3% * The subsidized: the clients with currently monthly orders totaling over US$1,000 * Refund time: in the first order for next month.
3.Defective batteries with defect ratio within 2%. * No need to return and replace. Just refund clients by means of subsidy. * Refund rate: 3% * Refund amount: monthly total order amount x 3% * The subsidized: the clients with currently monthly orders totaling over US$1,000 * Refund time: in the first order for next month.
