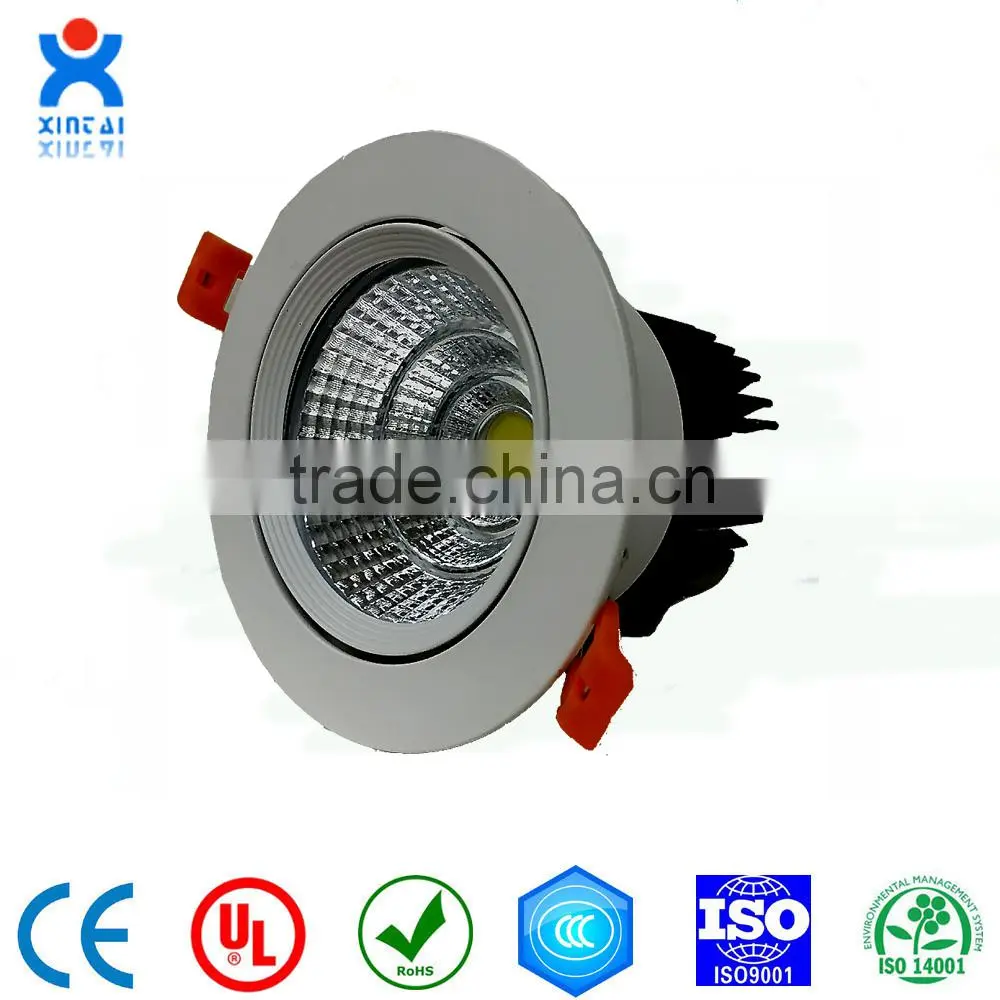

1. Recessed COB LED Downlights angle adjustable 20W
Feature:
1. Use high purity aluminum, having excellent heat dissipation
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4.Energy-saving and high efficient LED driver.
5. Use high purity aluminum, having excellent heat dissipation
6.Use COB LED Chip High luminous flux, Low thermal resistance, long lifespan 50000 hours.
7. High CRI (Ra>80),showing the most intuitive and clear lighting effects, no flicking, adjustable angle.
Technical parameter:
|
Model No Description |
XT-DB-012 |
XT-DB-015 |
XT-DB-020 |
Power(W) |
12W±10% |
15W±10% |
20W±10% |
Input voltage(V) |
AC90-260 50/60Hz |
AC90-260 50/60Hz |
AC90-260 50/60Hz |
Power factor (PFC) |
>0.95 |
>0.95 |
>0.95 |
Initial luminous(LM) |
>840 |
>1050 |
>1400 |
Light efficiency(LM/W) |
>70 |
>70 |
>70 |
Beam angle(Θ) |
15,24,38,60 |
15,24,38,60 |
15,24,38,60 |
CCT(K) |
2700-6500K |
2700-6500K |
2700-6500K |
CRI(Ra) |
>80 |
>80 |
>80 |
Color of lamp body |
White / White+black |
White / White+black |
White / White+black |
Angle adjustable |
12º adjustable |
12º adjustable |
12º adjustable |
Dimmable |
---- |
---- |
---- |
Materials |
Aluminum |
Aluminum |
Aluminum |
IP Rate |
IP20 |
IP20 |
IP20 |

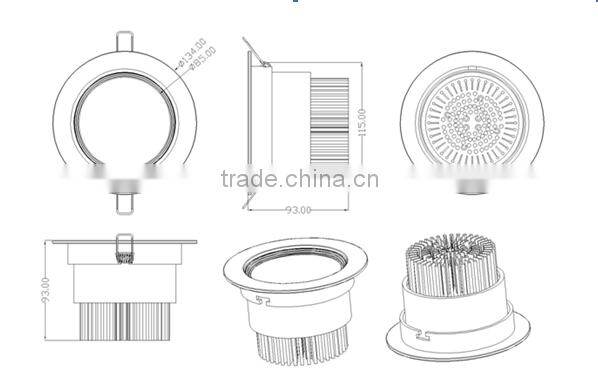

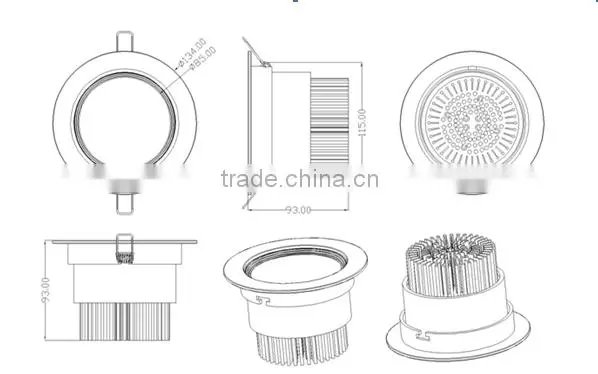

Lamp size(mm) |
Φ138*H93 |
Φ138*H93 |
Φ138*H117 |
Cut hole(mm) |
Φ120 |
Φ120 |
Φ120 |
Working temperature |
-25°~+45° |
-25°~+45° |
-25°~+45° |
Storage temperature |
-30°~+50° |
-30°~+50° |
-30°~+50° |
Warranty |
3 years |
3 years |
3 years |

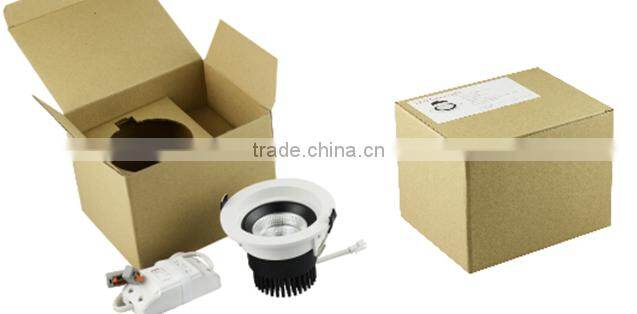

2.Package

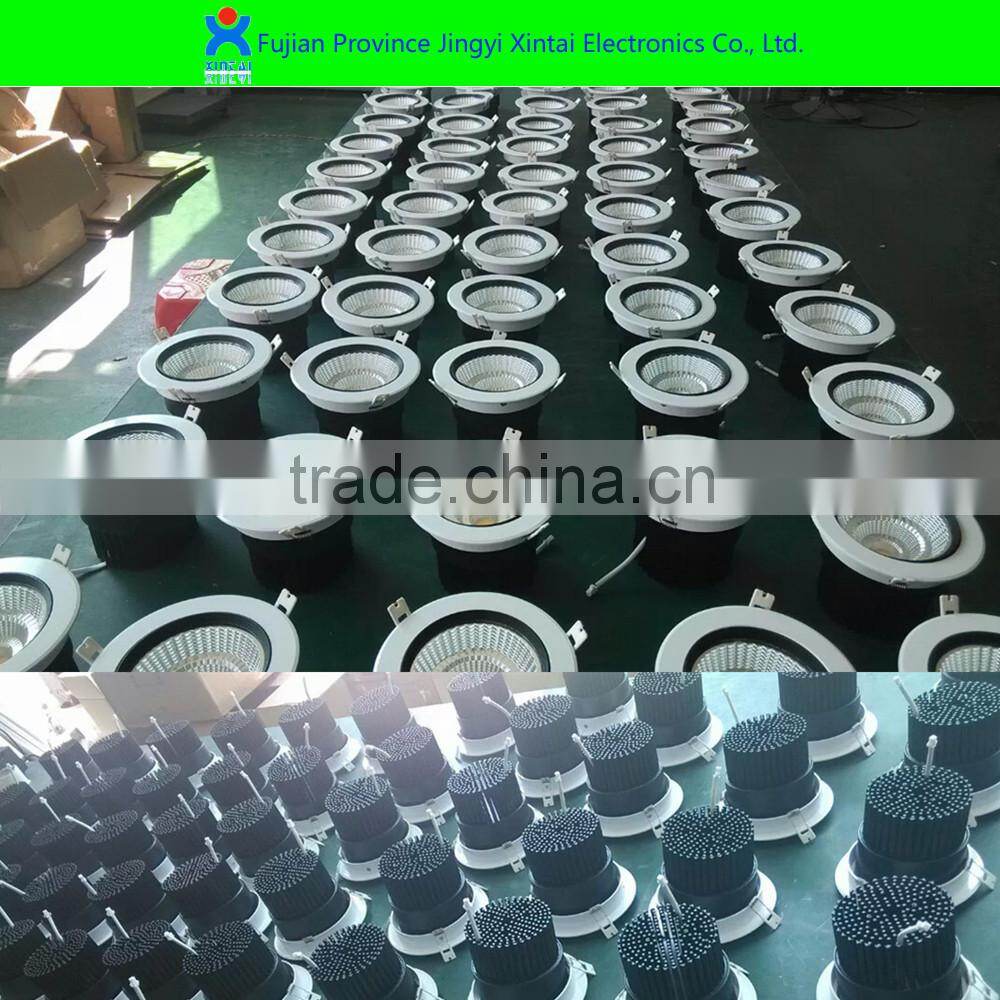

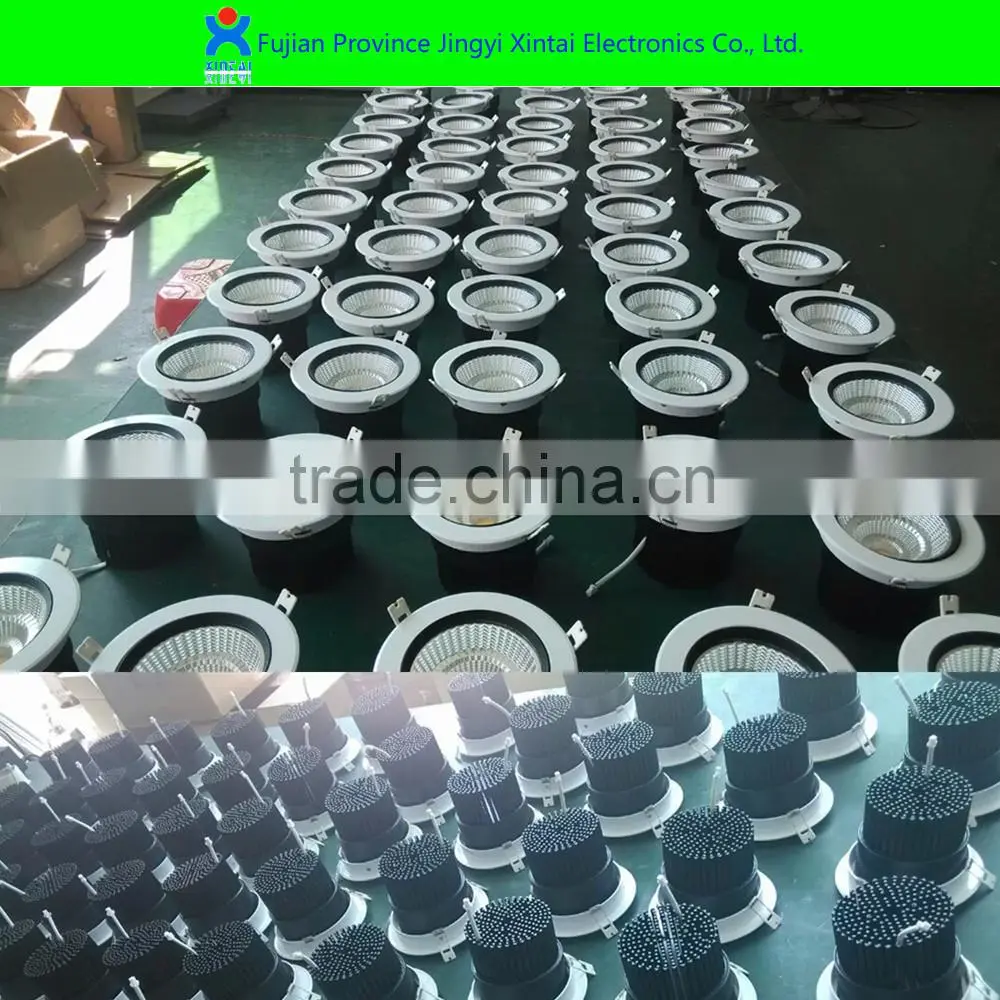

3.Factory
4.Certification
| 5.Our Services |
|
1). OEM/ODM Service Our strong and professional R&D dept. can develop different products for different target prices and different requirements.
|
|
2). Free sample service Samples can be free. The cost for any samples can be deducted from the amount in quantity order.
|
|
3). Direct factory, Competitive price We are the real manufacturer.Factory price, various products we can make for you.
|
|
4). Quality control We have a strict quality control system, Professional QC team.
|
|
5). Custom packaging service No matter the inner packing or the outer carton. We can design as your request.
|
|
6). Quick response All requests will be reply within 12 hours.
|
|
Contact Us at Any Time Company Name: Fujian Province Jingyi Xintai Electronics Co.,Ltd. Factory: Xiandian Industrial Zone, Wuyishan, Nanping, Fujian, China Xiamen Branch: A306,No.1505, Fanghu North 2nd Rd. Huli,Xiamen,China Tel: 0086 0592 5717969 Skype: fw003(at)wyxintai(dot)com
|
|
"Quality, Honesty, Service and Innovation" is our core value
Warmly welcome to visit our factory.
|
