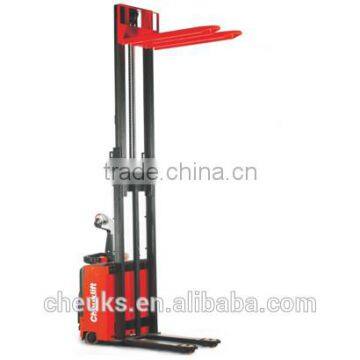

Perfect Choice Electric Stacker CL1529/1534(FFL)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Labor-saving Electric Stacker CL1529/1534(FFL)NegotiableMOQ: 1 Set -
Hot Sale Electric Stacker FBT Series Made In ChinaNegotiableMOQ: 1 Set
-
High Quality Electric Stacker FBT SeriesNegotiableMOQ: 1 Set
-
High Level Electric Stacker FBT SeriesNegotiableMOQ: 1 Set
-
Good Performance Electric Stacker FBT SeriesNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Shanghai, China
Brand Name
Cheuk's
Model Number
CL1529/1534(FFL)
Dimension(L*W*H)
1720*777*3000mm
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided
The Product intro of electric stacker CL1529/1534(FFL)
Smooth travel and lift with excellent controls to reduce product damages and increase productivity.
Lift limit switch operates at maximum lift heights to shut off pump motor.A heavy duty 24 volt electric system provides good travel and lift speeds.High quality hydraulic pump assures very little noise,maximum efficiency and durability.
The specification of electric stacker CL1529/1534(FFL)
| Up to h3 mm | ACTUAL CAPACITY (Q) kg | |
| 2500 | 1200 | 800 |
| 2900 | 1000 | 650 |
| 3200 | 800 | 500 |
| Load centre distance (C)mm | 600 | 700 |
| Identification | 1.1 | Model | unit | CL1529 | CL1529FFL | CL1534 | CL1534FFL |
| 1.2 | Drive:electric(battery or mains),diesel, petrol,fuel gas,manual | electric | |||||
| 1.3 | Type of operation:hand,pedestrian, standing ,seated, order-picker |
Pedestrian | |||||
| 1.4 | Load Capacity /rated load | Q (t) | 1.5 | ||||
| 1.5 | Load center distance | C mm | 600 | ||||
| 1.6 | Load distance, centre of drive axle to fork | X mm | 678 | ||||
| 1.7 | Wheelbase | y mm | 1183 | 1168 | |||
| Weights | 2.1 | service Weight | Kg | 1020 | 1040 | 1120 | 1140 |
| 2.2 | Axle loading, laden front/rear | Kg | 1195/1325 | 1205/1335 | 1245/1375 | 1225/1385 | |
| 2.3 | Axle loadings, unladen front/rear | Kg | 755/265 | 770/270 | 826/295 | 840/300 | |
| Wheels, Chassis |
3.1 | Tyres:solid rubber, superelastic, pneumatic, polyurethane) |
polyurethane | ||||
| 3.2 | Tyre size, front | 250x78 | |||||
| 3.3 | Tyre size, rear | 80x70 1) | |||||
| 3.4 | Additional wheels(dimensions) | 150x54 | |||||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+2/4 | |||||
| 3.6 | Track width,front | b10(mm) | 685 | ||||
| 3.7 | Track width,rear | b11(mm) | 390/515 | ||||
| Basic Dimensions |
4.1 | Lowered mast height | h1(mm) | 1950 | 1950 | 1695 | 1695 |
| 4.2 | Free lift | h2(mm) | 144 | 1472 | - | 1104 | |
| 4.3 | Lift height | h3(mm) | 2814 | 2814 | 3314 | 3314 | |
| 4.4 | Extended mast height | h4(mm) | 3298 | 3303 | 3943 | 3943 | |
| 4.5 | Height of tiller in drive position min./max. | h14(mm) | 985/1365 | ||||
| 4.6 | Lowered height | h13(mm) | 86 | ||||
| 4.7 | Overall length | l1(mm) | 1940 | 1925 | |||
| 4.8 | Length to face of forks | l2(mm) | 790 | 775 | |||
| 4.9 | Overall width | b1(mm) | 805 | ||||
| 4.1 | Fork dimensions | s/e/l | 60/80/1150 | ||||
| 4.12 | Width over forks | b5(mm) | 570/695 | ||||
| 4.13 | Ground clearance, center of wheelbase | m2(mm) | 26 | ||||
| 4.14 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2360 | 2345 | |||
| 4.15 | Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2340 | 2323 | |||
| 4.16 | Turning radius | (mm) | 1480 | 1465 | |||
| Performance Data |
5.1 | Travel Speed, laden/unladen | km/h | 5.1/5.4 | |||
| 5.2 | Lift speed, laden/unladen | mm/s | 105/170 | ||||
| 5.3 | Lowering speed, laden/unladen | mm/s | 100/95 | ||||
| 5.4 | Max.gradient performance, laden/unladen | % | 6/12 | ||||
| 5.5 | Service brake | Electromagnetic | |||||
| E-Motor | 6.1 | Drive motor rating s2 60min | kw | 1.2 | |||
| 6.2 | Lift motor rating at s3 15% | kw | 3 | ||||
| 6.3 | Battery acc. To DIN, no | 3PZS | |||||
| 6.4 | Battery voltage, norminal capacity | V/Ah | 2x12/210 | ||||
| Others | 7.1 | Type of drive control | MOSFET Control | ||||
| 7.2 | Sound level at driver’s ear acc.to EN12053 | dB(A) | 67 | ||||
