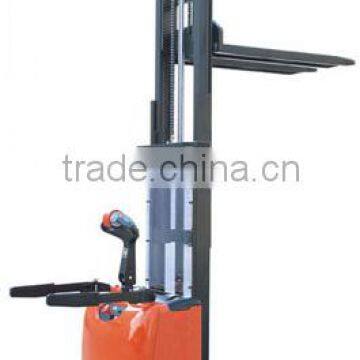

Professional Electric Stacker CLB Series

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	Cheuk's	Model Number	CLB series
Dimension(LWH)	17207773000mm	Certification	CE
Warranty	1 year	After-sales Service Provided	No overseas service provided

Product Description

The product intro of Electric Stacker CLB series

This specification sheet according to VDI regulation 2198 only provides technical values for the standard truck. Non-standard types, different masts, additional equipment, etc. could produce other values. Right reserved for technical changes and improvements.

The specification of Electric Stacker CLB series

Residual Capacity at different lifting height

1KG=2.2LB 1INCH=25.4MM

Up to h3 mm	ACTUAL CAPACITY (Q) kg
2500	1250	850
2900	1100	700
3200	1000	600
3600	800	500
Load centre distance (C)mm	600	700

Identification	1.1	Model	unit	CLB 1216	CLB 1229	CLB1229 FFL	CLB 1232	CLB 1236
	1.2	Drive:electric(battery or mains),diesel, petrol,fuel gas,manual		electric
	1.3	Type of operation:hand,pedestrian,stand ing, seated, order-picker)		Pedestrian
	1.4	Load Capacity /rated load	Q (t)	1.25
	1.5	Load center distance	C mm	600
	1.6	Load distance, centre of drive axle to fork	X mm	815	796
	1.7	Wheelbase	y mm	1278
Weights	2.1	service Weight	Kg	810	890	910	910	930
	2.2	Axle loading, laden front/rear	Kg	980/ 1080	1020/ 1120	1030/ 1130		1040/ 1140
	2.3	Axle loadings, unladen front/rear	Kg	600/ 210	655/ 235	670/ 240	670/ 240	685/ 245
Wheels Chassis	3.1	Tyres:solid rubber, superelastic, pneumatic, polyurethane)		polyurethane
	3.2	Tyre size, front		252x89
	3.3	Tyre size, rear		80x70 1)
	3.4	Additional wheels(dimensions)		150x54
	3.5	Wheels, number front/rear(x=driven wheels)		1x+2/4
	3.6	Track width,front	b10(mm)	650	670
	3.7	Track width,rear	b11(mm)	390/505
Basic Dimensions	4.1	Lowered mast height	h1(mm)	1976	1946	1946	2096	2296
	4.2	Free lift	h2(mm)	-	158	1490	158	158
	4.3	Lift height	h3(mm)	1520	2820	2820	3120	3520
	4.4	Extended mast height	h4(mm)	1976	3276	3276	3576	3976
	4.5	Height of tiller in drive position min./max.	h14(mm)	940/1320
	4.6	Lowered height	h13(mm)	81
	4.7	Overall length	l1(mm)	1889	1908
	4.8	Length to face of forks	l2(mm)	739	758
	4.9	Overall width	b1(mm)	890
	4.10	Fork dimensions	s/e/l	60/180/1150
	4.11	Width over forks	b5(mm)	570/685
	4.12	Ground clearance, center of wheelbase	m2(mm)	26
	4.13	Aisle width for pallets 1000x1200 crossways	Ast(mm)	2418	2424
	4.14	Aisle width for pallets 800x1200 lengthways	Ast(mm)	2345	2358
	4.15	Turning radius	Wa(mm)	1590
Performance Data	5.1	Travel Speed, laden/unladen	km/h	5.2/5.5
	5.2	Lift speed, laden/unladen	mm/s	110/170
	5.3	Lowering speed, laden/unladen	mm/s	120/130
	5.4	Max.gradient performance, laden/unladen	%	6/12
	5.5	Service brake		Electromagnetic
E-Motor	6.1	Drive motor rating s2 60min	kw	1.5
	6.2	Lift motor rating at s3 15%	kw	2.2
	6.3	Battery acc. To DIN, no		3PZS
	6.4	Battery voltage, norminal capacity	V/Ah	24/210
Others	7.1	Type of drive control		MOSFET Control
Others	7.2	Sound level at driver’s ear acc.to EN12053	dB(A)	67
