The product intro of Hand Stacker--HSM series
Stronger motor,Larger battery 12Ah,Low voltage protection.
A range of highly manoeuvrable,lightweight lifts,designed to take the strain out any liftingjob from ground level to over shoulder height.
Ideal for use in narrow aisles and confined spaces.
Perfect for all applications frompharmaceutical to catering,from packing line to food processing,from warehouse to office,
kitchens,laboratories,retail outlets,etc...
Manual models:Operated via a manual hand winch.
Auto brake system prevents uncontrolled lowering.
Electric models:Automatic electronic overload protection system ensures safety.
Maintenance free and sealed batteries,automatic charger.

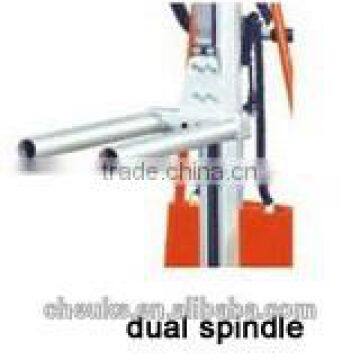

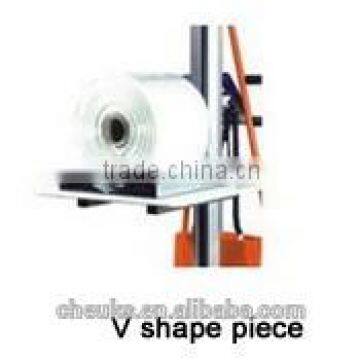

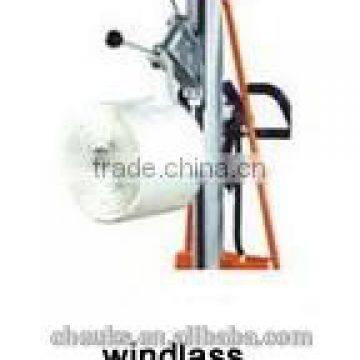

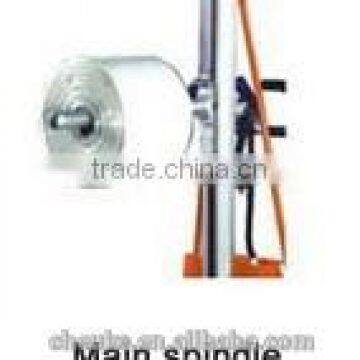

Quick change attachment options available.
Conforms to EN1757,CE marked.
The specification of Hand Stacker--HSM series
| Model | HSM100 | HSM200 | HSE100A | HSE150A | |
| Type | Manual | Electric | |||
| Capacity | (kg) | 100 | 200 | 100 | 150 |
| Load Centre | (mm) | 235 | 235 | 235 | 235 |
| Max.Fork height | (mm) | 1500 | 1500 | 1700 | 1500 |
| Min.Fork height | (mm) | 130 | 130 | 130 | 130 |
| Platform Size | (mm) | 470×600 | 470×600 | 470×600 | 470×600 |
| Overall | (mm) | 840×600×1830 | 870×600×1920 | 870×600×1990 | 870×600×1790 |
| Load Wheel | (mm) | 75 | 75 | 75 | 75 |
| Steeing Wheel | (mm) | 125 | 125 | 125 | 125 |
| Batter,Service Free | — | — | 24/12Ah | 24/12Ah | |
| Net Weight | (kg) | 50 | 60 | 66 | 63 |
