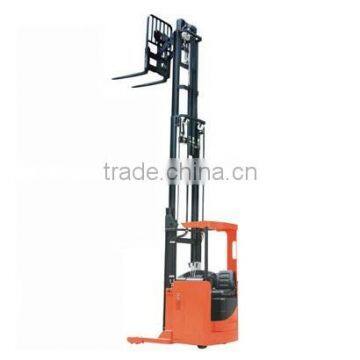

Power Stacker --RSP13
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shanghai, China
Brand Name
Cheuk's
Model Number
RSP13
Dimension(L*W*H)
1800*850*2040mm
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided
The basic information of Power Stacker--RSP13
1.High efficiency and easy to steer
2.Ride-on design reduce fatigue
3.ZAPL controller makes travel and lifting stable and smooth
4.Safety shut-off valve and slow lowering function ensures operating safety.
5.Smart and compact design,high quality European mast
6.Tilting up to 2°,down to 4°,perfectly meet need for cargo loading and unloading
7.Scissor type reach truck with controllable speed makes it convenient and stable to operate .
The specification of Power Stacker--RSP13
1KG=2.2LB 1INCH=25.4MM
| Identifica tion |
1.1 | Model | unit | RSP13 |
| 1.2 | Power(battery,diesel,petrol,natural gas,manual) | electric | ||
| 1.3 | standing,Manner of operation:hand,pedestran, seated,sorting-picker |
Seated-on | ||
| 1.4 | Load Capacity | Q kg | 1360 | |
| 1.5 | Load Centre distance | C mm | 600 | |
| 1.6 | Distance between fork backrest and frond wheel | X mm | 394 | |
| 1.7 | Wheelbase | y mm | 1305 | |
| Weights | 2.1 | Weight(including battery) | kg | 2600 |
| Wheels | 3.1 | Tyres(rubber,high-elastomer, pneumatic,polyurethane | polyurehtane | |
| 3.2 | Wheel size drive side | mm | 310×125 | |
| 3.3 | Wheel size load side | mm | 127×70 | |
| 3.4 | Castor wheels(dimensions) | 150×60 | ||
| 3.5 | Wheels, number(x=drive wheel)drive side/load side | 1×-1/4 | ||
| 3.6 | Track width(front)drive side | b10 mm | 668 | |
| 3.7 | Track width(rear)load side | b11 mm | 1082 | |
| Basic Dimensions |
4.1 | Closed mast height | h1 mmm | 2472 |
| 4.2 | Free lift height | h2 mm | 1820 | |
| 4.3 | Lift height | h3 mm | 5330 | |
| 4.4 | Extended mast height | h4 mm | 6550 | |
| 4.5 | height of guard roof of drive cab | h6 mm | 2160 | |
| 4.6 | Height of stand board | h7 mm | 960 | |
| 4.7 | Height of steering wheel | h14 mm | 1180 | |
| 4.8 | The lowest height of fork | h13 mm | 60 | |
| 4.9 | Overall length | l1 mm | 2160 | |
| 4.10 | Length between fork backrest and vehicle body | l2 mm | 1245 | |
| 4.11 | Overall width | b1 mm | 1050 | |
| 4.12 | Reach | l5 | 560 | |
| 4.13 | Fork dimensions | s/e/l mm | 40×100×950 | |
| 4.14 | Fork carriage width | b3 mm | 760 | |
| 4.15 | Overall fork width | b5 mm | 200-720 | |
| 4.16 | Clearance between mast-base and ground | m1 mm | 50 | |
| 4.17 | Working aisle with 800×1200 pallet (1200 along with fork) |
Ast mm | 2780 | |
| 4.18 | Swerve radius | Wa mm | 1680 | |
| Performance | 5.1 | Speed Load/without load | km/h | 8.5/7.4 |
| 5.2 | Lifting speed Load/without load | mm/s | 105/168 | |
| 5.3 | Lowering speed Load/without load | mm/s | 260/270 | |
| 5.4 | Gradeability Load/without load | % | 6/10 | |
| 5.5 | Brakes | electric |
