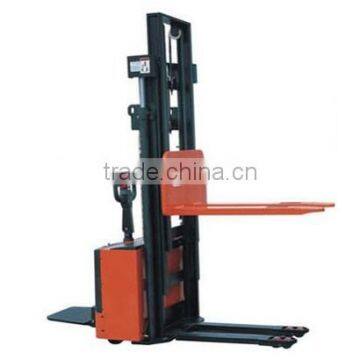

Power Stacker --CGK Series

Power Stacker --CGK Series thumbnail-1
Power Stacker --CGK Series photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Contact Supplier Request Quote Chat Now
Shanghai Cheuk's Logistics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name Cheuk's
Model Number CGK series
Dimension(L*W*H) 1800*850*2040mm
Certification CE
Warranty 1 year
After-sales Service Provided Overseas third-party support available
The basic information of Power Stacker--CGK series


Economic, easy
Large tonnage and high travel power stacker
Good looking, equiped with pedals and barriers, easy to operate and safe.
Mast of double cylinders, broad vision
Lifting height is beyond 4.5m;with outriggers;stable
Controlled by MOS
Low energy, easy maintenance, low nosie


The specification of Power Stacker--CGK series



1KG=2.2LB 1INCH=25.4MM



Identification Model  unit CGK2045 CGK2053 CGK2055 CGK2058
Power(battery,diesel,petrol, natural gas,manual) electric
standing,Manner of operation:hand,
pedestran,seated,sorting-picker		 standing
Load Capacity Q(kg) 2000 2000 2000 2000
Load Centre distance c(mm) 500 500 500 500
Distance between fork  backrest and frond
wheel		 x(mm) 770 770 770 770
Wheelbase Y(mm) 1255 1255 1255 1255
Weight Weight(including battery) kg 1600 1600 1600 1600
Axle loading,laden front/rear kg 1506/2094
Axle loading,unladen  front/rear kg 1160/440 1160/440 1160/440 1160/440
Wheels Types Tyres(rubber, high-elastomer, pneumatic,
polyurethane		 polyurehtane
Wheel size drive side φ250×80 φ250×80 φ250×80 φ250×80
Wheel size load side φ98×82 φ98×82 φ98×82 φ98×82
Castor wheels(dimensions) φ150×60 φ150×60 φ150×60 φ150×60
Wheels, number(x=drive wheel)
drive side/ load side		 1x+2/2 1x+2/2 1x+2/2 1x+2/2
Track width(front)drive side b10(mm) 886 886 886 886
Track width(rear)load side b11(mm) 1280/1680 1280/1680 1280/1680 1280/1680
Dimensions Height of steering wheel h14(mm) 1057/1339 1057/1339 1057/1339 1057/1339
The lowest height of fork h13(mm) 70 70 70 70
Overall length  l1(mm) 1875 1875 1875 1875
Length between fork  backrest and vehicle body l2(mm) 805 805 805 805
Overall width  b1(mm) 1392-1792 1392-1792 1392-1792 1392-1792
Overall fork width  b5(mm) 240-800 240-800 240-800 240-800
Clearance between  mast-base and ground m2(mm) 65 65 65 65
Clearance between mast-base and ground Ast(mm) 2509 2509 2509 2509
Working aisle with 800×1200 pallet (1200 along with fork) Ast(mm) 2484 2484 2484 2484
Swerve radius Wa(mm) 1629 1629 1629 1629
Performance Speed Load/without load Km/h 4.5/5.6 4.5/5.6 4.5/5.6 4.5/5.6
Lifting speed Load/without load m/s 0.09/0.11 0.09/0.11 0.09/0.11 0.09/0.11
Lowering speed     Load/without load   m/s 0.12/0.09 0.12/0.09 0.12/0.09 0.12/0.09
Gradeability Load/without load % 5/10 5/10 5/10 5/10
Brakes electrom agnetic
Motor Drive motor kW 0.9 0.9 0.9 0.9
Lifting motor kW 3 3 3 3
Battery voltage,normal capacity K5 V/Ah 24/275 24/275 24/275 24/275
Battery weight Kg 268 268 268 268
Battery dimensions mm 968×206×505
Other Noise level at operator’s ears dB(A) 70 70 70 70









Company Information



 Power Stacker --CGK series

Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.



Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
