Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Contact Supplier Request Quote Chat Now
Shanghai Cheuk's Logistics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name Cheuk's
Model Number HDF series
Dimension(L*W*H) 1720*777*3000mm
Certification CE
Warranty 1 year
After-sales Service Provided No overseas service provided

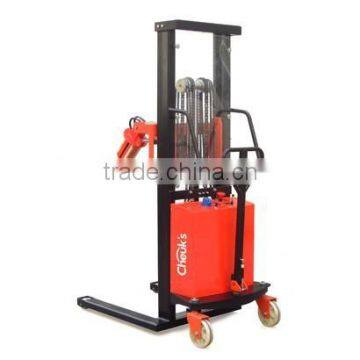

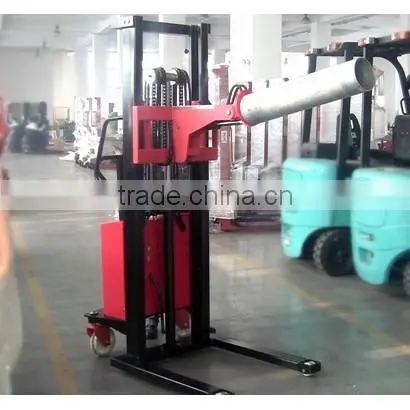

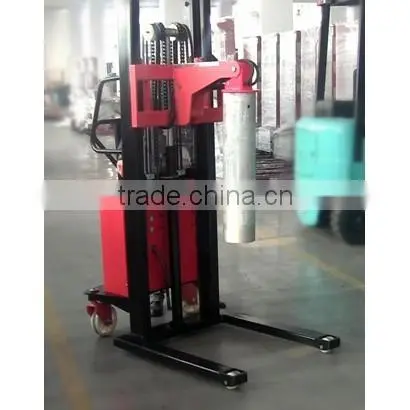

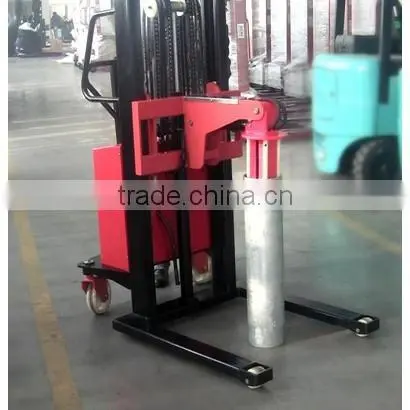

The product name: Semi electric Stacker- HDF series







The specification of semi electric stacker HDF series

1.Compact intructure, good looking and delicated design;
2.High quality hydrapower hydralic pump station, strong power, maintenance free battery;
3.“C”type steel mast, firm and safe;
4.Hydralic firmly grasp structrue,nimble and quick with tilting function;
5.Stoving varnish surface.




Model unit HDF0518
Rated Capacity Kg 500(custom-made)
Load center distance C mm 530
Min lifting height H1 mm 500
Max lifting height H2 mm 1800(custom-made)
Overall dimensions L×W×H mm 1380×800×2030
Fork size L1×W1 mm 800×100
Pipe diameter D mm 150(custom-made)
Goods outside diameter mm <500
Tilting angle Q   105
Motor power   1.5kw
Battery   12V/120Ah
Weight Kg 420





About Shanghai Cheuk's Logistics Technology Co.,Ltd.

Shanghai Cheuk's Logistics Technology Co.,Ltd.is subordinated to Shanghai Cheuks Group company, located in the modern and international city, Shanghai, focuses on R&D, manufacturing, selling and service of material handling equipments and construction machinery.

Cheuk's provides 15 series products with more than seven hundred models, including aerial work platform, pallet truck, stacker, forklift truck, tow tractor, hand truck, drum picker,etc. Cheuk's pays attention to all the links of production by supervising in raw material purchase, the working procedure and quality control test. Moreover, Cheuk's  is granted ISO9001, ISO14001 and ISO18001 authentication certificate. Most of the products are granted CE or GS certificates by TÜV Rheinland Group.

With high quality, best price of product and good service, Cheuk's  becomes more and more popular in domestic market as well as international market. In addition, Cheuk's products have been widely used in no less than a hundred countries in various areas, including construction of road, railway, bridge, airport, underground, wharf, public works, communication system, shipbuilding, advertisement, supermarket, factory and so on. Cheuk's gets a high reputation in its area since customers have great experience by using our products.

Cheuk's  devotes to developing highly innovative products, professional services and creative solutions for our customers all over the world.

Give us an opportunity, we will lifting your future
