high standarder selling direct factory accept custom size turbo intercooler hose
Company main products
Applications
Our silicone hoses are widely applied to Auto performance
Heavy DutyTruck, Coach(Bus), Marine, Industrial, Construction,
especially forsystems below:
- CAC (Charge air cooler system): cool side and hot side
- Coolant system: Hose raditor upper and lower(Inlet and out outlet)
- Turbo Charger System: Higher temperation turbo charger application
Installation drawing
Product Description
Universal Standard sizes:
- Largest standard size range, amazing blue and black color in stock.
- Customized size, logo and color are welcomed too.
- Material choice: Silicone/Polester. Silicone/Aramid (Fluro liner if oil or fuel resistance is required)
- Ply of fabric reinforcement: 3 ply to 6 ply
| Hose types | ID(mm) Minimum to Maximum | ID( inch) Minimum to Maximum | |
| Straight 1 Meter | 6.5 -- 152 | 0.25"-- 6" | |
| Staight Coupler | 6.5 -- 152 | 0.25"-- 6" | |
| Straight Reducer | 13 -- 152 | 0.5" -- 6" | |
| Straight 1 Hump | 51 -- 102 | 2" -- 4" | |
| Straight 2 Humps | 51 -- 102 | 2" -- 4" | |
| Elbow 23 Degree | 51 -- 102 | 2" -- 4" | |
| Elbow 45 Degree | 6.5 -- 152 | 0.25" --6" | |
| Elbow 67 Degree | 51 -- 102 | 2" -- 4" | |
| Elbow 90 Degree | 6.5 -- 152 | 0.25" --6" | |
| Elbow 135 Degree | 16 -- 89 | 0.63 --3.5" | |
| Elbow 180 Degree | 16 -- 89 | 0.63" --3.5" | |
| Tee (3 Way) | 38 --76 | 1.5" -- 3" | |
| Bellows with 3 rings | 57 --152 | 2.25"-- 6" | |
| Bellows with 4 rings | 63 --152 | 2.5" --6" | |
| Bellows with 5 rings | 63 --152 | 2.5" --6" |
Product Details
Material: 100% pure silicone rubber+high quality polyester |
Application: turbo boost/racing/tuning/intercooler/turbo/air intake/wastegate/cooling system |
Thickness:4mm--6mm |
Ply:3--6 |
Length:50mm-2000mm |
ID:3mm--150mm |
Color: red, blue, black, pink, purple, yellow, green, orange, white, transparent and other colors |
Working Pressure: 1.2 Mpa |
Bursting Pressure: 0.4~0.9 Mpa |
Operating Temperature: -20℃ to ~ + 260 ℃ |
Quality Quarantee: 5 years |

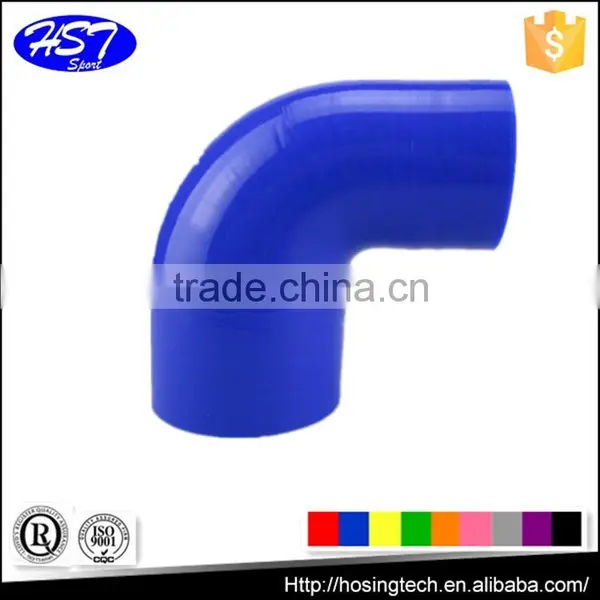

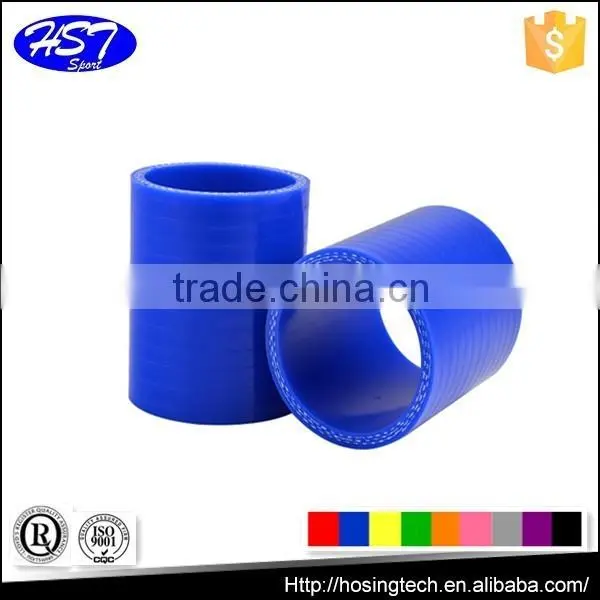

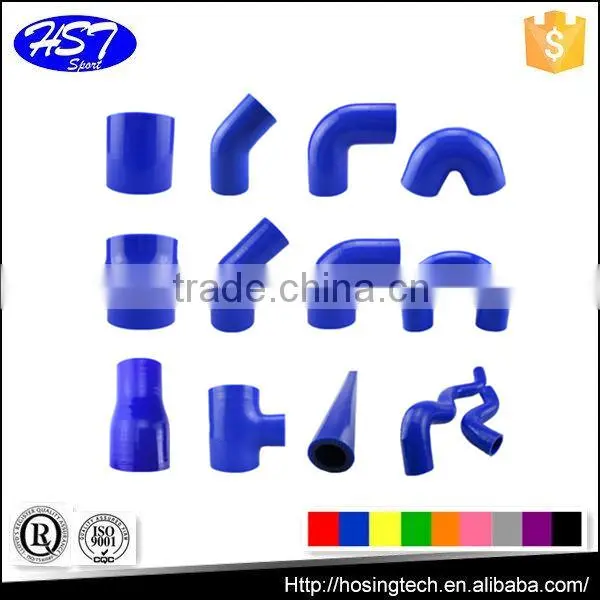

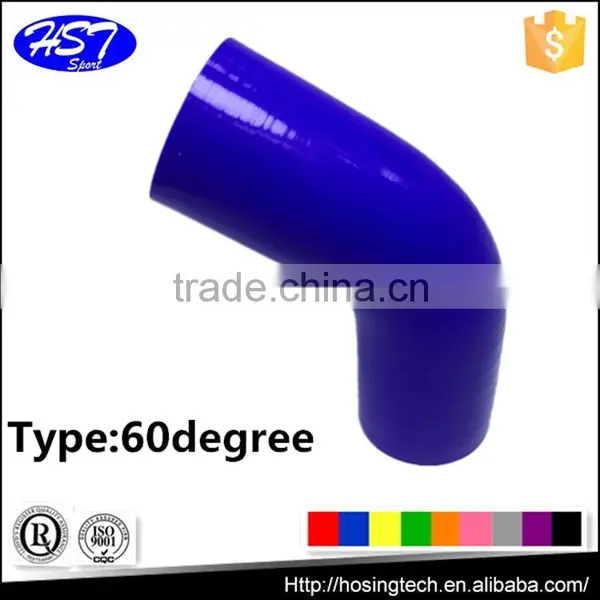

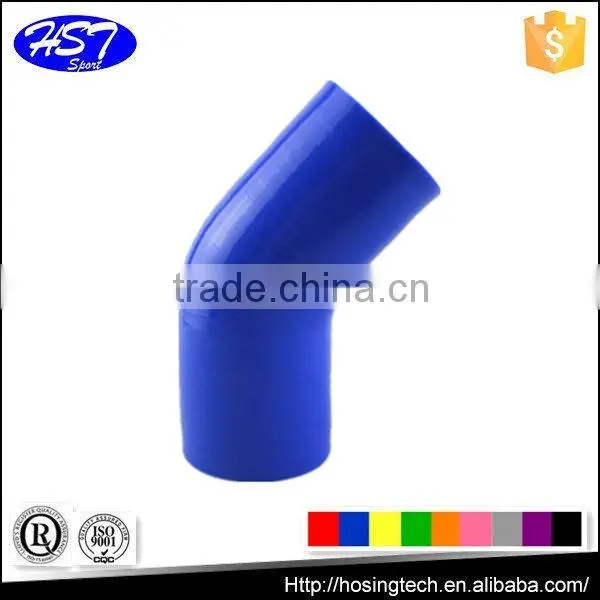

Product Pictures
We accept custom dual color
Material details :
·100% pure silicone and hexagonal polyester.(PS:Hexagonal polyester we used is different from the
common polyester, it has strong elasticity,so,not easy to break)
Certifications
Package of silicone hose
Company information
FAQ
If you have any other questions, please do not hesitate to contact us!
