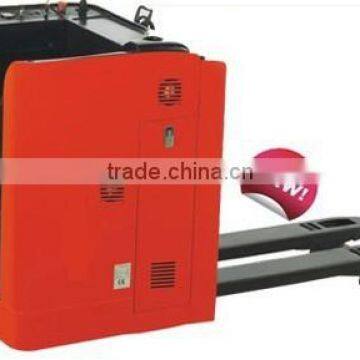

Best Selling Power Pallet Truck PSP25

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	PSP25		Lift Drive / Actuation	Electric Motor

Product Description

The product intro of Power Pallet Truck PSP25

1.Suitable for factory, workshop and ware house. With ergonomically design, the operator can rely on the brake rest to reduce fatigue.

It can steering the direction at a range of 180 degree. The direction indicator makes the steering easily and effortless

2.Drive motor:3.0KW,driving powerful, accelerate fast.

3.High loading capacity,small turning radius, perfect for limited space use.

4.AC driving system and steering system of ZAPI makes the truck perform better in traveling and steering, and ensures long service life of battery.

5.MOSFET AC controller grantees that driving and lifting stably and accurately. Excellent speedchanging system.

The specification of Power Pallet Truck PSP25

Characteristics	1.1	Model	unit	PSP25
	1.2	Power supply(electric,diesel,petrol,gas, mains electric)		electric
	1.3	type of operation(hand, pedestrian,stand on, rider seated, order picker)		stand on
	1.4	Capacity /rated load	Q kg	2500
	1.5	Load center distance	C mm	600
	1.6	Load distance	X mm	957/1027
	1.7	Wheelbase	Y mm	1515/1585
Weight	2.1	Weight(including battery)	kg	970/980
	2.2	Axle loadings laden drive end/load end	kg	1620/1850
	2.3	Axle loadings unladen drive end/load end	kg	780/200
Wheels	3.1	Tires (Rubber,Vulkollan,pneumatic,polyurethane)		polyurethane
	3.2	Tire size drive end	mm	254×82
	3.3	Tire size load end	mm	84×93
	3.4	Castor wheels		149×55
	3.5	Wheel number(x=drive wheel) drive end/load end		1×+2/4
	3.6	Track width(front) drive end	b10 mm	441
	3.7	Track width(rear) load end	b11 mm	380/505
Dimensions	4.1	Lift height	h3 mm	130
	4.2	Tiller height	h14 mm	1290
	4.3	Fork height lowered	h13 mm	85
	4.4	Overall length	l1 mm	2025/2095
	4.5	Length to front face to fork	l2 mm	875
	4.6	Overall width	b1 mm	796
	4.7	Fork dimensions	s/e/l mm	60/180/1150(1220)
	4.8	Overall fork width	b5 mm	560/685
	4.9	Floor clearance, centre of wheelbase	m2 mm	25
	4.10	Working aisle with 800x1200 pallet lengthwise	Ast mm	2533/2570
	4.11	Turning radius	Wa mm	1865/1935
Performance	5.1	Travel speed laden/unladen	km/h	8.7/9.0
	5.2	Lifting speed laden/unladen	mm/s	33.7/45
	5.3	Lowering speed laden/unladen	mm/s	35.7/18.7
	5.4	Gradeability laden/unladen	%	6.5/14
	5.5	Brakes		electric-magnetic
Electric Motor	6.1	Drive motor power	kw	3.0(AC)
	6.2	Lifting motor	kw	2.2
	6.3	Battery acc.to DIN43531/35/36A,B,C,no)		4VBS
	6.4	Battery voltage, norminal capacity K5	V/Ah	24/360
	6.5	Battery weight +/-5%	kg	300
	6.6	Battery dimensions l/w/h	mm	632/231/672
Other	7.1	Type of drive control		MOSFET Control AC
	7.2	noise peak at operator’s ear	dB(A)	<70
	7.3	Turning angle	°	180

82 height single wheel 80x93
