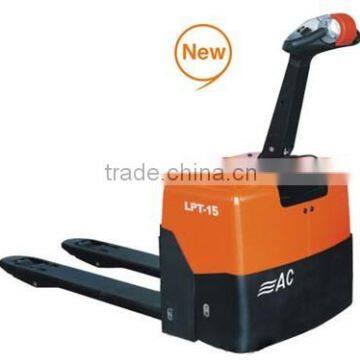

Brand New Power Pallet Truck WP-LPT15(AC)

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	WP-LPT15(AC)		Lift Drive / Actuation	Electric Motor

Product Description

The product intro of Power Pallet Truck WP-LPT15(AC)

Power Pallet Truck WP-LPT15(AC)

3-phase AC drive motor maintenance free
Lower lift cycle costs

Longer operating time between recharge

Regenerative braking

High efficiency and allows the acceleration and braking on slopes

Drive motor:KORDEL from Germany

Controller:ZAPI

Hydraulic motor: Imported from Europe

The Lpt15 benefits from Noblelift’s design and engineering excellence.

Approved good acceleration enhances efficient pallet entry and exit to increase productivity. Nopolar

Electronic-control is programmable for specific tasks or operator skill levels.

Smooth travel and lift combine with excellent controls to reduce product damage and increase productivity.

A heavy-duty 24-volt electrical system provides good travel and lift speeds.

High quality hydraulic pump assures very little noise,maximum efficiency and durability.

Drive unit is equipped with an electromagnetic brake that is spring applied and electrically release.

Brake is activated by the control handle position. Ergonmic designed control handle with buttons for raising, lowering and horning.

Lift limit switch operates at maximum lift height to shut off pump motor.

With curtis electronic controller from Europe.

Small and light, used in limited space.

Excellent stability in operation even on the empty.

Conforms to EN1726 and EN1175-1

The specification of Power Pallet Truck WP-LPT15(AC)

Identification	1.1	Model of manufacture	unit	WP-LPT15(AC)
	1.2	Power supply(electric,diesel, petrol,gas,mains electric)		electric
	1.3	Type of operation(hand,pedestrian,stand on, rider seated, order picker)		pedestrian
	1.4	Capacity /rated load	Q Kg	1500
	1.5	Load center distance	C mm	600
	1.6	Load distance	X mm	963	1054
	1.7	Wheelbase	y mm	1217	1310
Weights	2.1	Weight(including battery)	Kg	286
	2.2	Axle loadings laden	Kg	760/1026	674/1112
	2.2	drive end/load end	Kg	760/1026	674/1112
	2.3	Axle loadings unladen drive end/ load end	Kg	222/64	226/60
Wheels, Chassis	3.1	Tyres(rubber, Vulkollan, pneumatic, polyurethane)		polyurethane
	3.2	Tyre size drive end	mm	Φ252x89
	3.3	Tyre size load end	mm	Φ84x70/Φ84x93	Φ74x70/Φ74x93
	3.4	Castor wheels(dimensions)		Φ100x40
	3.5	Wheels, number(x=drive wheel) drive end/load end		1x -2/2 or 1x -2/4
	3.6	Track width(front) drive end	b10mm	490
	3.7	Track width(rear) load end	b11mm	360	490
Basic Dimensions	4.1	Lift height	h3 mm	120
	4.2	Tiller height in neutrality position	h14mm	1235
	4.3	Fork height lowered	h13mm	85	75
	4.4	Overall length	l1 mm	1590	1660
	4.5	Length to front face of fork	l2 mm	440
	4.6	Overall width	b1 mm	700
	4.7	Fork dimensions	s/e/l mm	47/160/1150	47/160/1220
	4.8	Overall fork width	b5 mm	520	650
	4.9	Floor clearance, center of wheelbase	m2 mm	34	24
	4.10	Working aisle with 800x1200 pallet lengthwise	Ast mm	2145	2176
	4.11	turning radius	Wa mm	1480	1550
Performance Data	5.1	Travel Speed laden/unladen	km/h	5.0/5.2
	5.2	Lifting speed laden/unladen	mm/s	27/35
	5.3	Lowering speed laden/unladen	mm/s	42/27
	5.4	Gradeability laden/unladen	%	5/8
	5.5	Brakes		Electric-magnetic
E-Motor	6.1	Drive motor	kw	1.0(AC)
	6.2	Lifting motor	kw	0.8
	6.3	Battery acc. To BS, no 1)		no
	6.4	Battery voltage, norminal capacity K5 1)	V/Ah	2x12/80
	6.5	Battery weight +/-5%	Kg	48
	6.6	Battery dimensions l/w/h 1)	mm	260/170/230
Others	7.1	Type of drive control		MOSFET Control
	7.2	Sound level, at driver’s ears	dB(A)	<70
	7.3	Turning angle	°	205

*)Load section lifted/lowered +55mm
**)Diagonal according to VDI+204m
