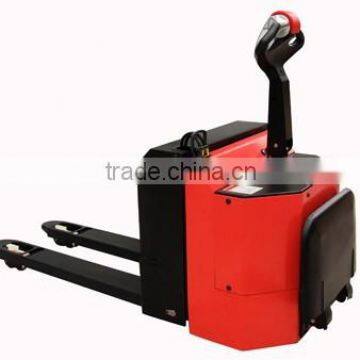

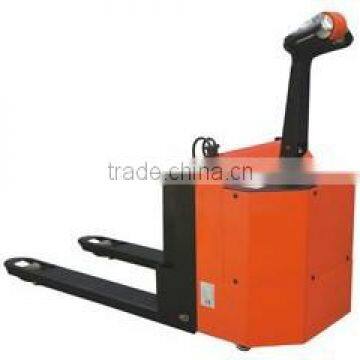

Good Performance Power Pallet Truck WP-LPE20

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	WP-LPE20		Lift Drive / Actuation	Electric Motor

Product Description

The specification of Power Pallet Truck WP-LPE20

Characteristics	1.1	Model	unit	WP-LPE20
	1.2	Motor type		electric
	1.3	Type of operation(hand,pedestrian, stand on,rider seated, order picker)		pedestrian
	1.4	Capacity /rated load	Q kg	2000
	1.5	Load center distance	C mm	600
	1.6	Load distance	X mm	963/1033
	1.7	Wheelbase	Y mm	1275/1335
Weights	2.1	Weight(including battery)	kg	450
	2.2	Axle loadings laden drive end/load end	kg	850/1600
	2.3	Axle loadings unladen drive end/load end	kg	350/100
Wheels types	3.1	Tyres(rubber, Vulkollan,pneumatic, polyurethane)		polyurethane
	3.2	Tyre size drive end	mm	Φ252x70
	3.3	Tyre size load end	mm	Φ80x70
	3.4	Castor wheels(dimensions)		Φ100x40
	3.5	Wheels, number(x=drive wheel) drive end/load end		1x+2/2 or 1x +2/4
	3.6	Track width(front) drive end	b10 mm	515
	3.7	Track width(rear) load end	b11 mm	380/525
Dimensions	4.1	Lift height	h3 mm	120
	4.2	Tiller height in neutrality position	h14 mm	1240
	4.3	Fork height lowered	h13 mm	82
	4.4	Overall length	l1 mm	1785/1855
	4.5	Length to front face of fork	l2 mm	635
	4.6	Overall width	b1 mm	726
	4.7	Fork dimensions	s/e/l mm	60/160/1150(1220)
	4.8	Overall fork width	b5 mm	540/685
	4.9	Floor clearance, center of wheelbase	m2 mm	22
	4.10	Working aisle with 800x1200 pallet lengthwise	Ast mm	2295/2335
	4.11	turning radius	Wa mm	1630/1700
Performance	5.1	Travel Speed laden/unladen	km/h	5.0/5.2
	5.2	Lifting speed laden/unladen	mm/s	20/30
	5.3	Lowering speed laden/unladen	mm/s	23/31
	5.4	Gradeability laden/unladen	%	10/6
	5.5	Brakes		Electric-magnetic
Electric Motor	6.1	Drive motor	kW	1.5
	6.2	Lifting motor	kW	0.8
	6.3	Battery acc. To BS, no 1)		3VBS
	6.4	Battery voltage, norminal capacity K5 1)	V/Ah	24/165
	6.5	Battery weight +/-5%	kg	160
	6.6	Battery dimensions l/w/h 1)	mm	455/196/570
Other	7.1	Type of drive control		MOSFET Control
	7.2	Sound level, at driver’s ears	dB(A)	<70
	7.3	Turning angle	°	180

Company Information

Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.

Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
