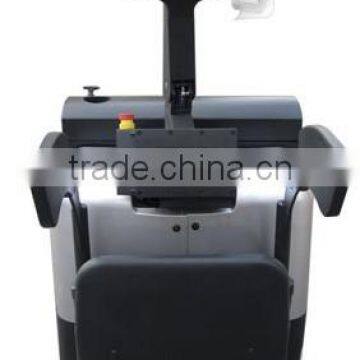

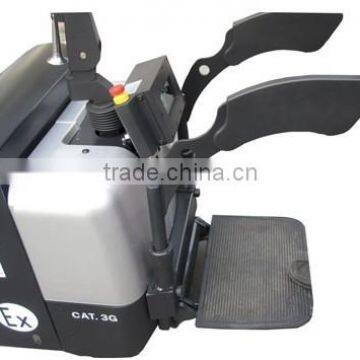

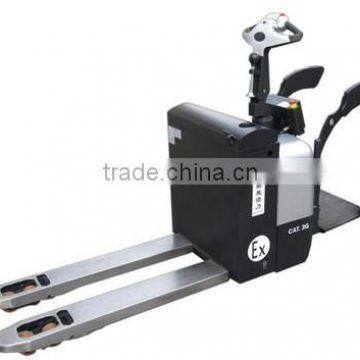

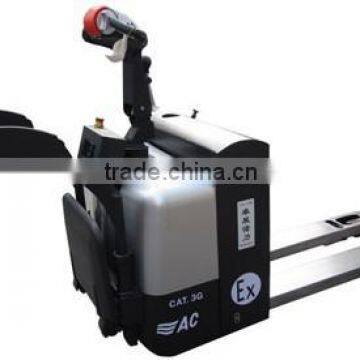

New Condition Explosion Proof Power Pallet Truck LPT22AC-Ex

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	LPT22AC-Ex		Lift Drive / Actuation	Electric Motor

Product Description

Product Name:

Explosion Proof Power Pallet Truck LPT22AC-Ex

Product Intro

1 Ex Level 2 area, the gas mixture type Ⅱ B + H2, the temperature level of T4
2 In full compliance with the requirement of the latest Chinese National Standard GB19854-2005
(explosion-proof industrial trucks for explosive atmospheres General principles)
3 The National quality supervision Explosion Protected Electrical Products Testing Center (CQST)
certificate issued by explosion, a car per certificate
4 According to your requirement, we can design the product with different levels of explosion-proo

Characteristics	1.1	Model	unit	LPT22AC-Ex
	1.2	Motor type		electric
	1.3	Type of operation(hand,pedestrian,stand on, rider seated, order picker)		pedestrian
	1.4	Capacity /rated load	Q(Kg)	2200
	1.5	Load center distance	C(mm)	600
	1.6	Load distance	X(mm)	963/1033
	1.7	Wheelbase	Y(mm)	1368
Weights	2.1	Weight(including battery)	Kg	512
	2.2	Axle loadings laden drive end/load end	Kg	1082/1630
	2.3	Axle loadings unladen drive end/load end	Kg	399/133
Wheels types	3.1	Tyres(rubber, Vulkollan,pneumatic, polyurethane)		polyurethane
	3.2	Tyre size drive end	mm	Φ230×75
	3.3	Tyre size load end	mm	2×Φ84×70/Φ84×93
	3.4	Castor wheels(dimensions)		2×Φ100×40
	3.5	Wheels, number(x=drive wheel)drive end/load end		1×2/2/1×2/4
	3.6	Track width(front) drive end	b10(mm)	540
	3.7	Track width(rear) load end	b11(mm)	380/525
Dimensions	4.1	Lift height	h3(mm)	120
	4.2	Tiller height in neutrality position	h14(mm)	1323
	4.3	Steeless Fork height lowered	h13(mm)	85
	4.4	Overall length	l1(mm)	1815/1885
	4.5	Length to front face of fork	l2(mm)	665
	4.6	Overall width	b1(mm)	726

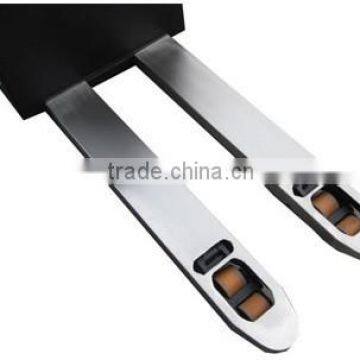

	4.7	Steeless Fork dimensions	s/e/l(mm)	60/160/1150(1220)
	4.8	Overall Steeless fork width	b5(mm)	540/685
	4.9	Floor clearance, center of wheelbase	m2(mm)	25
	4.10	Working aisle with 800x1200 pallet lengthwise	Ast(mm)	2305/2344
	4.11	turning radius	Wa(mm)	1640/1710
Performance	5.1	Travel Speed laden/unladen	km/h	5.8/6.0
	5.2	Lifting speed laden/unladen	mm/s	19/35
	5.3	Lowering speed laden/unladen	mm/s	30/27
	5.4	Gradeability laden/unladen	%	9/15
	5.5	Brakes		Electric-magnetic
Electric Motor	6.1	Drive motor	kw	1.5(AC)
	6.2	Lifting motor	kw	0.8
	6.3	Battery acc. To BS		3VBS
	6.4	Battery voltage, norminal capacity K5 1)	V/Ah	24/210
	6.5	Battery weight +/-5%	kg	185
	6.6	Battery dimensions l/w/h 1)	mm	677/196/570
Other	7.1	Type of drive control		MOSFET Control
	7.2	Sound level, at driver’s ears	dB(A)	<70
	7.3	Turning angle	deg	180

Packaging &Shipping

Packaging: Standard export package for ocean transportation

Shipping: FOB Shanghai

Our Services

1 year of warranty with overseas service center available

Company Information

We are lifting equipment, hydraulic machinery manufacturer in China.

Shanghai Cheuk's Logistics Technology Co.,Ltd. is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery, offering all kinds of scissoe lift, forklift truck, stacker and pallet truck. Most of the products are granted CE or GS certificates by T ÜV Rheinland Group. The products are widely used in the field if modern logistic.

We have abundant prouct line, forklift truck, pallet trick, stacker, aerial lift, tail gate, tractor truck, scissor lift and hydraulic tools. Further more, our products are pretty popular in more than 100 countries in America, Europe, Asia, Africa and Austria.
