Top Quality Power Roll Pallet Truck LPTV Series

Shanghai Cheuk's Logistics Technology Co., Ltd.
Top Quality Power Roll Pallet Truck LPTV Series thumbnail-1
Top Quality Power Roll Pallet Truck LPTV Series thumbnail-2
Top Quality Power Roll Pallet Truck LPTV Series photo-1

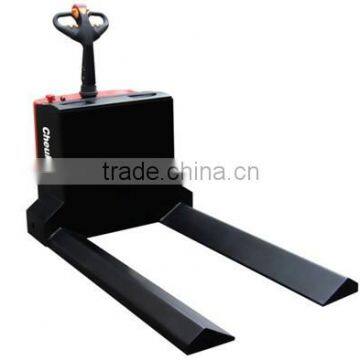

Top Quality Power Roll Pallet Truck LPTV Series photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Cheuk's
Model Number:
LPT-V series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Cheuk's
Model Number LPT-V series
Lift Drive / Actuation Electric Motor
Product Name:

Power Roll Pallet Truck-LPT-V series

Product Intro

Power roll pallet truck LPT-V series is environmental friendly, lower noisy, with large capacity, easy-operated and safe. It can be used for loading goods in the areas such as paper making, light textile, medicine electronic, equipment and chemical industry and so on.

1.1 It has the same maneuverability as diesel forklift, but the cost is lower than forklift. It   installs imported controller equipment. It is controlled by mirco computer, with unit  compacts.

1.2 New type of battery forklift capacity meter can precisely measure power consumption, show the battery working state.

1.3 high level of battery power connector which avoid short-lived problem

1.4 High quality, large power drive motor, hydraulic pump and large capacity group of battery, excellent access performance and gradeability and large pulling power, constantly work

1.5 The special hydraulic travel turn on and off of battery forklift controls the pallet truck easily and correctly.

1.6 Ergonomically designed handle which is nimble, comfortable and accuracy.

1.7 Excellent design, easy to install, large inner space, convenient to repair



Model
Unit
LPT20V
LPT25V
LPT30V
Power supply

Electric
Electric
Electric
Type of operation

pedestrian
Capacity /rated load
kg
2000
2500
3000
Load center distance
mm
600
600
600
Lift height
mm
120
120
120
Fork lowered height
mm
140
140
140
Fork length
s/e/l
1150/1220/1600
Fork outer width
mm
850/1000/1150
Travel Speed laden/unladen
km/h
4/5
4/5
4/5
Gradeability laden/unladen
%
6/10
6/10
6/10
Tyre size drive end
mm
¢250*80
¢250*80
¢250*80
Tyre size load end
mm
¢80*85
¢80*85
¢80*85
Tyre size support end
mm
¢100*50/55
¢100*50/55
¢100*50/55
Tyre

polyurethane
Brakes

electromagnetic
Type of drive control

MOSFET Control
Drive motor power
kw
1.2
1.2
1.2
Lift motor power
kw
2.2
2.2
2.2
Sound level, at driver’s ears
db(A)
<70
<70
<70
Battery voltage, norminal capacity
V/Ah
24/210
24/210
24/240
Charger
V/A
24/30
24/30
24/30
N.W
kg
700
790
920



Packaging &Shipping



Packaging: Standard export package for ocean transportation



Shipping: FOB Shanghai



Our Services

1 year of warranty with overseas service center available



Company Information

We are lifting equipment, hydraulic machinery manufacturer in China.



Shanghai Cheuk's Logistics Technology Co.,Ltd. is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery, offering all kinds of scissoe lift, forklift truck, stacker and pallet truck. Most  of the products are granted CE or GS certificates by T ÜV Rheinland Group. The products  are widely used in the field if modern logistic.

We have abundant prouct line, forklift truck, pallet trick, stacker, aerial lift, tail gate, tractor truck, scissor lift and hydraulic tools. Further more, our products are pretty popular in more than 100 countries in America, Europe, Asia, Africa and Austria.
