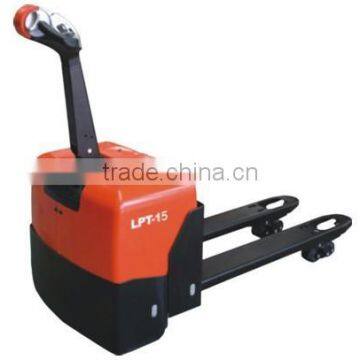

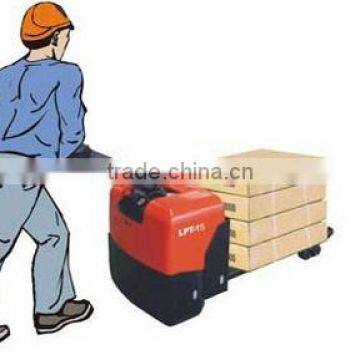

New Condition Power Pallet Truck WP-LPT15(DC)

Name: New Condition Power Pallet Truck WP-LPT15(DC)
Brand: Cheuk's
SKU: 100553301
Availability: InStock

Shanghai Cheuk's Logistics Technology Co., Ltd.

New Condition Power Pallet Truck WP-LPT15(DC) thumbnail-1

New Condition Power Pallet Truck WP-LPT15(DC) thumbnail-2

New Condition Power Pallet Truck WP-LPT15(DC) photo-1

New Condition Power Pallet Truck WP-LPT15(DC) photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Cheuk's

Model Number:

WP-LPT15(DC)

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Cheuk's

Model Number WP-LPT15(DC)

Lift Drive / Actuation Electric Motor

Product Name:

Power Pallet Truck WP-LPT15(DC)

Product Intro

The Lpt15 benefits from Cheuklift’s design and engineering excellence.
Approved good acceleration enhances efficient pallet entry and exit to increase productivity. Non-polar electronic control provides variable speed acceleration which enhances pallet entry and exiting to improve productivity.
Smooth travel and lift with excellent controls reduces product damages and increases productivity.
A heavy-duty 24-volt electrical system provides good travel and lift speeds.
High quality hydraulic pump assures very little noise, maximum efficiency and durability.
Drive unit is equipped with an electromagnetic brake that is spring applied and electrically release. Brake is activated by the control handle position. Ergonomic designed control handle with buttons for raising, lowering and horning.
Lift limit switch operates at maximum lift height to shut off pump motor.
With curtis electronic controller from Europe.
The CURTIS electronic controller helps provide plenty of low end torque while increasing the motor and battery lift.
Excellent stability in operation even on the empty.
Conforms to EN1726 and EN1175-1
Controller:CURTIS
Hydraulic motor: Imported from Europe

1KG=2.2LB 1INCH=25.4MM

Identification	1.1	Model of manufacture	unit	WP-LPT15(DC)
	1.2	Power supply(electric,diesel, petrol,gas,mains electric)		electric
	1.3	Type of operation(hand,pedestrian,stand on,rider seated, order picker)		pedestrian
	1.4	Capacity /rated load	Q Kg	1500
	1.5	Load center distance	C mm	600
	1.6	Load distance	X mm	963	1054
	1.7	Wheelbase	y mm	1217	1310
Weights	2.1	Weight(including battery)	Kg	286
	2.2	Axle loadings laden drive end/load end	Kg	760/1026	674/1112
	2.3	Axle loadings unladen drive end/load end	Kg	222/64	226/60
Wheels, Chassis	3.1	Tyres(rubber, Vulkollan, pneumatic, polyurethane)		polyurethane
	3.2	Tyre size drive end	mm	Φ252x89
	3.3	Tyre size load end	mm	Φ84x70/Φ84x93	Φ74x70/Φ74x93
	3.4	Castor wheels(dimensions)		Φ100x40
	3.5	Wheels, number(x=drive wheel)drive end/load end		1x -2/4 or 1x -2/2
	3.6	Track width(front) drive end	b10mm	490
	3.7	Track width(rear) load end	b11mm	360	490
Basic Dimensions	4.1	Lift height	h3 mm	120
	4.2	Tiller height in neutrality position	h14mm	1235
	4.3	Fork height lowered	h13mm	85	75
	4.4	Overall length	l1 mm	1590	1660
	4.5	Length to front face of fork	l2 mm	440
	4.6	Overall width	b1 mm	700
	4.7	Fork dimensions	s/e/l mm	47/160/1150	47/160/1220
	4.8	Overall fork width	b5 mm	520	650
	4.9	Floor clearance, center of wheelbase	m2 mm	34	24
	4.10	Working aisle with 800x1200 pallet lengthwise	Ast mm	2145	2176
	4.11	turning radius	Wa mm	1480	1550
Performance Data	5.1	Travel Speed laden/unladen	km/h	5.0/5.2
	5.2	Lifting speed laden/unladen	mm/s	27/35
	5.3	Lowering speed laden/unladen	mm/s	42/27
	5.4	Gradeability laden/unladen	%	5/8
	5.5	Brakes		Electric-magnetic
E-Motor	6.1	Drive motor	kw	1
	6.2	Lifting motor	kw	0.8
	6.3	Battery acc. To BS, no 1)		no
	6.4	Battery voltage, norminal capacity K5 1)	V/Ah	2x12/80
	6.5	Battery weight +/-5%	Kg	48
	6.6	Battery dimensions l/w/h 1)	mm	260/170/230
Others	7.1	Type of drive control		MOSFET Control
	7.2	Sound level, at driver’s ears	dB(A)	<70
	7.3	Turning angle	.	205

*)Load section lifted/lowered +55mm
**)Diagonal according to VDI+204mm

Packaging &Shipping

Packaging: Standard export package for ocean transportation

Shipping: FOB Shanghai

Our Services

1 year of warranty with overseas service center available

Company Information

We are lifting equipment, hydraulic machinery manufacturer in China.

Shanghai Cheuk's Logistics Technology Co.,Ltd. is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery, offering all kinds of scissoe lift, forklift truck, stacker and pallet truck. Most of the products are granted CE or GS certificates by T ÜV Rheinland Group. The products are widely used in the field if modern logistic.

We have abundant prouct line, forklift truck, pallet trick, stacker, aerial lift, tail gate, tractor truck, scissor lift and hydraulic tools. Further more, our products are pretty popular in more than 100 countries in America, Europe, Asia, Africa and Austria.
