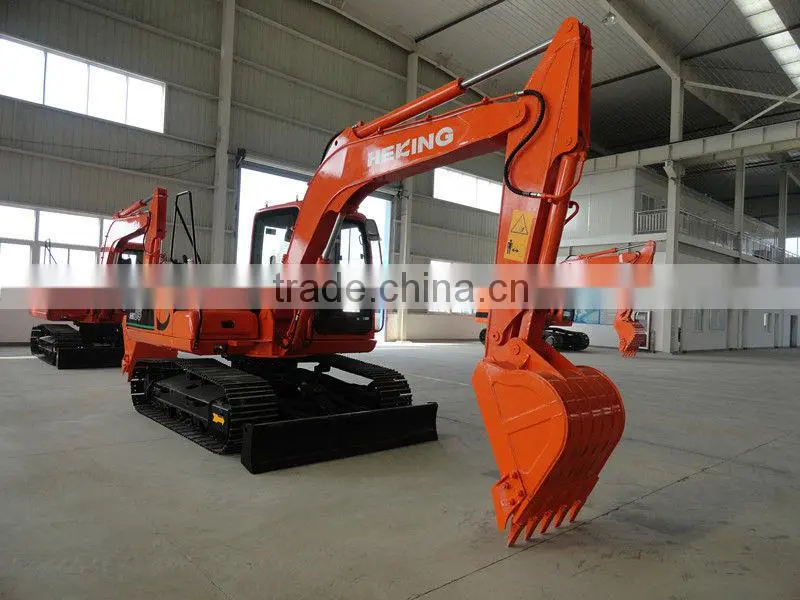

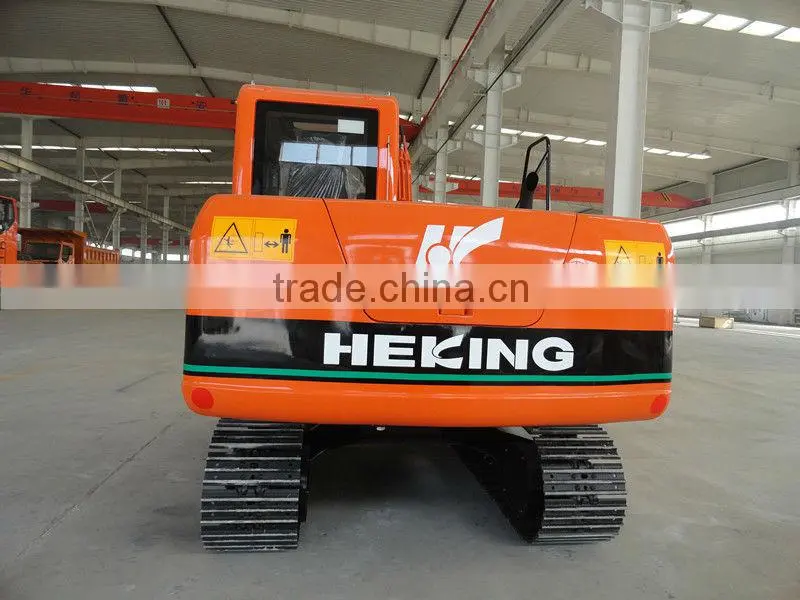

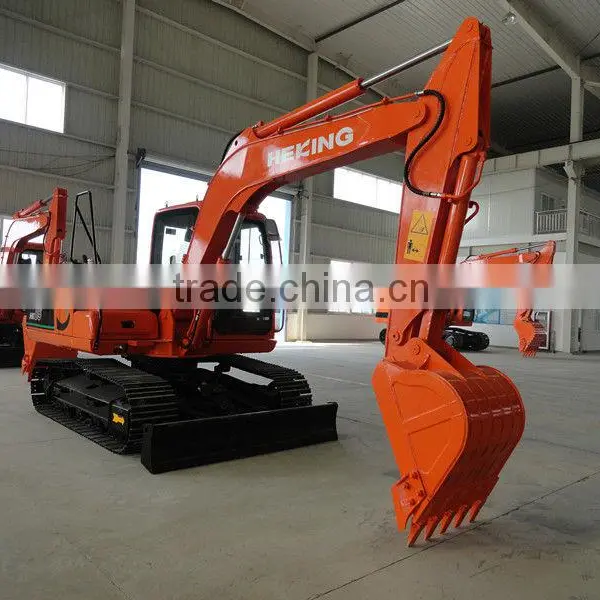

HK85 Small Excavator for Sale

Name: HK85 Small Excavator for Sale
Brand: Heking
SKU: 100551391
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Heking

Model Number:

HK85

Anhui Hekuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Heking

Model Number HK85

Condition New

Moving Type Crawler Excavator

Operating Weight 8150KGS

Bucket capacity 0.4m3

Maximum Digging Height 6695mm

Maximum Digging Depth 4194mm

Machine Weight 8150KGS

Max Digging Radius 6695mm

Rated Speed 4.88/2.75km/h

Certification CE

After-sales Service Provided Overseas third-party support available

Specifications

1.Good engine and hydraulic system
2.Good design for multipurpose use
3.CE certification

HK85 Crawler excavator
Specifications
Standard bucket capacity	0.4m3
Operating weight	8150Kgs
Rated power/Rated speed	56.5kW/2200r/min
Model	YAMMAR 4TNV98T
Type	inter-cooled turbo
Max.torque	310N m / 1600rpm
No.of cylindar	4
Displacement	3.318L

Hydraulic system
Working device pressure	27.4MPa
Swing circiut pressure	22MPa
Travel circuit pressure	27.4MPa
Pump flow	198L/min

Overall performance
Max.digging force of arm	43.4kN
Max.digging force of bucket	49kN
Swing speed	12r/min
Travel speed	4.88/2.75km/h
Gradeability	35°(70%)
Max.tractive effort	49.3kN
Ground pressure	34.9kPa
Noise at the operator's position	78dB(A)

Dimensions
Overall transport length	6664mm
Overall transport width	2200mm
Overall transport height	2644mm
Track shoe length	2907mm
Track gauge	1700mm
Wheel tread	2261mm
Track shoe width	450mm
Min.front slew radius	2620mm
Rear slew radius	2106mm

Working range
Max.digging reach	6695mm
Max.digging depth	4194mm
Max.vertical digging depth	3099mm
Max.digging height	6322mm
Max.dumping height	4348mm
