Specifications
2013 Factory direct sale! UV flatbed large formate printer1.4 Colors:C,M,Y,K, LC, Lm, White
2,Printhead: koncia 512 head
:
2015 Factory direct sale! UV flatbed large formate printer

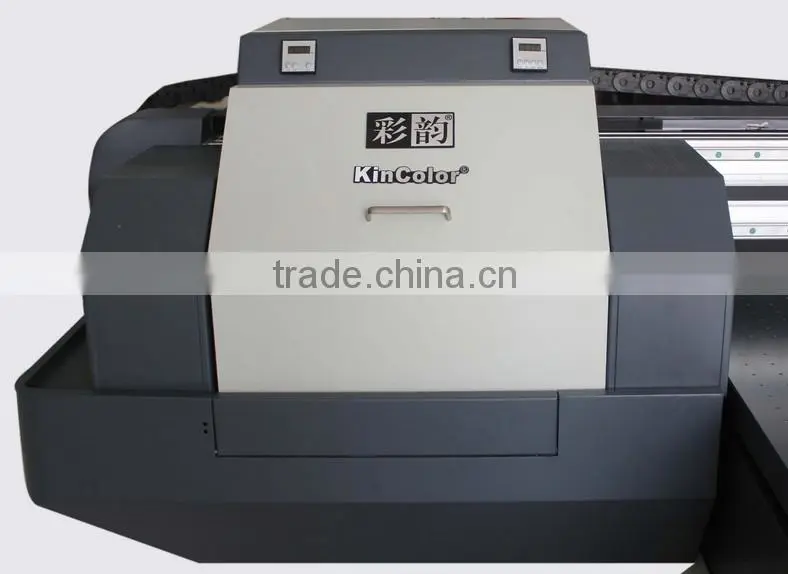

Kincolor UV curable flatbed printer
With a maximum resolution of 720*2880dpi, the effective printing area of this UV1325D UV curable flatbed printer is 1.22*2.44m, Standard thickness of the printed materails reaches 60mm and the printing breadth and height can be customized according to clients' requirements. Precise positioning can be achieved by the Y-axis dual-screw double-motor grating, which enables the curable flatbed printer to print 2mm character without deviation.
Operating system of Kincolor UV printer
1.Anti-jamming system
The machine adopts three anti-jamming measures which can effectively improve the anti-jamming capability. These measures make Kincolor printer work calmly under bad conditions, such as electric welding machine and large-scale electrical equipment working at the same time.
2. Kincolor UV light is an efficient, mute and radiation protection system
The UV light of Kincolor is hight-performance, low power and low heat,which allows the user to really reduce the cost. The UV light is high quality and reliable curing system, which can meet the more rapid mode of production. The control system can achieve real-time power control. When shutter is turned off, the UV lamp automatically reduce the power more than 50% to achieve energy-saving purpose. The most substantial reduction in the generation of ozone (to prevent the operator from high concentrations of ozone). The mute features of UV light make it more suitable for high-end users and avoid complaint by neighbors. The low power printing can effectively increase the lamp life up to 1500-2000 hours and really reduce the cost.
3.Patent of ring, double chain system
This system will separate the data transmission of force electricity and weak electricity.The separation can effectively avoid the disorder. The independence and separation of ink, air and circuit improve the safety and stability. Besides, it is easy to maintenance.

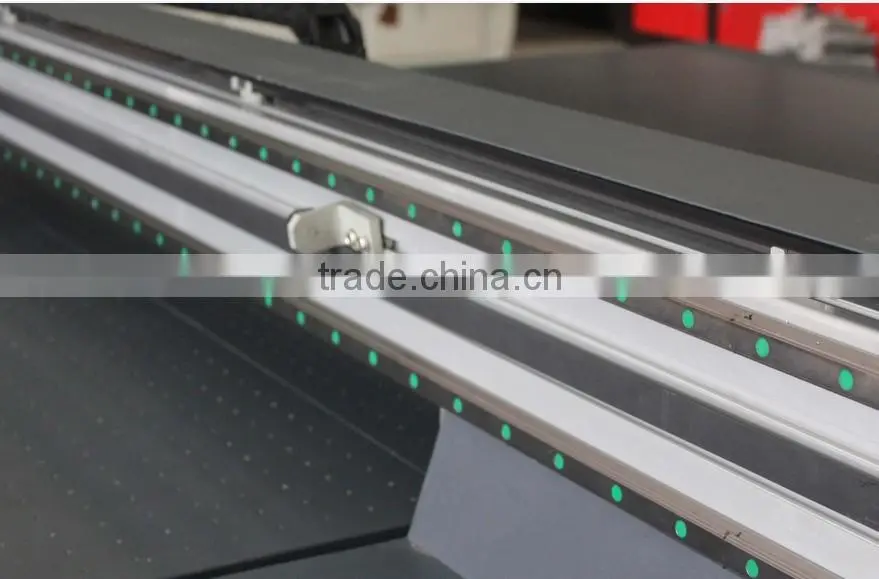

4. Symmetrical dual-rail movement systems for Y-axis
The design of Y-axis symmetrical dual-rail movement system will allow greater weight of the head, so that long-running will not cause the screen dislocation. The accuracy will be consistent and the quality can be guarantee.
5.Isolated power supply system
The whole data processing parts will get special power supply from voltage regulator,the external electromagnetic interference can be effectively prevented and there will be no defects, so this will improve the production efficiency.

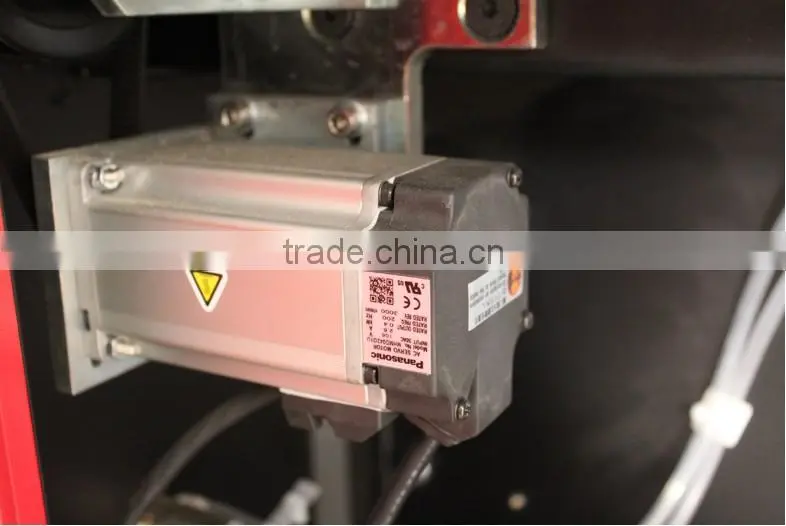

6. International brand name-Panasonic servo motor drive control system
Panasonic control system can achieve fast, high-quality and precision printing. Besides, it can greatly reduce the maintenance costs.
7.High speed,silent and dual-rail system for X-axi
Kincolor UV printer adopts imported mute slider, to avoid the noise of high-speed operation. Equipment operators will not be tired of the noise when they work with the printer for long time. This also keeps the staff stable for long-term. The quiet environment will reduce operator fatigue and improve work efficiency.
8.Anti-electromagnetic interference and power protection systems
The data processing part powed by high quality power supply module. It can effectively fight against external electromagnetic interference, and to make Kincolor printer more suitable for different regions.Besides,the electromagnetic radiation is very small and this will ensure the signal transmission, so this will improve the print quality especially for large format printing.
9. The short circuit protection system for UV light
Experience has shown that 220V power cord in the long-term back and forth will bend inevitably.Unexpected situation occurs, the Kincolor UV light safety system will automatically isolate the power supply, which can effectively prevent leakage of electricity, to avoid causing personal injury of the operator, this function is much welcome by European and American users.
10. Lightning overvoltage protection
The power input part adopts the overvoltage protection device, to prevent external over-voltage on the machine. This device can prevent lighting and burning of the circuit, so this will avoid accidental lost and improve the anti-interference ability of the printer.
Specification of Uv Curable flatbed printer KinColor 1325D
Product Model |
UV1325D |
Print Length |
1.22m |
Print Width |
2.44m |
Model of Print Head |
Konica KM512 14pl(Japan) |
Number of Print Head |
5 pieces |
Maximum Print Precision |
720*2880DPI |
Print Speed |
8-24 |
Color Mode |
CMYK+W |
Application Software |
Photoprint DX10.0 KINCOLOR VERSION |
Platform Model |
Suction Platform |
Suction Platform Area |
2 Design |
Material Thickness |
0mm-70mm |
Color Range |
16.8Million |
Print Material |
PE,PP,ABS,PS,PETG,PU,PVC,PVB,Metal,Glass,Wallpaper,Leather,Acrylic,Wooden Board,etc. |
Image Format |
TIFF/JEPG/BMP/PDF/AI/EPS/PSD/CDR |
Print Technology |
Piezo Print Technology |
Positioning Mode |
Ink Dot Search Positioning System(Double Closed Loop) |
UV Curing System |
Self-developed UV Curing System,Same to German HOENLE UV Curing System |
Print on X-axis Diretion |
Bidirectiona and Unidirectional Printing |
Print on Y-axis Direction |
Unlimited Number of Repeat Printing |
Maintenance of Print Head |
Automatic Cleaning and Ink Cleaning |
Ink Supply System |
World Famous Brand of SMC Negative Pressure Ink Supply System |
Output Port |
USB |
Power Requirement |
50/60HZ 220V(+10%)>15A |
Package Size |
4.25*1.95*1.6m |
Gross Weight |
800kgs |
Safety Measures |
Several newly developed security systems are added,making people and machine more secure. |
2--Products show:
1,Prnter warranty: 1 year.
2,Shipping information:
We will send the printer by sea.
1)All the printer delivery by sea from Guangzhou Huangpu port.And we will declare the low value on the shipping invoice to reduce your customs tax.
2)There are no shipments on weekend and public holidays.
3,Payment terms:
We usually accept T/T, Western Union, Money Gram, L/C, 30% deposit at first, then finish the balance beofre delivery.
4,Packing Terms:
All printer are new, pack by wooden case.
We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
5,Why Purchase From Us:
1)W e can delivery goods by several kinds of shipping.
2)We have many customers are from different country.
3)We offer best service to every customers.
4)We have very good feedback from customers at Aliexpress:
-
7,All of our product is direct from original manufacturer, who also supplies the brand name to domestic market but with much higher price. We offer this special purchase and pass this saving direct to our customer.
We understand what you need in your business.
We can give you professional advices, suggestions and ways to further reduce your production cost in the long run.
Please feel free to contact us if you need more information.
YiTe (Guangzhou) Trade Co., Ltd use advanced ink manufacture and formulation technologies imported from the USA. Our customers are from India, Malaysia, the Philippines, Indonesia, South Korean, the UK, Brazil, and other countries and regions.
Trust us, we will supply the high quality product and the best sale service to you.
Thank you for your reading!
