Specially designed to lift and transport the widest variety ofloads in stores and warehouse
The ergonomic noblelift tiller safely protects the operator’s hands while working
Excellent hydraulic lift unit
Strong, torsion-resistant steel construction

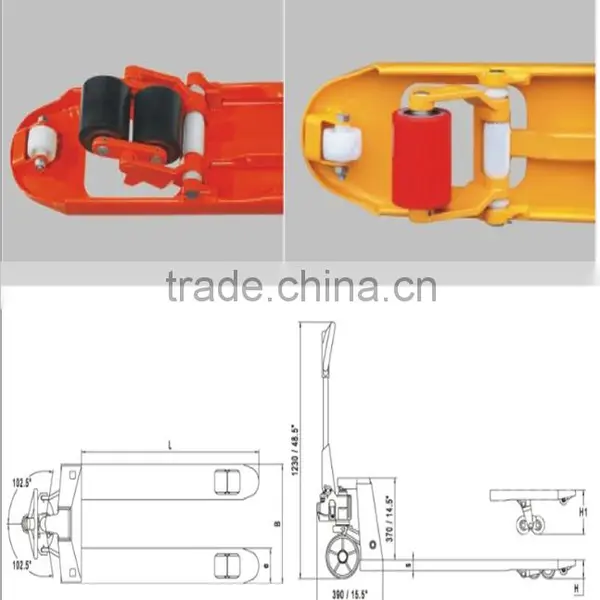

Load-in/lead-out rollers under the fork tips enable pallets to be entered any kind of pallet
No routine maintenance at all is needed on the hydraulics unit and bearings
Important seals made in Germany, which prolong the working time of hydraulic unit
With different options for fork width and length

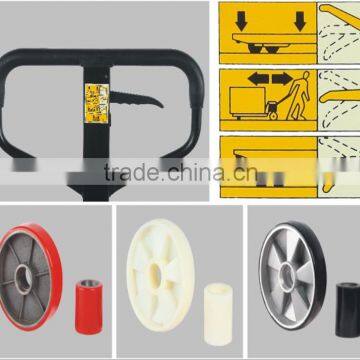

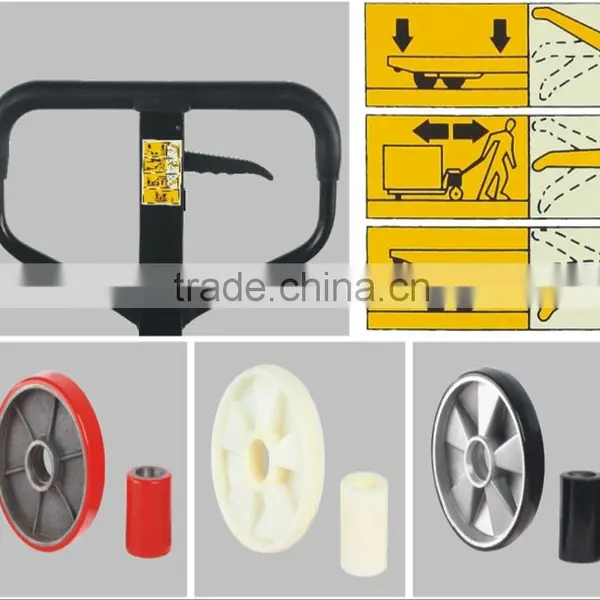

With options for Nylon, Rubber wheel and PU wheels
Parking brake can be chosen as a special option
Frame paint is on customer demand
Conforms to EN 1757-2
Special fork length are available 800,900,950,1000,1100,1500,2000,2500,3000mm for different capacity from 1000kg to 3500kg.
Materials and specification are subject to change without notice.
The basic information of Hand Pallet Truck AC
1KG=2.2LB 1INCH=25.4MM
| Item/Type | unit | AC20 | AC25 | AC30 | |||
| Capacity Q | kg | 2000 | 2500 | 3000 | |||
| Min.fork height h | mm | 85 | 75 | 85 | 75 | 85 | 75 |
| Max.fork height h1 | mm | 200 | 190 | 200 | 190 | 200 | 190 |
| Steering wheel | mm | 200x50 | 180x50 | 200x50 | 180x50 | 200x50 | 180x50 |
| Load roller Single | mm | 80x93 | 74x93 | 80x93 | 74x93 | 80x93 | 74x93 |
| Load roller Tandem | mm | 80x70 | 74x70 | 80x70 | 74x70 | 80x70 | 74x70 |
| Size of fork e*s | mm | 160x50 | 160x60 | ||||
| Width overall forks B | mm | 450/520/540/685 | |||||
| Fork length I | mm | 800/900/1000/1100/1150/1220 | |||||
