| Factory price china digital outdoor inkjet printer manufacturer |
3.2 m konica minolta solvent plotter

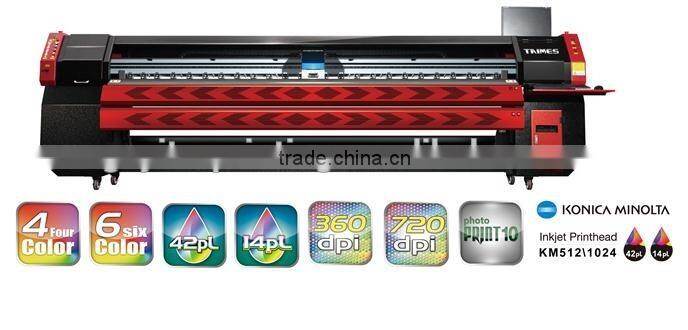

TAIMES T5 SERIES PRINTER SPECIFICATION:
| Product Name | TAIMES T5 large format printer | ||||||
| Maximum Print Width | 3200mm (10.5ft) | ||||||
| Printing Resolution | 360DPI (Physical) | 720DPI (Physical) | |||||
| Product Model | T5-KM512 42PL-4H | T5-KM512 42PL-8H |
T5-KM512 14PL-4H |
T5-KM512 14PL-8H | |||
| Output (sqm/h) | Print Mode |
Output Speed (sqm/h) |
Print Mode |
Output Speed (sqm/h) |
|||
|
180x720dpi 2pass |
42 | 83 |
360x360dpi 2pass |
26 | 52 | ||
|
240x720dpi 2pass |
33 | 66 |
720x720dpi 2pass |
22.8 | 45.6 | ||
|
180x1080dpi 3pass |
27 | 54 |
360x1080dpi 3pass |
17 | 34 | ||
|
240x1080dpi 3pass |
21 | 42 |
720x1440dpi 4pass |
11.3 | 22.6 | ||
|
180x720dpi 4pass |
21 | 42 |
720x1080dpi 6pass |
7.7 | 15.4 | ||
|
240x720dpi 4pass |
17 | 33 |
720x1440dpi 8pass |
5.7 | 11.4 | ||
| Ink | Type | K42 Low Solvent Ink | K14 Eco Solvent Ink | ||||
| Color | 4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM) | ||||||
| Capacity | 5L Per Main Tank of Each Color | ||||||
Ink Supply System |
Low Ink Detector, Auto or Manual Ink Supply System | ||||||
| Media | Width | 3300mm (10.8ft) | |||||
| Type | Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc | ||||||

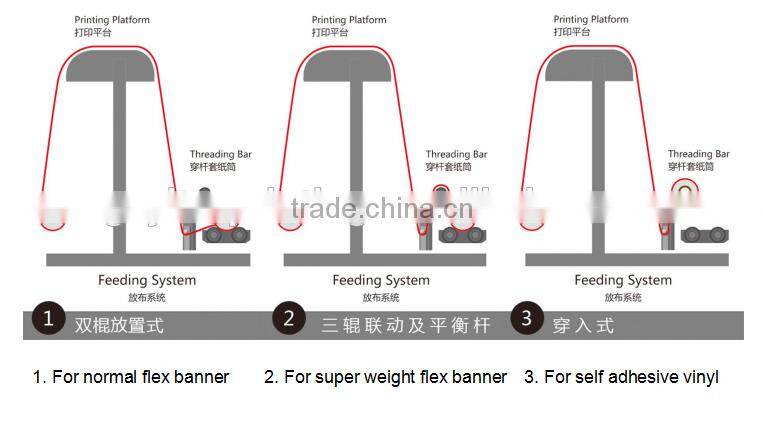

Auto Media Feeding System |
Equipped (Max. Media Weight 120kg ) |
||
Auto Cleaning System |
Positive Pressure Cleaning Anti-clogged Flash Function & Capping System |
||
Pre-heating & Drying System |
Equipped (Drying System Optional) |
||
Clamp |
Equipped |
||
Print Interface |
USB2.0 |
||
Printhead Height |
2 to 4 mm Above Media Adjustable |
||
RIP Software |
PhotoPRINT10.5 or Maintop V5.30 |
||
Input Power |
AC 220V ,50Hz |
||
Operation Environment |
Temperature: 20~28℃ Humidity: 40%~60% |
||
Machine Dimension |
L4,360x W790 x H1,170 mm; Net Weight: 700Kgs |
||
Package Dimension |
L4,820 x W1000 x H1570mm; Gross Weight: 820Kgs; Four units in one 20 feet container |
||

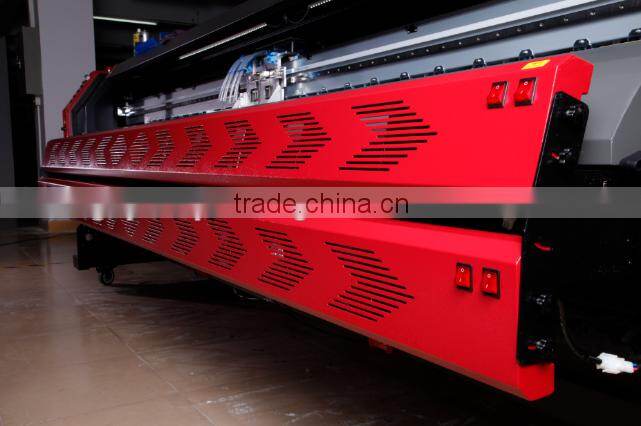

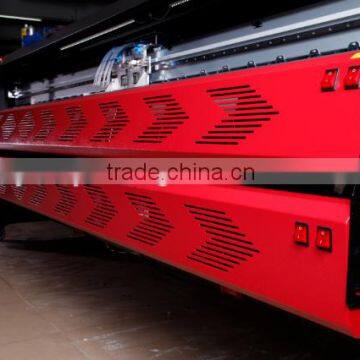

konica industrial inkjet printer

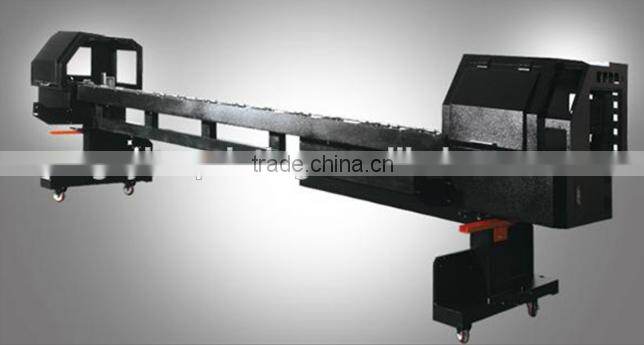

NO.1: Excellent mechanical T shape frame structure, main bottom frame was wholly milled by German imported 6 meter planer type milling machine, which error is only less than 0.05mm.

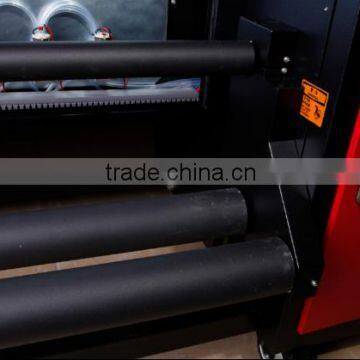

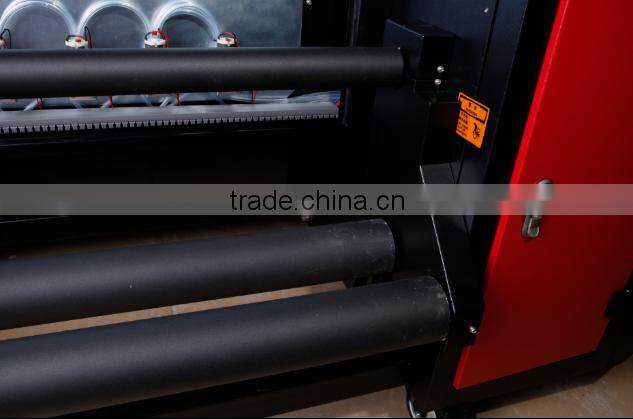

NO.2: Suction fan layer angle larger, can turn angle according to the material’s angle, and can put a large additional area of material under heating up and drying.
NO.3: Feeding up gear protective cover, which protect the operator or engineer from the rik of hurt.

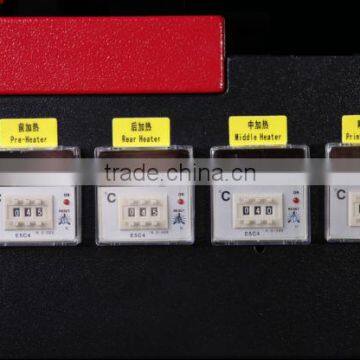

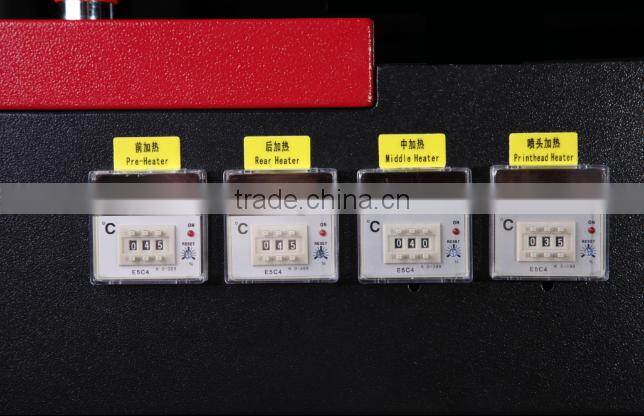

NO.4: Multiple 3 phases constant heating system promotes ink absorption of material, which makes printing clearer, dry faster and image stay for longer.

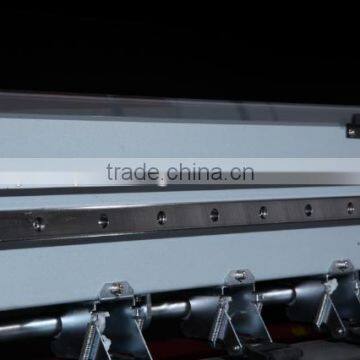

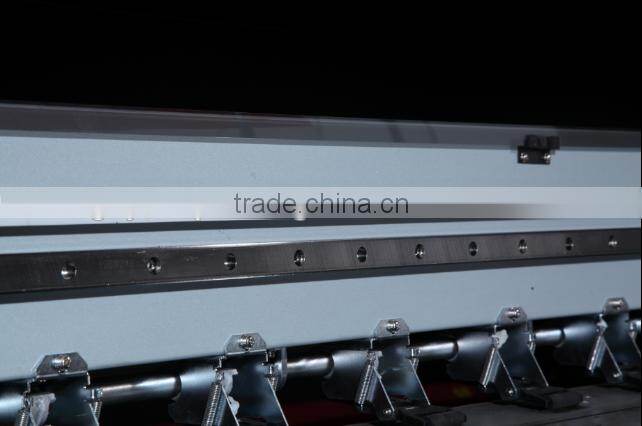

NO.5: Adopt the TAIWAN HIWIN rail; make sure the long use in printing and head carrier moves steadily and quietly. The German IGUS chain has been certified with its quality.

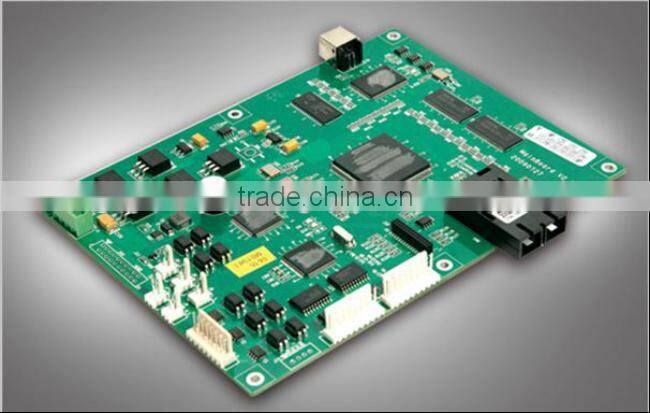

NO.6: Konica Minolta certified and strongly recommended control system, developed printhead’s best core performance while the boards are rarely fault.

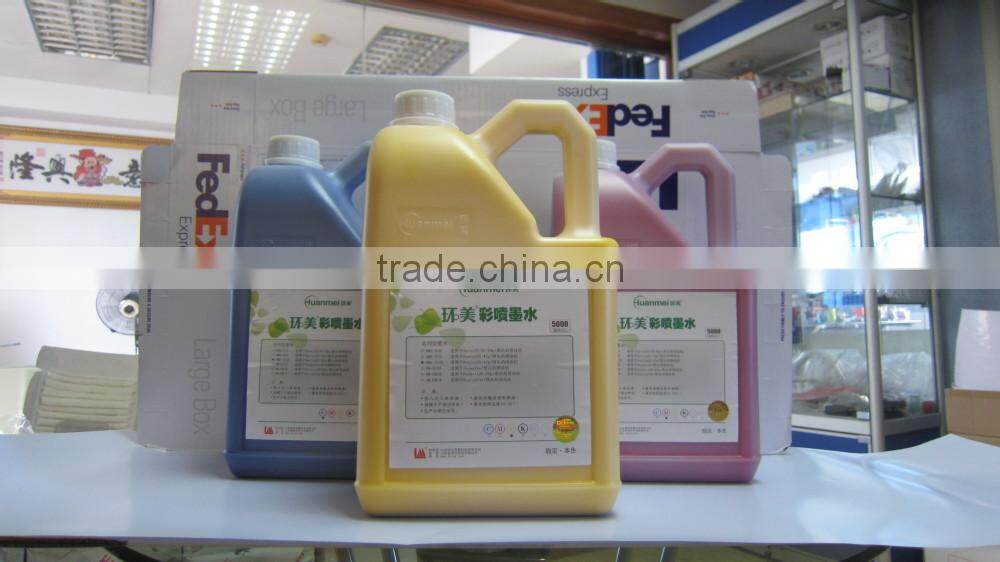

Related product: Konica solvent ink :
5 liter/bottle package konica 512 solvent ink have stock
Wooden package
1,Payment Information:
We will delivery goods within 1-2 working days after confirm receive your payment.
2, Payment terms:
We usually accept T/T, Western Union, Paypal, Money Gram, L/C.
3, Packing Terms:
All items are Brand New.
We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
4,.Features:
All of our product is direct from original manufacturer, who also supplies the brand name to domestic market but with much higher price. We offer this special purchase and pass this saving direct to our customer.
Customers can benefit from the cooperation with us
1) Competitive pricing and volume price breaks
2) Flexible and low-cost shipment routing
3) Quick inquiry responses that satisfy customer needs
4) Early access to new imaging consumable product releasing and custom product sourcing
5)Give you the whole year's warranty , give you the best advice on line ,provide you the installation instruction and maintain method.
