GOOD! Eco solvent printer UD181LC with dx5 printhead
Features:
Full aluminum platform
Individual positive pressure cleaning
X,Y axis AC servo motors
Bearing rail,stable and long durability
Plastic Bar Pulling Material
Good quality,good price and good service!
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along with the
chnage of printheads. When printing with serveal printers at the same time, a difference in
printing colors may exists due to a difference exist in every single pri
Details:
Model |
UD-181LC |
UD1812LC |
UD-211LC |
UD-2112LC |
|||
Printhead |
dx5 head |
||||||
Number of print head |
1head |
2heads |
1head |
2heads |
|||
Maximum print width |
1800mm |
2180mm |
|||||
Print speed |
D 4pass |
16 |
31 |
17 |
34 |
||
S 6pass |
11 |
21 |
12 |
22 |
|||
Q 8pass |
9 |
13 |
10 |
17 |
|||
HQ 8pass |
9 |
13 |
10 |
17 |
|||
BL 12pass |
5 |
8 |
6 |
10 |
|||
ink |
Type |
Water based/ECO Solvent ink |
|||||
Color |
4 color:CMYK |
||||||
Capacity |
1L per main tank of each color |
||||||
Ink supply system |
Auto supply system |
||||||
Midia width |
Maximum 1830mm |
Maximum 2.180 |
|||||
Media type |
Vinyl,polyester,flex,back-lit film,PS board,KT board,PVC foam board,etc |
||||||
Auto media feeding system |
Equipped(Max.Media Weight 25kg |
||||||
Auto Cleaning System |
Anti-clogged Flash Function & Capping System |
||||||
Pre-heating & Drying System |
Equipped |
||||||
clamp |
Equipped |
||||||
Print interface |
USB2.0 |
||||||
Printhead Height |
2 to 10mm from media |
||||||
RIP software |
Ultraprint,maintop,Photoprint,Wasatch |
||||||
Input power |
AC220V,50Hz/60Hz |
||||||
Machine Dimension |
L3080*W990*H1,2660mm/234KG |
L3380*W990*H1,260mm/225KG |
|||||
Package Dimension |
L3190*W1100*H845mm/390KG |
L3490*W1100*H845mm/422KG |
|||||
Advantage of eco solvent printer:
1. Adopt variable do printing technology. There are 8 columns of nozzles in the print head, every column contains 180nozzles, and therefore, there are a total of 1440 nozzles.
2. Self-developed automatic cleaning and capping system which makes the operation and maintenance convenient
3. AC servo motor for both X and Y direction which are stable and durable.
4. New designed constant pressure ink supply system with inserted ink bottle which is clean, reliable, at the same, the ink flow is more fluent.
5. Carriage height adjustable system (Max. printing height 10mm). Print directly on PS and KT board.
6. Rear, platen, and front individual heating system improve the printing quality.
7. No space between bearings and rails for the carriage movement with low noise, low resistance, and no vibration. Market approved that it is durable.
8. Fixed feeding structure which is compatible with 2 and 3 inch paper core. Equipped with take-up balancing bar which is flexible and easy to use.

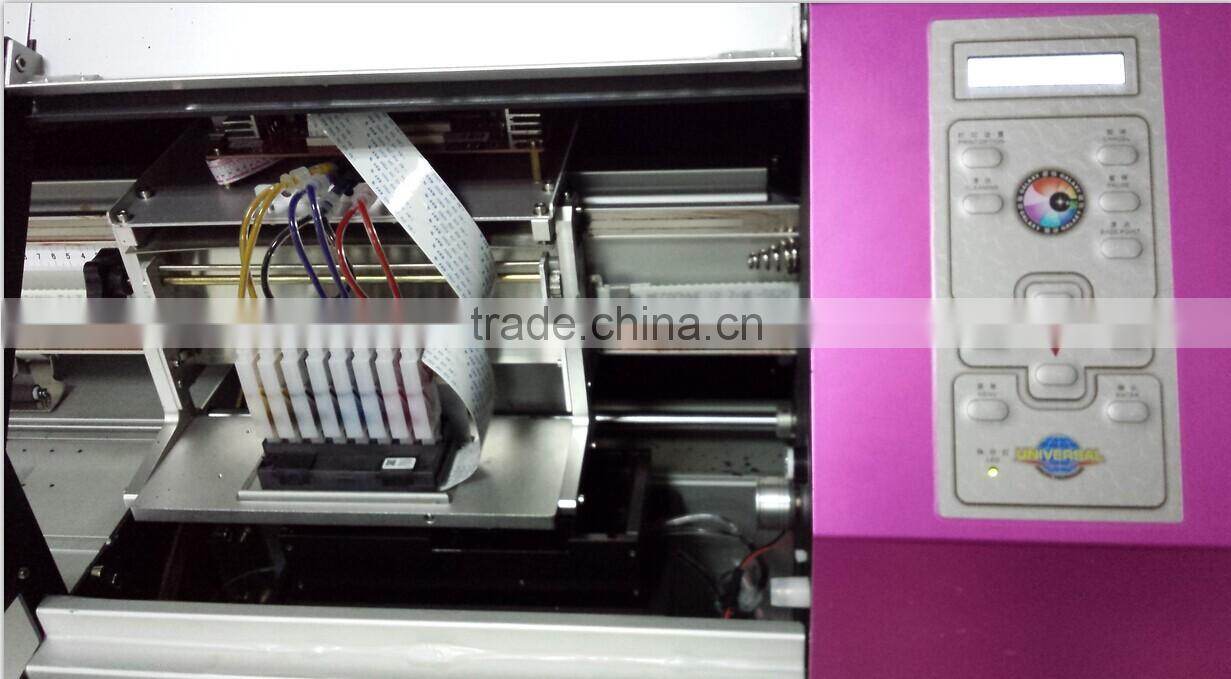

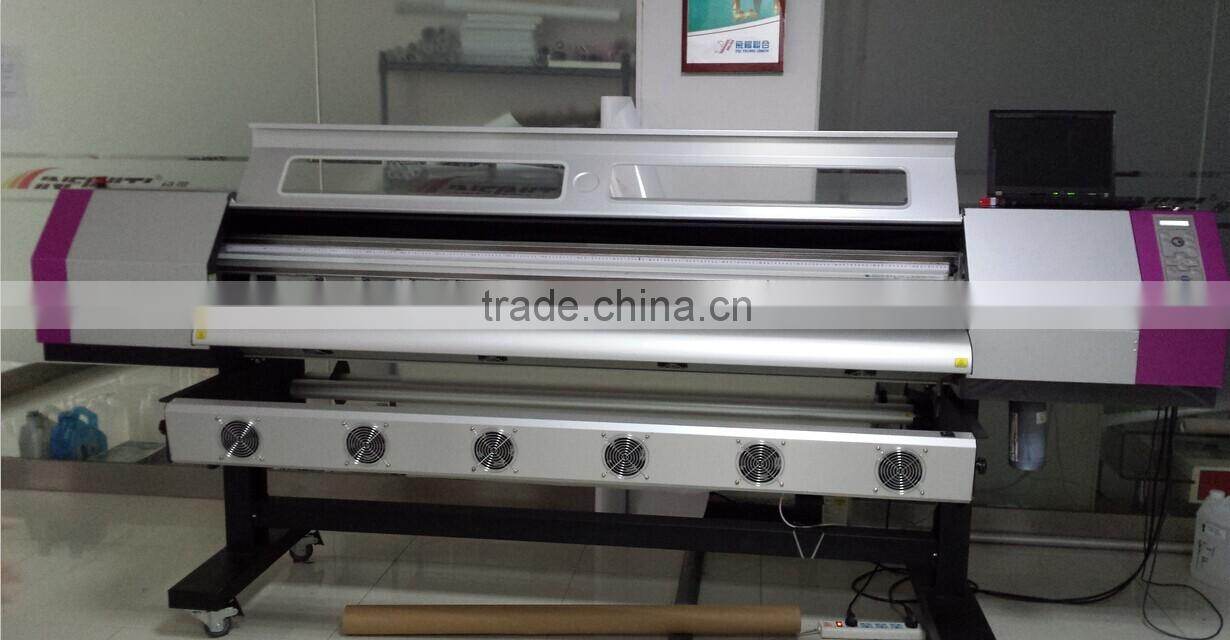

Pictures show:
Package:
All printer are new, pack by wooden case.
We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
1)All the printer delivery by sea from Guangzhou Huangpu port.And we will declare the low value on the shipping invoice to reduce your customs tax.
2)There are no shipments on weekend and public holidays.
Payment:
We usually accept T/T, Western Union, Money Gram, L/C, 30% deposit at first, then finish the balance beofre delivery
Customers can benefit from the cooperation with us:
1) Competitive pricing and volume price breaks
2) Compatible spare parts with the same quality as original ones
3) Flexible and low-cost shipment routing
4) Quick inquiry responses that satisfy customer needs
5) Early access to new imaging consumable product releasing and custom product sourcing
6)Give you the whole year's warranty , give you the best advice on line ,provide you the
installation instruction and maintain method from our artisan
After sale service:
1. offer you the home installation and training,to enhance the abilities of printer operation and improve the problem solving competence
vide 12 months trouble -free warranty
3.offer you the competitive price of the ink
4.All spare part of the printer are avilable
5.any problems can contact with the sale staff ,will give you the best service
About us:
YiTe(Guangzhou)Co.,LTD is a professional supplier for kinds of ink and relative printheads.
All our products are 100% quality guaranteed, which trding to more and more area and countries.
We try to acheive two thing: always have goods in storage, provide the best price and best service.
Your satisfaction is our satisfaction!
Welcome you to make a trde order!
Welcome to contact us, we will be your good professional suppliers
.................................................................................................
