Chinese Factory supply automotive lift used
Four-post Lift for Four-Wheel Alignment Feature
- Collocating the imported driving power unit, reliable performance, ascending or descending steady, low noise; durable life-span;
- With lateral-sliding devices at the rear and the slots at the front; fulfilling the function of 4-wheel-alignment;
- Having 3 safety protections: Broken-rope-locking device, Mechanical hooks and Hydraulic pressure locking automatically;
- Mechanical hooks locked by pneumatic device; Capable to normal repairing jobs
- The crossing boards & the posts formed & molded as a whole at a time; Good rigidity;
- With the secondary lift; power coated, controlled by main hydraulic pump.
| Technical Specifications | GL-3.5-4D1 |
| Max Lifting weight(kg) | 3500 |
| Max Lifting height (mm) | 1650 |
| The secondary Lifting(mm) | 500 |
| Voltage(V) | 380 |
| Frequency(HZ) | 50 |
| Motor Power(KW) | 2.2 |
| Remark | Imported pumb for four wheel alignment |
Four-post Lift Show
A secondary lifting carriage is equipped, which is applicable to adjusting and repairing the tire. This carriage adopted an separately imported hydraulic drive control unit
Lengthened slide plates are applicable to most automobiles of various length. When testing the tyre positioning, the slide plates shall be sliding freely; and in time of normal maintenance operation, a lock pin shall be used to lock the slide plate.
Front flutes are equipped for placing the front turning chassis. The size of the front flutes is suitable for most turning chassis. When putting on the front flute cover plate, it can use for normal maintenance operation.
Outline Drawing : (unit : mm )
Technique requirement:
- This foundation needs to be built in a secondarygrouting. And if only grouting one time, it should be ensured the size for embeding the anchor bolts; the foundation should be strengthened by einforcing steel bars.
- The foundation must be level enough. Level error should not be larger than 5mm.
- If the thickness of ground concrete is thicker than 150mm and the ground strength and the level reach the requirement, expanded bolting could be used to fix.
- Ensure the clearance and the vertical degree between the post and the girder meet the requirement.
- Ensure the level degree of the bridge board meet the requirment

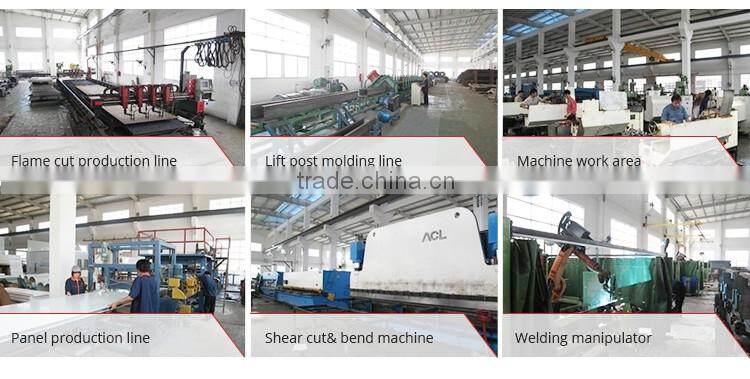

In Feb.of 1994, the first factory of GZ Guangli EFE Co.,Ltd. was established as a solely owned enterprise.
In Dec.of 2007, the new factory of GZ Guangli EFE Co.,Ltd. was finished, Which covers 5800M² grounding area and 3600M² building area. It is present the largest booth manufacturer in China and has a good reputation among Chinese auto-maintenance enterprises.
