Jacob ladder demonstrationJacob ladder demonstration ,This is our new creative series which used for junior middle school Innovation experimental ! new beautiful design and very eash to be used.
Greek mythology has such a story: Jacopo dreaming along Climb ladders made "torch." Posterity put this dream ladder, called Jacopo ladder. The device consists of transformers, croissants electrode base components. Hundreds of thousands of volts by the transformer high voltage, breakdown of air between the electrodes in the claw, an arch arc, generating a magnetic field, the arc upward movement, the movement is similar to the ladder. When the arc is stretched to about 600mm, the applied voltage is no longer necessary to maintain arcing conditions, the arc disappears, then the claw bottom of the electrode will produce a new arc, arc ladder formation cycle phenomenon.

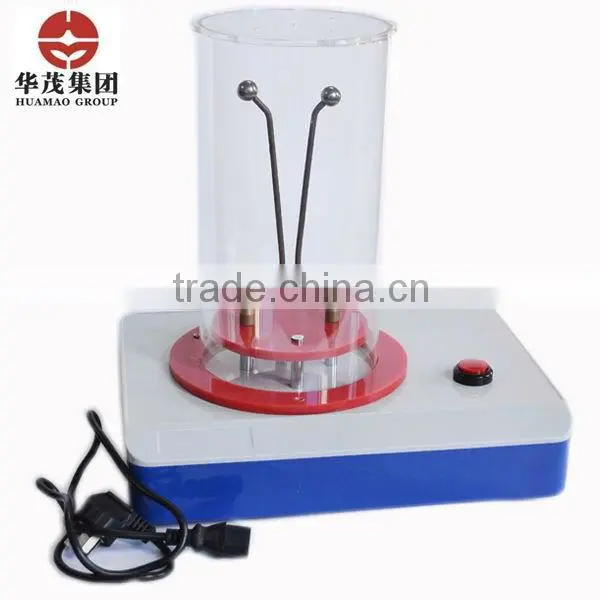

This product consists of high-voltage inverter, a pair of horns electrodes, safety trigger switch, plastic base and other components.
Overall Size: 350mm × 260mm × 365mm; using a common base of PVC molding, base size: 350mm × 260mm × 70mm; 10mm high legs using special rubber pads to prevent vibration and slipping.
Supply voltage of AC 220V/50Hz, maximum power 60W; arcing high as 6KV/30mA; transparent plexiglass shield specifications for diameter Φ300mm, height 280mm, thickness 4mm; safe trigger button mounted on the base panel.
