YCD4C engine parts 1CQ000-1004015S5 cast aluminum piston set and rings :
| Name | Model | Size | Part No. |
| Piston | YC2108 | h101*press h44mm | CA000-1004015 |
| Piston | YC6112ZLQ | h113*press h53mm | 150-1004015 |
| Piston | YC6108G | h111*press h44mm | 340-1004001 |
| Piston | YC6105QC | h111*press h44mm | 630-1004015A |
| Piston | YC6105ZQC | h102*press h43mm | J3200-1004015 |
| Piston | YC6105ZQC | h102*press h43mm | J3600-1004001 |
| Piston | YCD4A | h96*press h39mm | 1AQ000-1004015A |
| Piston | YCD4B11 | h89*press h40mm | 1BQ000-1004015 |
| Piston | YCD4C | h98*press h42mm | 1CQ000-1004015S5 |
| Piston | YCD4D | h98*press h42mm | 1DQ000-1004015B |
| Piston | YCD4F | h98*press h42mm | 1FQ000-1004015S6 |
| Piston | YCD4F | h98*press h42mm | 1FQD00-1004015S1 |
| Piston | YCD4D | h96*press h39mm | 1JQ000-1004015S1 |
| Piston | YC6112ZQ | h113*press h53mm | 231-1004015 |
| Piston | YC6108Q | h111*press h44mm | 330-1004015E |
| Piston | YC6108ZQ | h111*press h42mm | 430-1004015C |
More information about piston and connection rod parts:
| S/N | Part Name |
| 1 | Piston |
| 1 | Piston |
| 2 | Piston pin |
| 3 | Retaining ring |
| 4 | Keystone-type piston ring |
| 4 | Keystone-type piston ring |
| 5 | Taper-face piston ring |
| 5 | Taper-face piston ring |
| 6 | Spring-backed oil piston ring |
| 6 | Spring-backed oil piston ring |
| Connecting rod assembly | |
| Connecting rod assembly | |
| 7 | Connecting rod |
| 8 | Connecting rod cover |
| 9 | Connecting rod bush |
| 10 | Sleeve bearing |
| 10 | Sleeve bearing |
| 11 | Sleeve bearing |
| 12 | Connecting rod bolt |

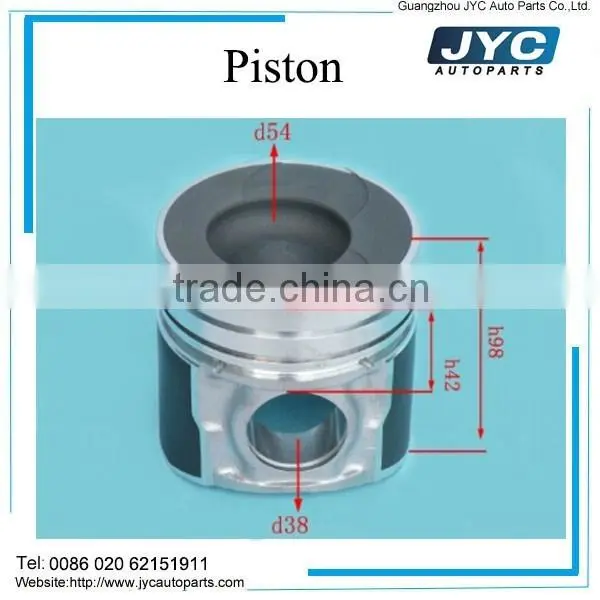

The drawing for Piston:
Truck Parts Producing Line:
Truck parts trade fair:
Guangzhou JYC Auto Parts is specialized in Vehicle's spareparts since 2004.Which focus on light, medium and heavy commercial vehicle spare parts wholesaling and retailing.
Operation brands including: Commins,Perkins,Weichai,SC,YC,Sino-truck,HOWO,STR,JAC,IVECO, DONGFENG, FOTON, JMC, FAW, YUEJIN, DFAC, JMC, HAFEI, CAMC, FORLAND,
YUTONG, KINGLONG, CIMA.
OEM parts:Transmission shaft,Universal joint,Clutch,Clutch plate,Oil filter,Fuel filter,Air filter,brake disc and Etc.
The professional team, fast delivery, full product range, good quality, competitive price will be the reasons you chose to cooperate with us.
Our oversea market mainly in Algeria, Syria, Iran, Ukraine, Russia, Vietnam, Columbia, Malaysia,Philippine, South Africa, Saudi Arab,Mexico and other countries and regions.
1.Customer first,high quality Product will be offered;
2.Sample order is available;
3.Honesty and Open We are honest and open to share all ,sincerely hope long-term cooperation with you,so our price is lower than the whole market at the same qualtiy,to help you win the market in your country,hope to achieve the final goal of win-win !
4. Payment Motehods Support a wide range of payment methods,release your financial pressure!
5. Our packing is strong to protect the goods during transportation,and fast delivery after your order.
6. Professional Service Provide best service based on professional and sincerely attitude.
