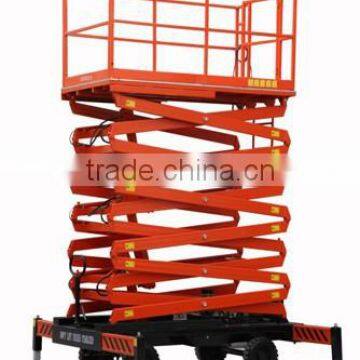

CE Scissor Lift-SJY 300 Series

CE Scissor Lift-SJY 300 Series thumbnail-1
CE Scissor Lift-SJY 300 Series thumbnail-2
CE Scissor Lift-SJY 300 Series thumbnail-3
CE Scissor Lift-SJY 300 Series photo-1
CE Scissor Lift-SJY 300 Series photo-2
CE Scissor Lift-SJY 300 Series photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Cheuks
Model Number:
SJY 300 series
Contact Supplier Request Quote Chat Now
Shanghai Cheuk's Logistics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Cheuks
Model Number SJY 300 series
Lift Mechanism Scissor Lift
Lift Drive / Actuation Electric Motor
Rated Loading Capacity 300kg
Min. Lifting Height 850mm
Max. Lifting Height 7500mm
Table Size According to your requirement
Overall Dimensions according to different model
Weight 300kg
Certification CE ISO
Warranty 1 year
After-sales Service Provided No overseas service provided
The specification of Scissor lift-SJY 300 series



1KG=2.2LB 1INCH=25.4MM

Model   SJY-0.3-3 SJY-0.3-4.5 SJY-0.3-6 SJY-0.3-6 SJY-0.3-7.5
Capacity KGS 300 300 300 300 300
Max height   3000 4500 6000 6000 7500
Min height   850 950 950 1130 1240
Platform size   1400*700 1500*850 1800*880 1800*880 1800*1000
Scissor material   100*40*4 100*40*4 100*40*4 100*40*4 100*40*4
Motor KW 0.75 0.75 0.75 1.1 1.1
Wheel pump   CB-E304 CB-E304 CB-E304 CB-E304 CB-E304
Tyre   Diameter200 400-8 400-8
Oil pump   D80*1 D80*2 D80*2 D80*2 D80*2
Overall length   1500 1600 1900 1900 1900
Overall width   900 1050 1080 1080 1200
Overall height(rail fold)   1000 1100 1100 1280 1390
Rail height MM 1000 1000 1000 1000 1000
Overall weight KG 400 880 750 870 1000
Lift/Fall speed S 35 50 50 50 60
Voltage V 380 380 380 380 380
Min turn radius M 3 3 3.8 5.5 6



Model   SJY-0.3-9 SJY-0.3-11 SJY-0.3-12 SJY-0.3-14 SJY-0.3-16
Capacity KGS 300 300 300 300 300
Max height   9000 11000 12000 14000 16000
Min height   1350 1600 1750 1950 1980
Platform size   1800*1000 2100*1150 2450*1350 2450*1350 2750*1500
Scissor material   100*40*4 120*40*4 120*40*4 150*50*5 150*50*5
Motor KW 1.5 1.5 2.5 2.2 3
Wheel pump   CB-E304 CB-E304 CB-E306 CB-E306 CE-E308
Tyre   400-8 500-8 500-8 500-8
Oil pump   D80*2 D80*3 D100*3 D100*3 D100*4
Overall length   1900 2200 2600 2600 2900
Overall width   1200 1350 1550 1500 1700
Overall height(rail fold)   1500 1750 1900 2100 2130
Rail height MM , 1000 1000 1000 1000 1000
Overall weight KG 1100 1500 2300 2300 3100
Lift/Fall speed S 60 120 125 125 180
Voltage V 380 380 380 380 380
Min turn radius M 6 7 8.5 9 11

Motor can be refitted as battery. It can be ordered according to your requipments.







Company Information



 CE Scissor lift-SJY 300 series

Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.



Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!


Honor Clients

 CE Scissor lift-SJY 300 series


Certifications

 CE Scissor lift-SJY 300 series





Packaging & Shipping

 CE Scissor lift-SJY 300 series
