Introduce:
The product is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is for two persons working together. CE certified.
1) Powered by DC, self-propelled and infinitely shift-speeds, controlled by joystick.
2)The driving motor has the automatic braking function.
3) Gradeability: 15-20%.
4) Pothole-protection and tilt alarm.
5)The malfunction can be diagnosed and displayed in codes. Emergency down-valve device.
6) Charge protection: When charged, the machine’s operation will be restricted.
1KG=2.2LB 1INCH=25.4MM

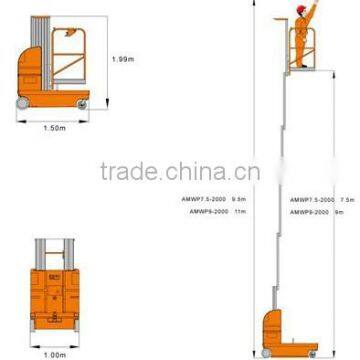

| Model | AMWP7.5-2000 | AMWP9-2000 | |
| Safe working capacity | kg | 200 | 150 |
| Max working height | mm | 9500 | 11000 |
| Max platform height | mm | 7500 | 9000 |
| Overall length | mm | 1500 | |
| Overall width | mm | 1000 | |
| Overall height | mm | 1990 | |
| Platform size | mm | 1000X700 | |
| Min ground clearance | mm | 50 | |
| Wheelbase | mm | 1280 | |
| Min turning radius | mm | 0 | |
| Drive motor | 2x24VDC/0.5kw | ||
| Lift motor | 24VDC/2kw | ||
| Travel speed(Stowed) | kw/h | 4 | |
| Lifting state | kw/h | 1.1 | |
| Lifting/Falling speed | sec | 65/50 | 70/55 |
| Battery | 2x12V/120Ah | ||
| Charger | 24V/12A | ||
| Max gradeability | 25% | ||
| Max working angle | 3 | ||
| Drive wheel | mm | 250x80 | |
| Front wheel | in | 8 | |
| N.W | kg | 1100 | 1250 |
Standard Configuration
-Can bus line intelligent controller
-Proportional controller
-Charge indicator
-Working chronometer
-Transport standard forklift hole
-Electric circuit fault code display
-Low voltage alarm
-Emergency descending button
-Charge protection
-Horn
-Tilt protection
-Tilt alarm
-Driving motor overtemperature protection
-Multi-language
-4x2 drive
-Overload limit
Optional Configuration:
Extended platform
Flash lamp
