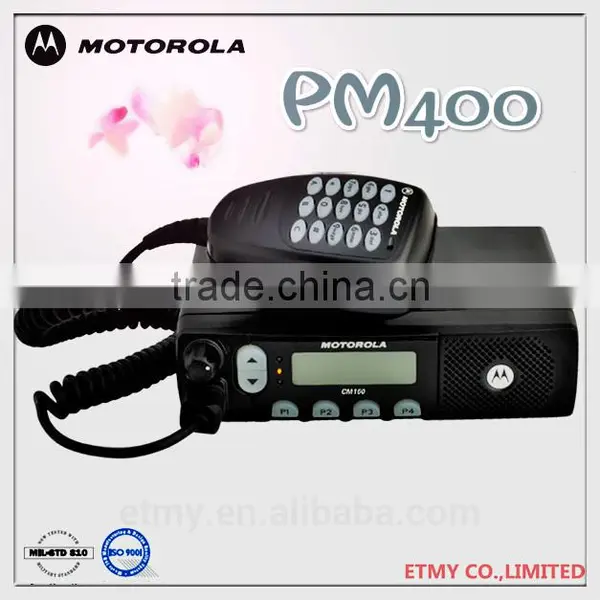

Motorola PM400 Digital Mobile Radio for Car Based Sation Walkie Talkie Radios Quality Choice

Motorola PM400 Digital Mobile Radio for Car Based Sation Walkie Talkie Radios Quality Choice thumbnail-1
Motorola PM400 Digital Mobile Radio for Car Based Sation Walkie Talkie Radios Quality Choice thumbnail-2
Motorola PM400 Digital Mobile Radio for Car Based Sation Walkie Talkie Radios Quality Choice photo-1

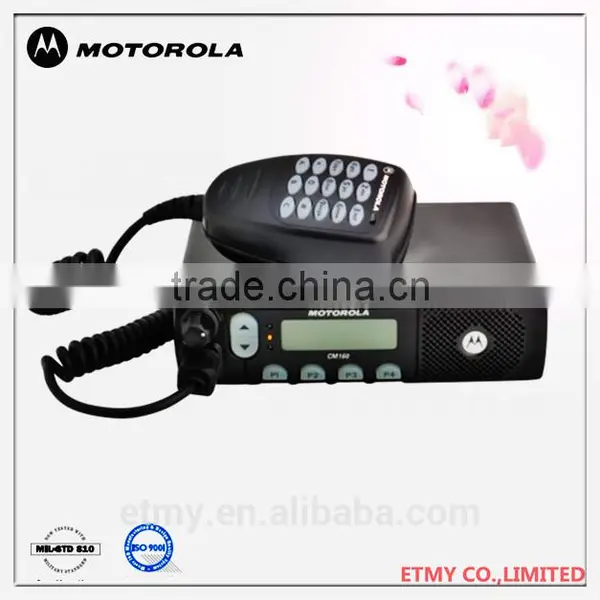

Motorola PM400 Digital Mobile Radio for Car Based Sation Walkie Talkie Radios Quality Choice photo-2
US$ 180 - 450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Malaysia
Brand Name:
motolora
Model Number:
PM400
Contact Supplier Request Quote Chat Now
Guangzhou Etmy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Malaysia
Brand Name motolora
Model Number PM400
Type Vehicle Mouted
Dimensions 44*169*118
Frequency Range VHF : 66-88 Mhz ,136-162MHz, 146-174MHz,403-440MHz, 438-470MHz,
Storage Channel 64
Talk Range 20-30km
Product Description

Specification

Specifications

GENERAL SPECIFICATIONS

Channel Capacity

64

Typical RF Output

Low Power UHF and VHF

 1-25 W

High Power UHF

25-40 W

High Power VHF

25-45 W

Frequency

136-174 MHz; 403-440 MHz, 438-470Mhz

Power Supply

13.8 Vdc (11 Vdc - 16.6 Vdc) negative vehicle ground

Channel Spacing

12.5/20/25KHz

Frequency Stability

+/-2.5ppm

Dimensions (HxWxL)

44mm x 169mm x 118mm

Weight

1.01 Kg

Operating temperature

- 30 to + 60°C

Sealing

Passes rain and dust testing to IP54

Shock and Vibration

Meets MIL-STD 810-C,D&E and TIA/EIA 603

RECEIVER

Frequency

136-174 MHz;403-470 MH

Channel Spacing

12.5 kHz/ 20/25 kHz

Frequency Stability

± 0.5 ppm

Sensitivity (12db Sinad)

VHF  :

0.35uV (12.5KHz)

0.3uV (25KHz)

Intermodulation

VHF:                UHF

65dB (12.5KHz)       60dB (12.5KHz)

75dB (25KHz)         70dB (25KHz)

Adjacent Channel Selectivity

65dB (12.5KHz)        60dB (12.5KHz)

75dB (25KHz)         70dB (25KHz)

Spurious Rejection

75dB                 70dB

Rated Audio

4W internal

13W external

Audio Distortion @ Rated Audio

3% (typical)

Conducted Spurious Emission

57 dBm < 1GHz

-47dBM > 1GHz

TRANSMITTER

Modulation Limiting

+/-2.5KHz (12.5KHz)

+/-4KHz (20KHz)

+/-5KHz (25KHz)

FM Hum and Noise

-40 dB (12.5KHz)   -35 dB (12.5KHz)      -40 dB (12.5KHz)

-45 dB (25KHz)     -40 dB (25KHz)       -40 dB (25KHz)

Conducted / Radiated Emission

1-25W    36 dBm < 1GHz             -30 dBm > 1GHz

25-40/45W    -26 dBm

Adjacent Channel Power

-60 dB (12.5KHz)

-70 dB (25KHz)

Audio Response

+1, -3 dB

Audio Distortion @ 1000Hz, 60% Rated Max. Deviation

3% typical



Features

User-friendly

8-character alphanumeric display with icons for quick identification of radios status and incoming calls.

LED status indicator allows clear indication of radio's operating status.

4 Programmable buttons provide users convenient access to the most frequently used functions.



Efficient

16 pin external accessory port or optional board interface allows easy expansion of radio’s capability.

Supports MDC1200, DTMF and Quick Call II signaling standards.

64-channel allows users to independently program each channel for their customised needs.



Compact & Reliable

The mobile offers voice compression and powerful 4W front firing speaker for maximum audio clarity.

Rugged construction built to meet or exceed the stringent Motorola ALT and MIL-STD 810C,D and E.



Standard Package Comprises:
1x Radio
1x Mag One Microphone
1x Low-profile
1x Mounting Bracket
1x Power cable
1x User guide



Certifications

motorola PM400 digital mobile radio for car based sation walkie talkie radios

Company Information

Guangzhou Etmy Co., Ltd., founded in 2008, is a manufacturer specialized in the research, development and production of walkie-talkies. We are located in Guangzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

motorola PM400 digital mobile radio for car based sation walkie talkie radios

Thank you for choose our  motorola radios



-----------GUANGZHOU ETMY TRADE CO.,LTD.------------
ADD:133 Xinhen Market. Road3.Dashatou. Guangzhou City of China OR



            No.B270.First Floor.Haiyin Electrical Appliance Market.No.13.Road4.Guangzhou City of China
