Place of Origin Malaysia
Brand Name MOTOLORA
Model Number XPR8300
Type Other, repeater
Dimensions 132.6 mm H x 482.6 mm W x 296.5 mm
Frequency Range 136-174 MHz 403-470 MHz 450-512 MHz
Storage Channel 8
Talk Range 10-30km

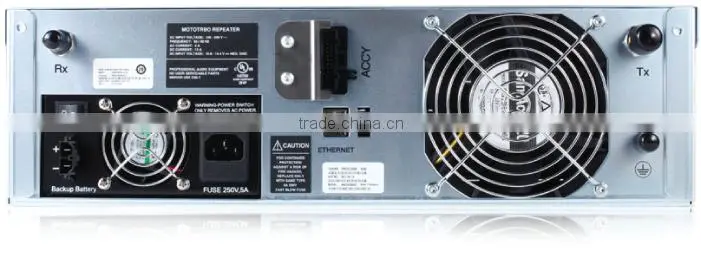

MOTOTRBO 45w XPR8300 high power repeater

Product Description

Features

Due to the FCC Narrowbanding mandate in the United States, product specifications and brochures for Motorola Solutions two-way radio products may indicate 25 kHz/12.5 kHz analog/digital operation which may not be the standard mode of operation at the time of shipment after Jan. 1st 2013.

Connect Plus
With extended coverage and expanded voice and data capability, this multi-site digital trunking solution enables you to accommodate the high volume, wide area communication that’s required to keep your mobile work teams connected.

Capacity Plus
A scalable, single-site trunking solution that enables over a thousand radio users to share business-critical voice and data communication on the same system.

IP Site Connect
Extend communication between multiple locations, create continuous wide area coverage or enhance single site coverage.

Reliable performance
Runs 100% continuous full-duty cycle at 40 W.

TDMA digital audio capability
Time-division mulitple-access (TDMA) provides twice the calling capacity for the price of one license.

Easy installation
Wall- or rack-mountable, with sturdy handles.

Transmit Interrupt
Enables intervention during conversations to deliver critical communication exactly when and where needed.

Dynamic Mixed Mode
Allows for automatic switching between analog and digital mode for mixed radio fleets



talkie walkie motorola transceiver 45w XPR8300 high power dmr repeatertalkie walkie motorola transceiver 45w XPR8300 high power dmr repeater



 GENERAL SPECIFICATIONS
XPR 8400
VHF UHF Band I UHF Band II
Channel Capacity 1
Typical RF Output:
Low power
High power
1-25 W
25-45 W
1-25 W
25-40 W
––
1-40 W
Frequency 136-174 MHz 403-470 MHz 450-512 MHz
Dimensions 5.22 in H x 19 in W x 11.67 in L
(132.6 mm H x 482.6 mm W x 296.5 mm L)
Weight 31 lbs. (14 kg)
Voltage Requirements 100-240 V AC (13.6 V DC)
Current Drain During standby:
Low power
High power
1 A (1 A DC typical)
1 A (1 A DC typical)
Current Drain During Transmit:
Low power
High power
3 A (7.5 A DC typical)
4 A (12 A DC typical)
Operating Temperature Range -30°C to +60°C
Max Duty Cycle 100%
FCC Description 1-25 W: ABZ99FT3026
25-45 W: ABZ99FT3025
1-25 W: ABZ99FT4026
25-40 W: ABZ99FT4025
1-40 W: ABZ99FT4027
IC Description 1-25 W: 109AB-99FT3026
25-45 W: 109AB-99FT3025
1-25 W: 109AB-99FT4026
25-40 W: 109AB-99FT4025
1-40 W: 109AB-99FT4027
RECEIVER
Frequencies 136-174 MHz 403-470 MHz 450-512 MHz
Channel spacing 12.5 kHz / 25 kHz*
Frequency stability (-30º C, +60º C, +25º C) +/- 0.5 ppm
Analog sensitivity 0.30 uV
(12dB sINAD) 0.22 uV (typical)
Digital sensitivity 5% BeR: 0.3 uV
Intermodulation (TIA603C) 78 dB 75 dB
Adjacent Channel selectivity: TIA603 65 dB @ 12.5 kHz, 80 dB @ 25 kHz* 65 dB @ 12.5 kHz, 75 dB @ 25 kHz*
TIA603C 50 dB @ 12.5 kHz, 80 dB @ 25 kHz* 50 dB @ 12.5 kHz, 75 dB @ 25 kHz*
spurious Rejection (TIA603C) 80 dB 75 dB
Audio Distortion @ Rated Audio 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 25 kHz*
Audio Response TIA603C
Conducted spurious emission (TIA603C) -57 dBm
TRANSMITTER
Frequencies 136-174 MHz 403-470 MHz 450-512 MHz
Channel spacing 12.5 kHz / 25 kHz*
Frequency stability (-30º C, +60º C, +25° C Ref.) +/- 0.5 ppm
Low power Output 1-25 W 1-25 W ––
High power Output 25-45 W 25-40 W 1-40 W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 5.0 kHz @ 25 kHz*
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 25 kHz*
Conducted / Radiated emission -36 dBm < 1 GHz
-30 dBm > 1 GHz
Adjacent Channel power 60 dB @ 12.5 kHz
70 dB @ 25 kHz*
Audio Response TIA603C
Audio Distortion 3%
FM Modulation 12.5 kHz: 11K0F3e
25 kHz*: 16K0F3e
4FsK Digital Modulation 12.5 kHz Data Only: 7K60FXD
12.5 kHz Data & Voice: 7K60FXe
Digital Vocoder Type AMBe +2™
Digital protocol eTsI Ts 102 361-1, -2, -3
