Hytera TC-780 fm Uhf &vhf Hot Sell Security Radio

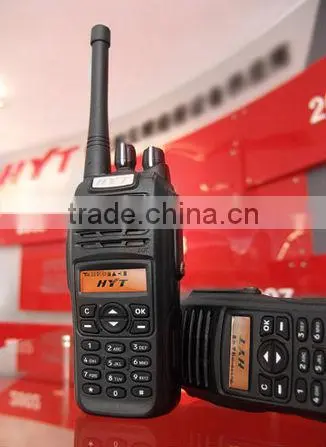

Hytera TC-780 fm Uhf &vhf Hot Sell Security Radio thumbnail-1
Hytera TC-780 fm Uhf &vhf Hot Sell Security Radio photo-1
US$ 210 - 260 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYT
Model Number:
TC-780
Contact Supplier Request Quote Chat Now
Guangzhou Etmy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYT
Model Number TC-780
Type Handheld
Dimensions 126.5*54*35mm
Frequency Range 136-174MHz 400-470MHz 350-390MHz
Storage Channel 16
Talk Range 5-8km

Specifications

TC-780 all frequency bandwidth and fully meet your needs for different frequency bands using.

Specification



Frequency range —— 136-174MHz 400-470MHz 350-390MHz



Channel number  ——256 channel



Channel spacing ——25 / 20 / 12.5KHz



Working voltage —— 7.4V DC



1700mAh battery ( lithium battery )



Cell average working time         —— ( 5-5-90 duty cycle ) about 14 hours



Frequency stability      —— ± 2.5ppm



Operating temperature range         —— - 25 degrees C to + 60 degrees C.



Antenna impedance   ——50 ohm



Dimensions ( height * width * Deep ) —— ( with battery, with 126.5 x 54 x 35mm antenna )



Weight ( with antenna and a battery )—— 340g





Transmission part



The output power —— 5W / 1W ( UHF / VHF )



Modulation of 16K than F3E / 8K than F3E



Clutter and harmonic  —— ( - 36dBm < 1GHz  / - 30dBm > 1GHz



                                                   ≤ 70dB ( 350-390MHz security standards )



Residual FM                            ≥  45 / 40dB



Audio distortion is less than or equal to 5% ( 350-390MHz security standards )





Receiving part



Sensitivity of less than or equal to 0.25 / 0.28 / V



Adjacent channel selectivity 70 / 60dB



Intermodulation 65dB / 70dB ( 350-390MHz security standards )



Spurious response inhibition of 70dB



Signal to noise ratio of 45 / 40dB



Rated audio-frequency output power 0.8W



Rated audio distortion is less than or equal to 5%



picture show





 hytera TC-780 fm uhf &vhf hot sell security radio

Onsite show



 hytera TC-780 fm uhf &vhf hot sell security radiohytera TC-780 fm uhf &vhf hot sell security radiohytera TC-780 fm uhf &vhf hot sell security radio



Welcome any questions and contact .
