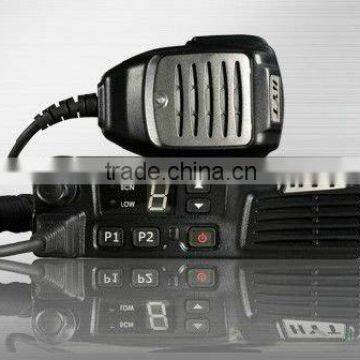

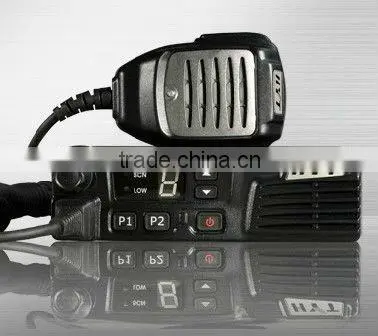

[Hot Sale] HYT TM-600 original car radio car intercom system

[Hot Sale] High Quality Professional HYT   TM-600 Two Way Radio

Specifications:

Basic information

Frequency range 136-174 MHz / 400-470 MHz / 450-500MHz / 350-400MHz

Channel number 8 ( TM-600 )

128 ( TM-610 )

Group number 16 ( TM-610 )

Channel spacing of 25 / 20 / 12.5KHz

Working voltage 13.6V DC + 15%

Electric

Flow

Arc

Consumption of current 0.5A.

Receive current < 2.0A

Emission current < 5A ( 5W ) / 8A ( 25W )

Frequency stability + 2.5ppm

Operating temperature range - 30 degrees to + 60 degrees C.

Antenna impedance 50 ohm

Size ( x width x depth high ) 43mm * 152mm * 125mm

The weight of 1 Kg

Transmission part

The output power of 5W / 25W

Modulation of 16K than F3E / 11K than F3E

Clutter and harmonic 75dB

Residual FM ( wide / narrow ) > 45dB ( 25 / 20KHz )

> 40dB ( 12.5KHz )

Audio distortion is less than or equal to 3%

Receiving part

Sensitivity ( w / / narrow ) is better than 0.28 UG / V

Adjacent channel selectivity ( wide / narrow ) 75 / 70 / 65dB

Intermodulation ( wide / narrow ) 75 / 70 / 65dB

Spurious response inhibition of 70dB

Signal to noise ratio ( w / / narrow ) > 45dB ( 25 / 20KHz ) > 40dB ( 12.5KHz )

Built in audio power output rating 5W ( audio distortion ( 3W < 5% ) audio distortion < 3% )

External audio output power ( 13W audio distortion < 5% ) 10W ( audio distortion < 3% )
